Topcon IS201 User Manual

88
4 STANDARD MEASUREMENT MODE
4.4.2 Setting of the Instrument Height / Reflector(Prism) Height
Measure the coordinates by entering the instrument height / reflector height, coordinates of unknown
point will be measured directly.

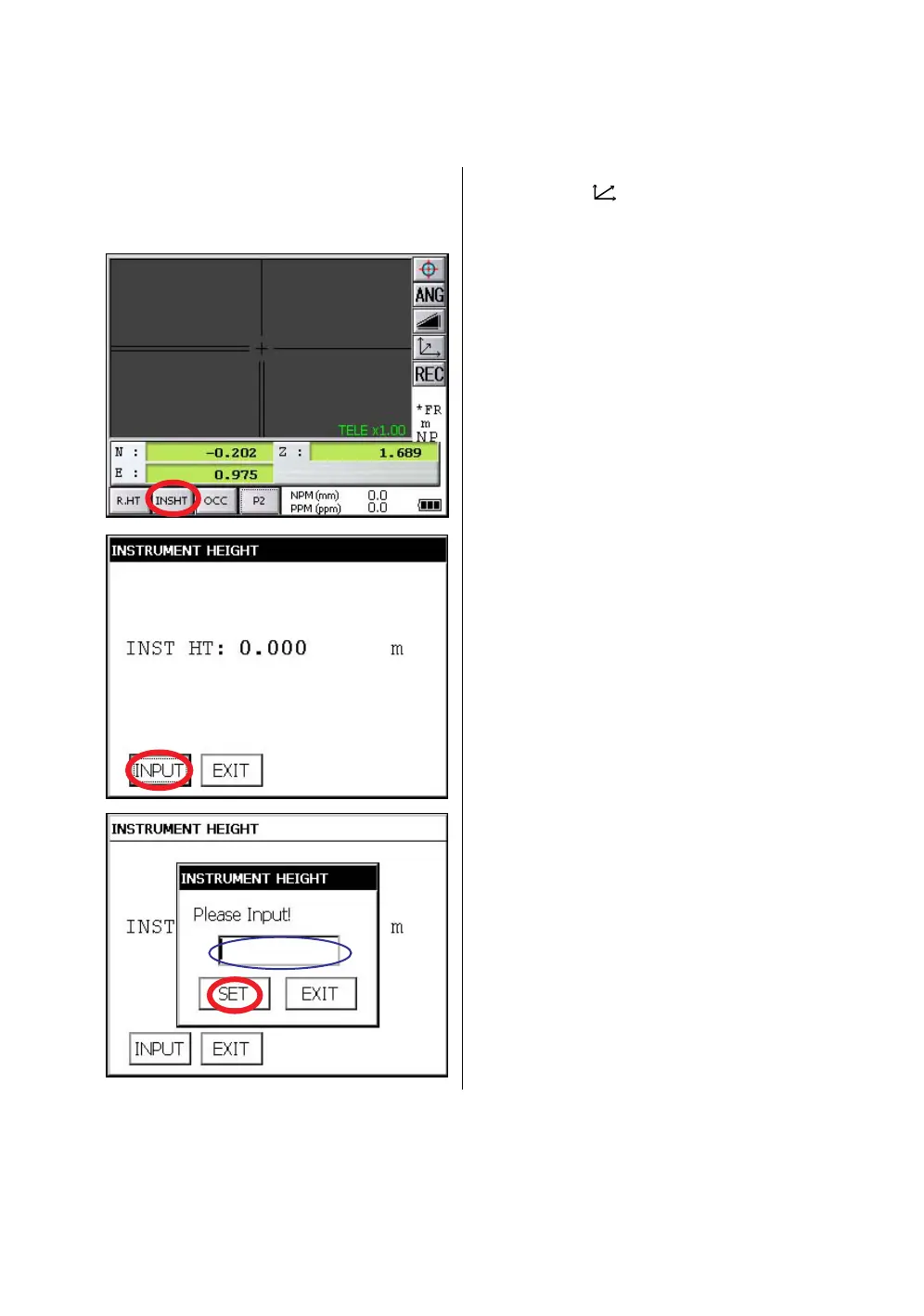

[Example] : Instrument height
Confirm the angle measurement mode.
1 Press the [ ] key.
2 Press the [P1] key to get on page 2.
3 Press the [INSHT] key .
The previous data will be shown.
4 Press the [INPUT] key.
5 Input instrument height, and press [SET]
key.*1)
6 Press the [EXIT] key.
The display returns to coordinate
measurement mode.
*1)To return to the previous mode, press the [EXIT] key.
