OPERATIONS IN USE

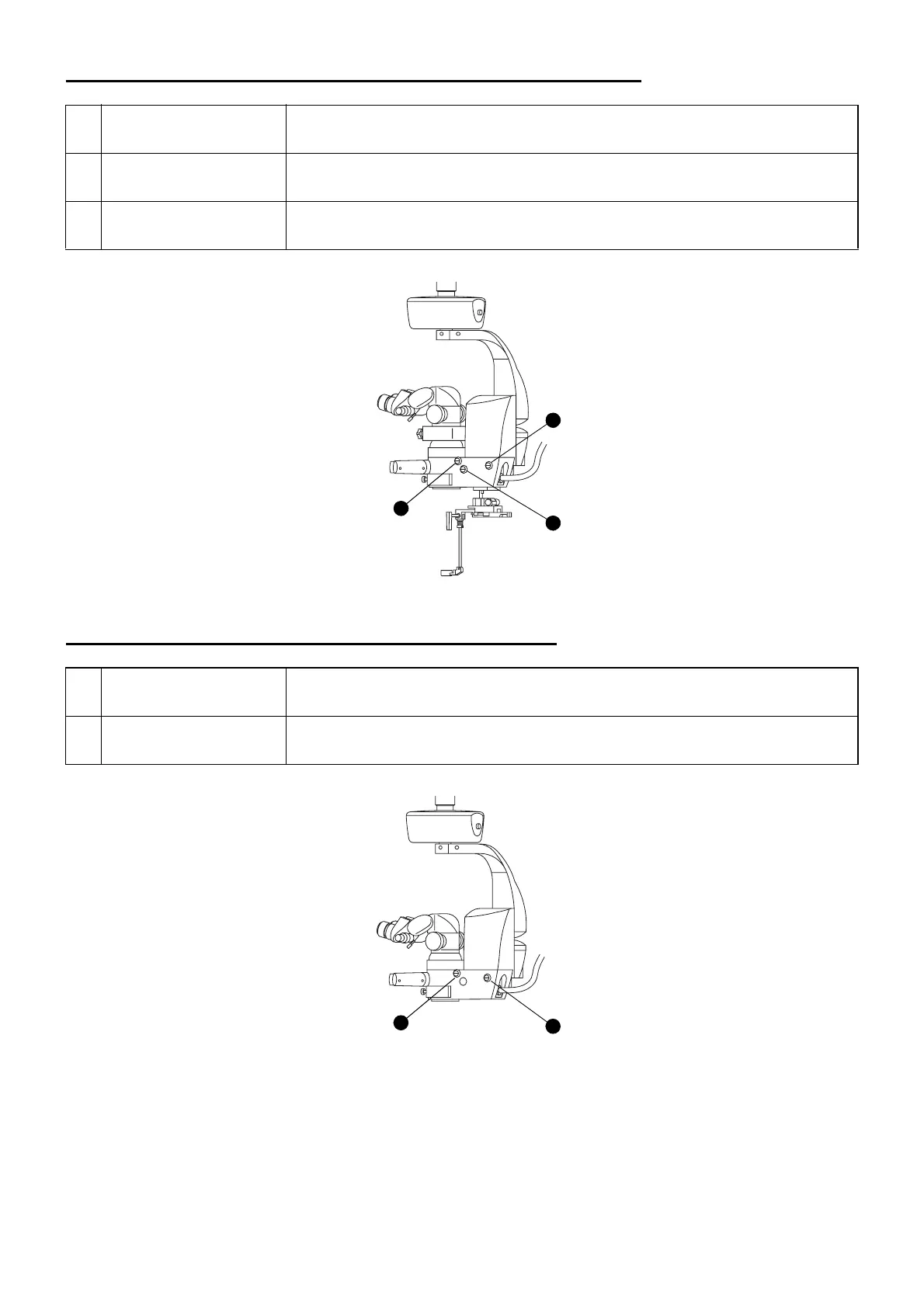

OPERATION OF MANUAL KNOBS: OFFISS, OFFISS Lite
OPERATION OF MANUAL KNOBS: Pro, Pro Lite
1 Zoom manual knob If the zoom mechanism is not working, adjust the zoom manual knob (in
an emergency) with a coin, etc.
2 Illumination angle
manual knob
If the illumination angle change mechanism is not working, adjust the
illumination angle manual knob (in an emergency) with a coin, etc.
3 Variable illumination
aperture manual knob
If the variable illumination aperture is not working, adjust the variable
illumination aperture manual knob (in an emergency) with a coin, etc.
1 Zoom manual knob If the zoom mechanism is not working, adjust the zoom manual knob (in
an emergency) with a coin, etc.
2 Illumination angle
manual knob
If the illumination angle change mechanism is not working, adjust the
illumination angle manual knob (in an emergency) with a coin, etc.
1
2
3
1
2
