PREPARATIONS BEFORE USE

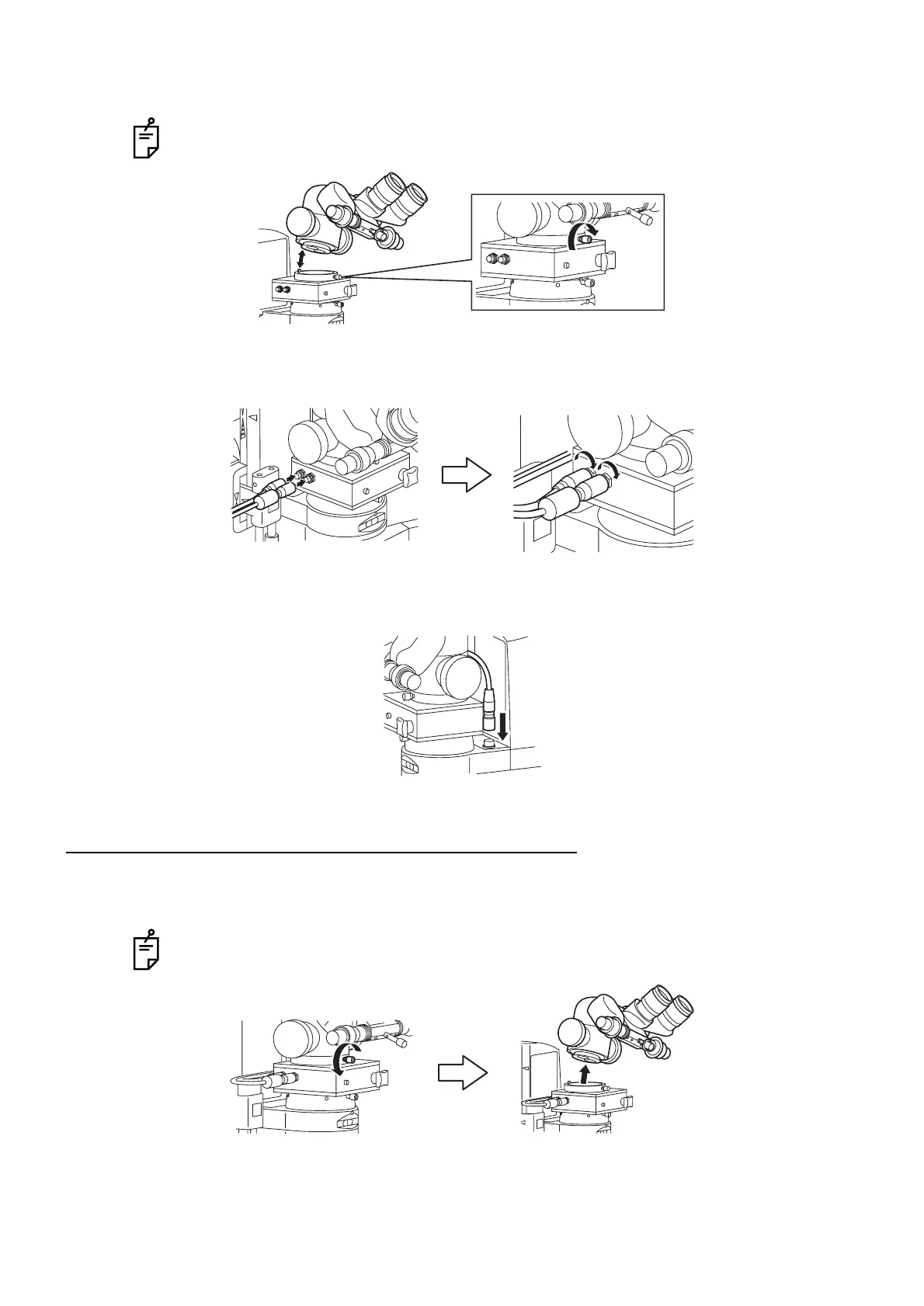

3 Fit the groove of the beam splitter to the pin on the top side of the inverter and tighten the
eyepiece lens/beam splitter fixing knob to fix the eyepiece lens/beam splitter.
We recommend using a hexagonal screwdriver.
4 Mount the connectors of the connecting cable onto the two connection sections (5 pins/3 pins) of
the inverter. Tighten the connector to its root securely and fix it with a ring.
5 Mount the connector on the opposite side of the connecting cable onto the connection section of
the lens barrel. Push in the connector to its root until it clicks, and fix it.
REMOVING THE INVERTER: OFFISS, OFFISS Lite
1 Loosen the eyepiece lens/beam splitter fixing knob on the inverter and then remove the eyepiece
lens/beam splitter from the inverter.
We recommend using a hexagonal screwdriver.
