Preparation
8
Preparation

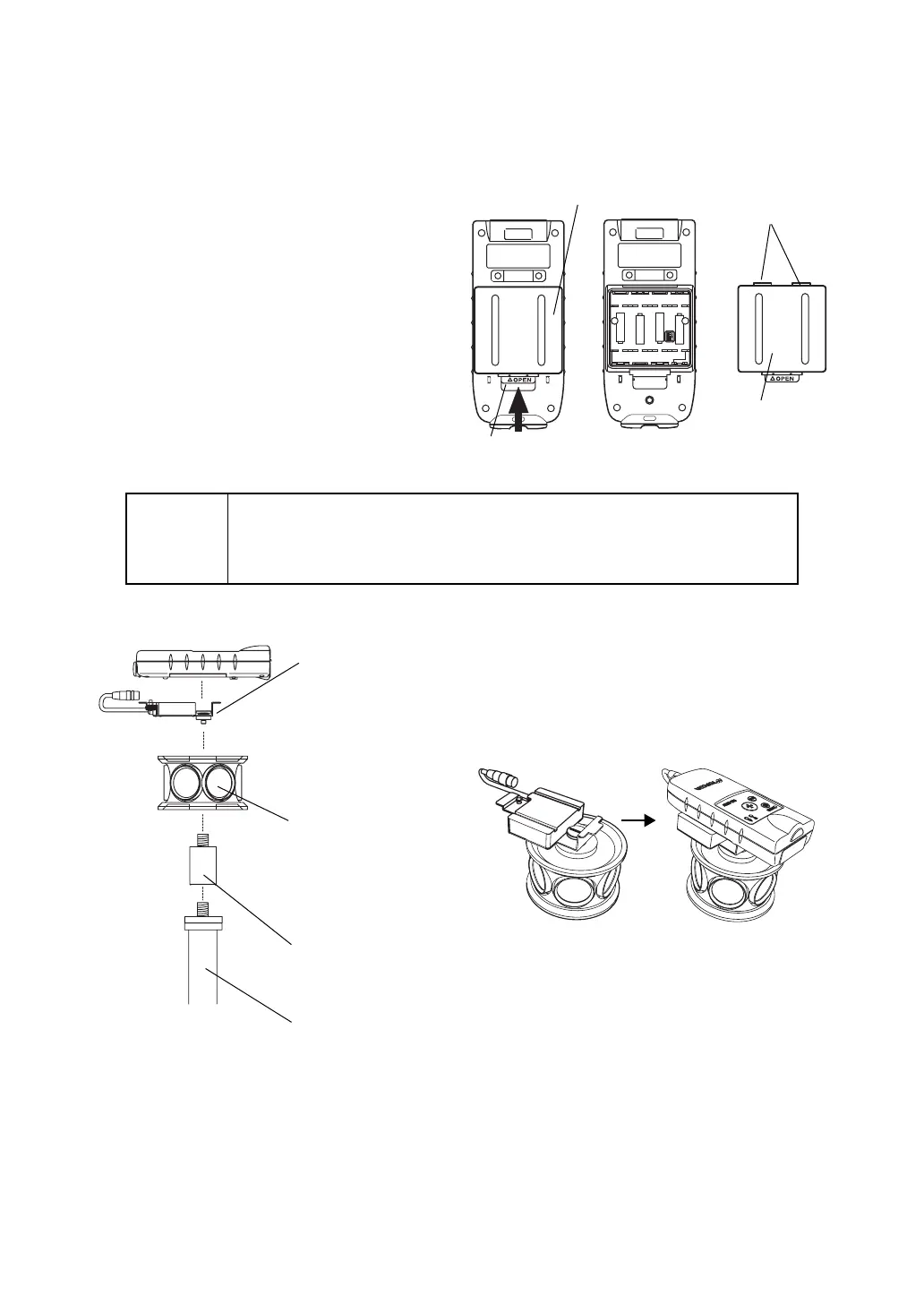

Battery installation and replacement
1
Push up the battery cover unhooking
lever and detach the cover.
2
Install four new “AA” size dry cells with
correct polar orientation as shown on
the side of the battery housing.
3
Insert the top lugs of battery cover and
press the cover until it is snapped shut.
Installing RC-2RW onto the prism unit A3/A3S
Note
● Replace all 4 batteries with new ones.
● Do not mix used and new batteries, and do not mix different types of batteries
together.
● Insert the batteries with the positive and negative terminals oriented correctly.
battery cover unhooking lever
Battery
cover
Battery cover
Lugs
Holder RC-2B for Prism unit
A3/A3S*
DM pole
(Optional accessory)
Prism unit A3/A3S
(Optional accessory)
Adaptor of Prism unit A3/A3S
(Optional accessory)
