Preparation
10
Communication between the RC-2W and a data collector

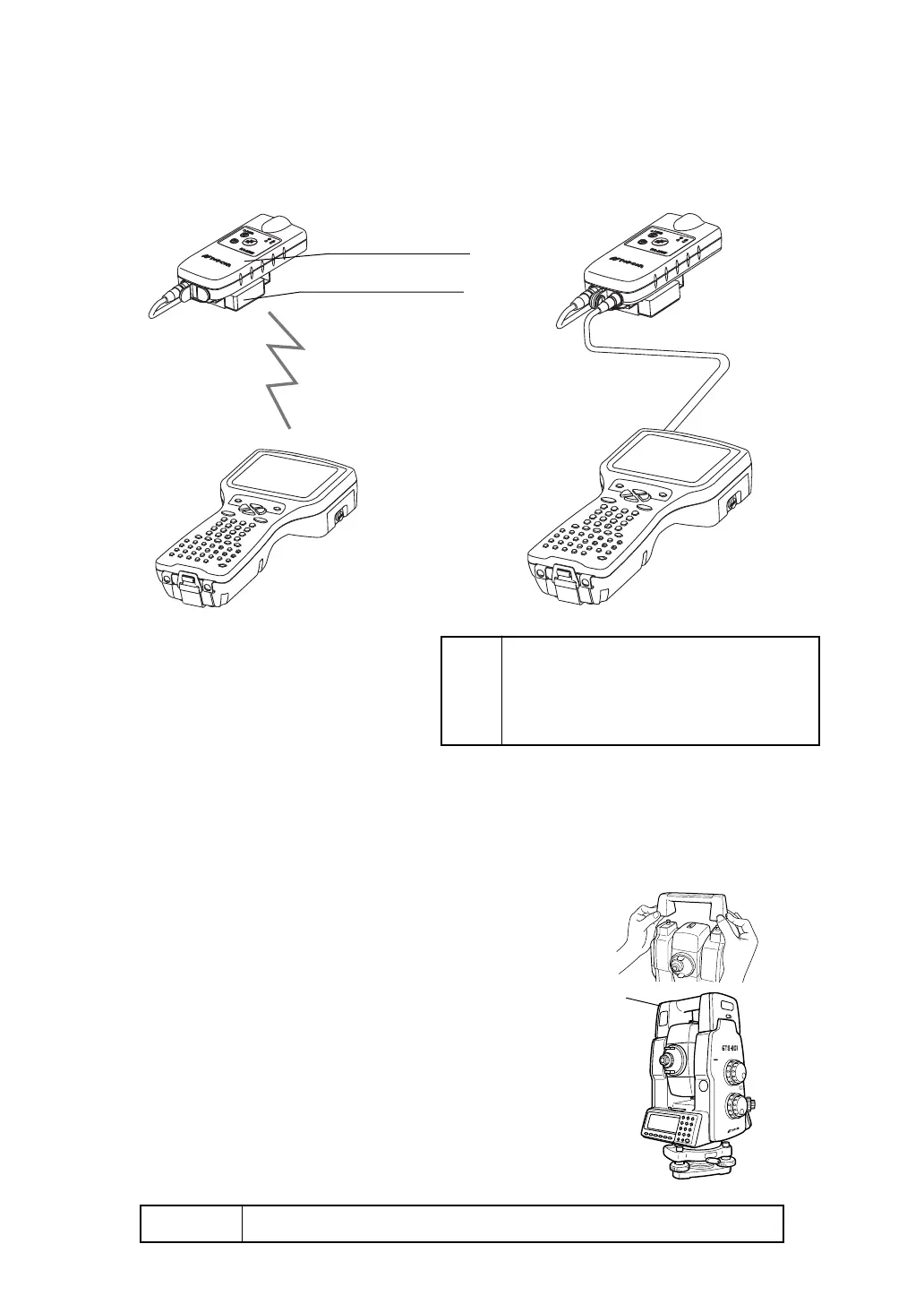

Mounting remote controller handle unit RC-2H onto the total station
Optical communications between total station and RC-2RW, become possible by installing remote
controller handle unit RC-2H onto the total station.
1
Dismount the handle from total station.
2
Mount RC-2H and secure it firmly with the fixing
screw.
Note
● Ensure that the power switch of total station is off when mounting RC-2H.
● For communicating between the FC-1000
and the RC-2W by means of Bluetooth,
connect the RC-2B’s connector to the
RC-2RW.
● For communicating between the FC-1000 (or
another data collector) and the RC-2W by
means of an RS-232C connector, connect the
cable to the RC-2RW’s RS-232C connector.
RC-2RW
RC-2B
Note
● In this case, it is not necessary to remove
the RC-2B’s connector. However, power
will be supplied to the RC-2B, so the
operating time will be almost equal to the
Bluetooth communication.
RC-2H
