Topcon RC-2W - Preparation: DM Pole Mounting

Preparation
9

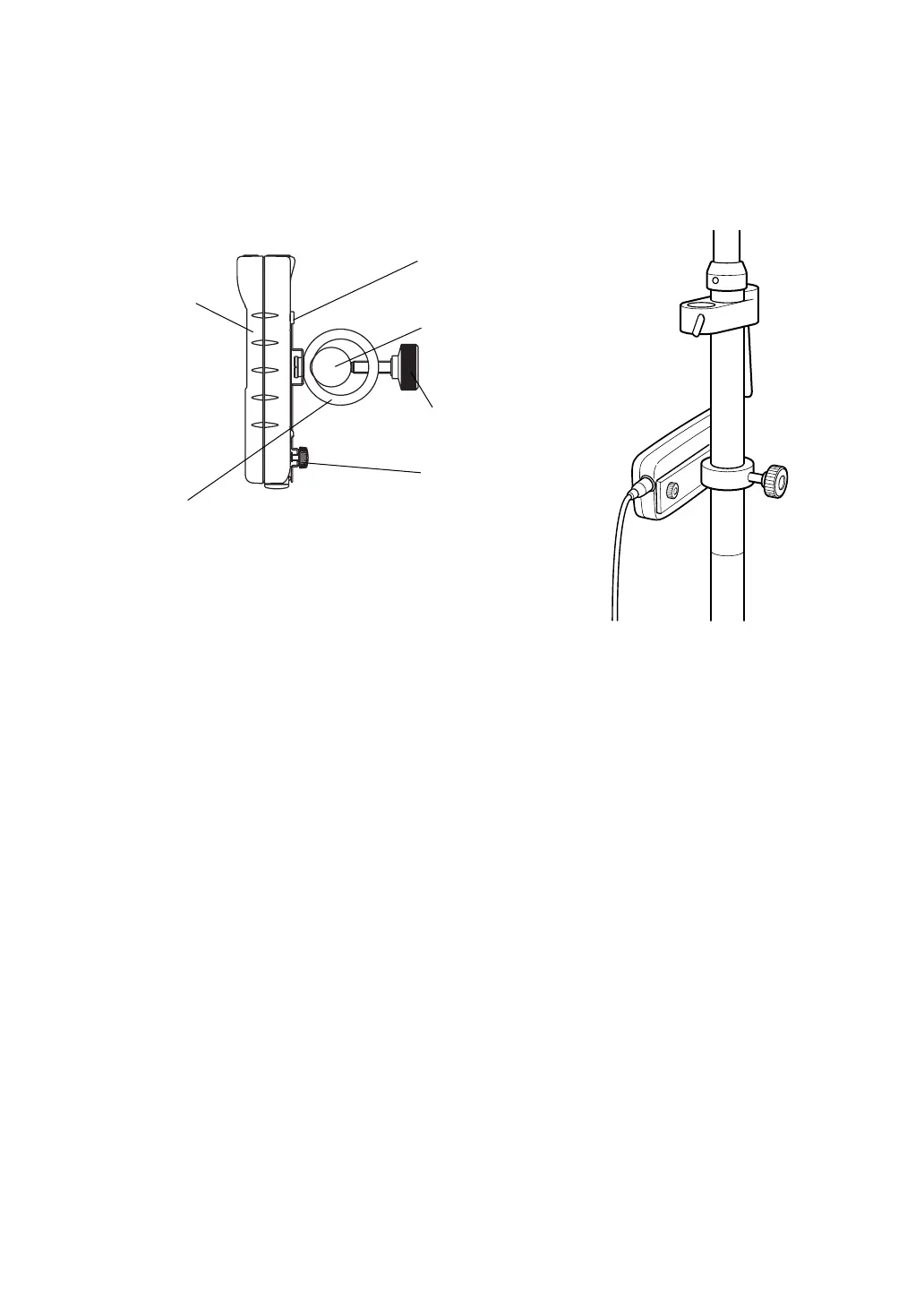

Installing RC-2RW onto the DM pole
RC-2RW can be installed onto the DM pole as shown below:.
1
Insert the DM pole into the holder and secure the holder by fastening the pole fixing screw.
2 Hook the RC-2RW to the hook of the holder and tighten the RC-2RW fixing screw of the
holder.
DM pole
Pole fixing screw
Holder for DM pole*
RC-2RW fixing screw
Hook for holder
* Holder for DM pole is an optional accessory.
RC-2RW
