Nomenclature and Functions
7

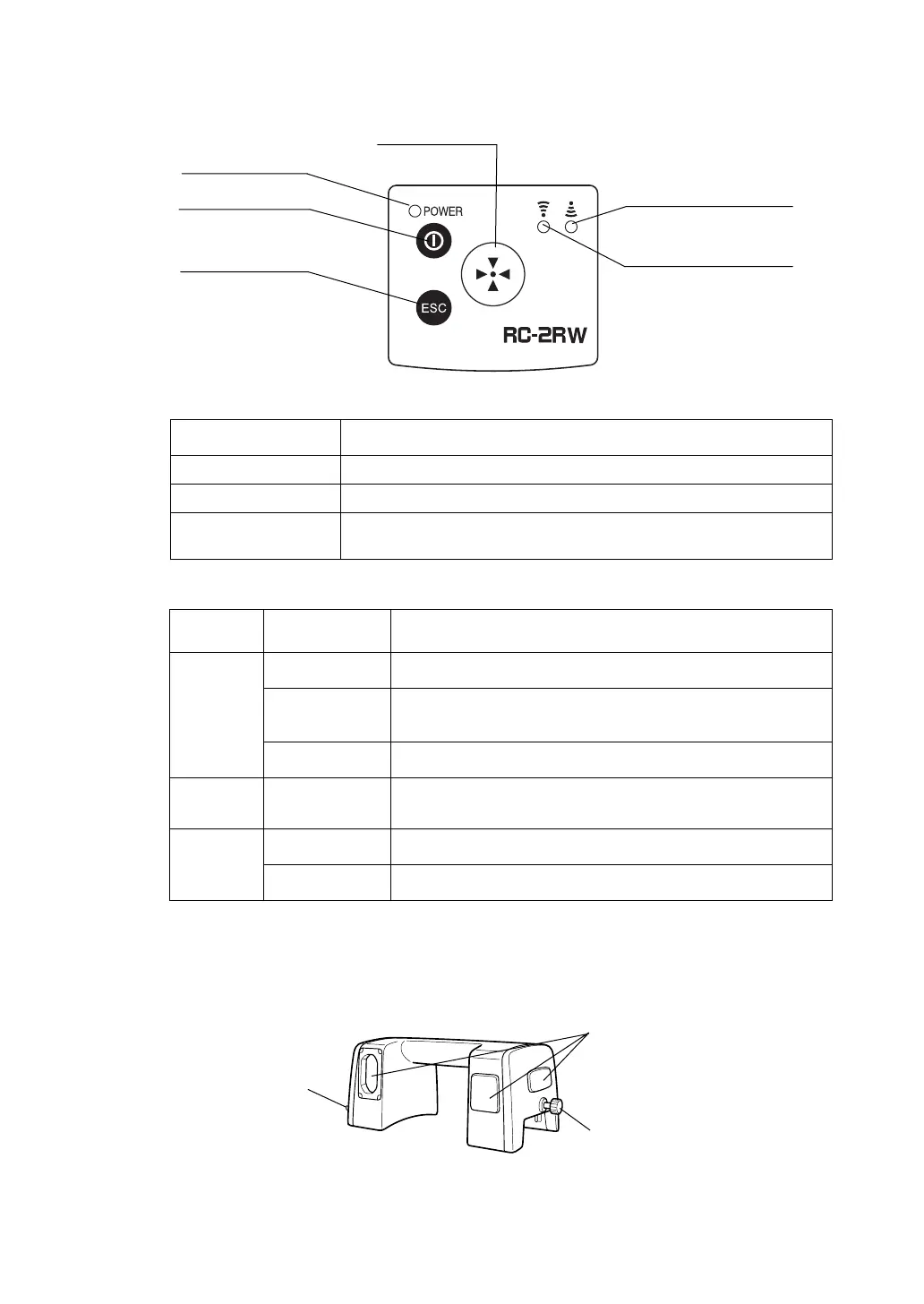

Panel
LEDs
Remote Controller Handle Unit RC-2H
GTS-800A/810A/820A, GPT-8000A series total station requires RC-2H to enable turn-round
motions and optical communications with RC-2RW.
GTS-800A/810A/820A, GPT-8000A series carrying case is large enough to house the total station
fitted with RC-2H.
Key
Function
Power switch
ON/OFF of power of the RC-2RW.
Tu r n-round motion key Total station will be in turn-round motion.
Escape key
Cancels the emitting laser for turn-round motion. The total station will stop
the turn-round operation after continuing the motion for a while.
LED Status Contents
Power
LED
On solid
The power of RC-2RW is ON.
Flash
The battery remaining of RC-2RW is low.
Replace the batteries with new ones.
Off
The power is OFF
Receiving
LED
On solid
RC-2RW is in the middle of data reception.
Sending
LED
On solid
RC-2RW is in the middle of data transmission.
Flash
RC-2RW is in the middle of turn-round command transmission.
Power switch
Turn-round key
Escape key
Power LED
Receiving LED
Sending LED
Unlatching button
RC-2H
Detectors
(at five points)
Fixing screw
To Next Page
