Setting Slopes

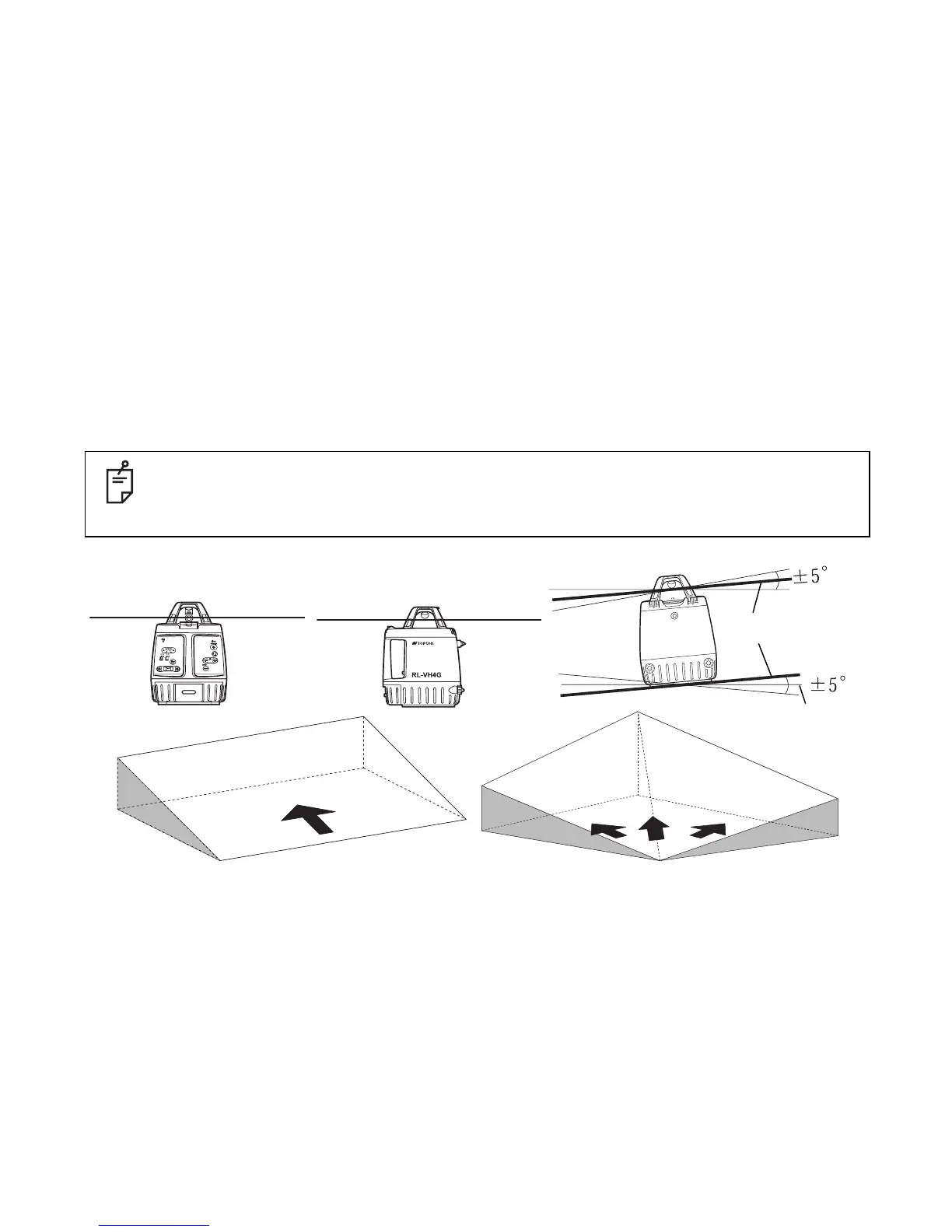

The laser beam can be manually sloped in either the X or Y axis (single slope) or both axes
(compound slope).
With the inclination of the instrument as the standard, laser beam can be sloped within
the range of ±5° up or down.
• The standard for the inclination is the inclination of the instrument, not that of the
rotating head immediately after the auto-leveling.
• This mode can be used with the Remote Controller RC-30.
X axis
Y axis
Single Axis
Dual Axes
Compound slope
Horizontal
Inclination of the
instrument
