TRL-35 Configuration
TRL-35 Operator’s Manual
2-8

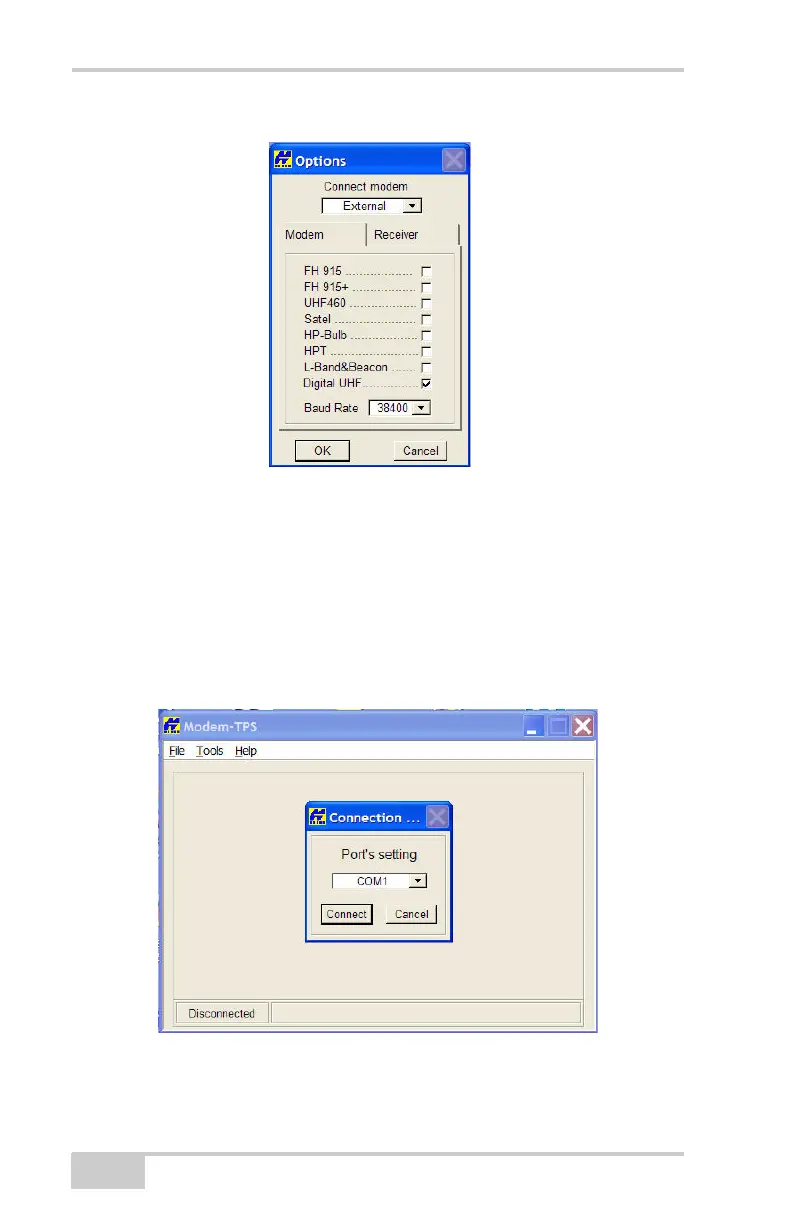

Figure 2-8. Tools-Options Screen
6. On the Options screen, change the Connect modem field to
External, and change the Baud Rate field to 38400.
7. Confirm that all the applicable radio modem options have a check
mark, as shown in Figure 2-8. Once configured, click OK.
8. Go to FileConnect in Modem-TPS and choose the COM Port
that the TRL-35 connects to on your computer. Then click
Connect.
Figure 2-9. Selecting the COM Port to which the TRL-35 Connects
