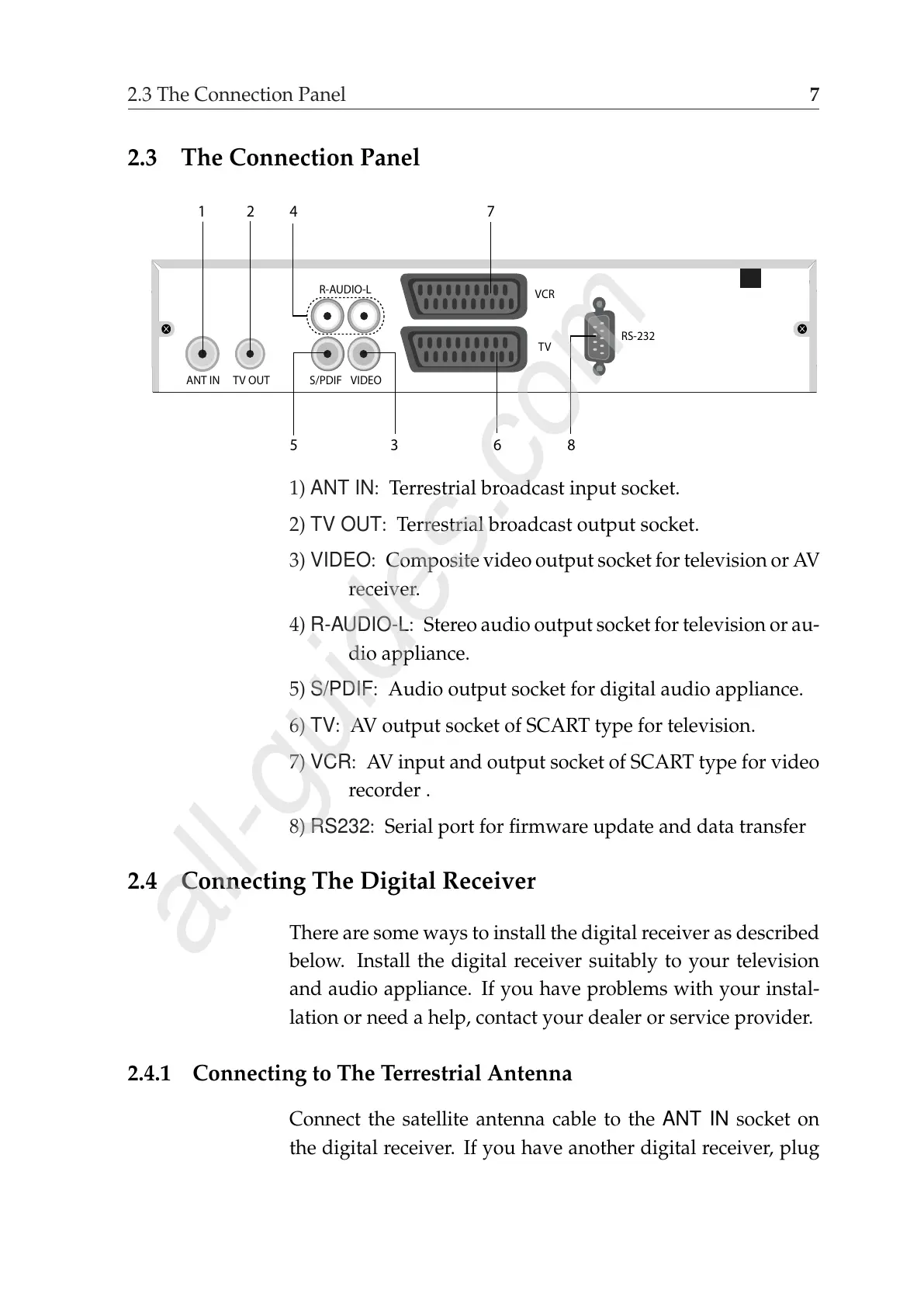

1) ANT IN: Terrestrial broadcast input socket.
2) TV OUT: Terrestrial broadcast output socket.
3) VIDEO: Composite video output socket for television or AV
receiver.
4) R-AUDIO-L: Stereo audio output socket for television or au-
dio appliance.
5) S/PDIF: Audio output socket for digital audio appliance.
6) TV: AV output socket of SCART type for television.
7) VCR: AV input and output socket of SCART type for video
recorder .
8) RS232: Serial port for firmware update and data transfer
2.4 Connecting The Digital Receiver
There are some ways to install the digital receiver as described
below. Install the digital receiver suitably to your television
and audio appliance. If you have problems with your instal-
lation or need a help, contact your dealer or service provider.
2.4.1 Connecting to The Terrestrial Antenna
Connect the satellite antenna cable to the ANT IN socket on
the digital receiver. If you have another digital receiver, plug
