32 Information

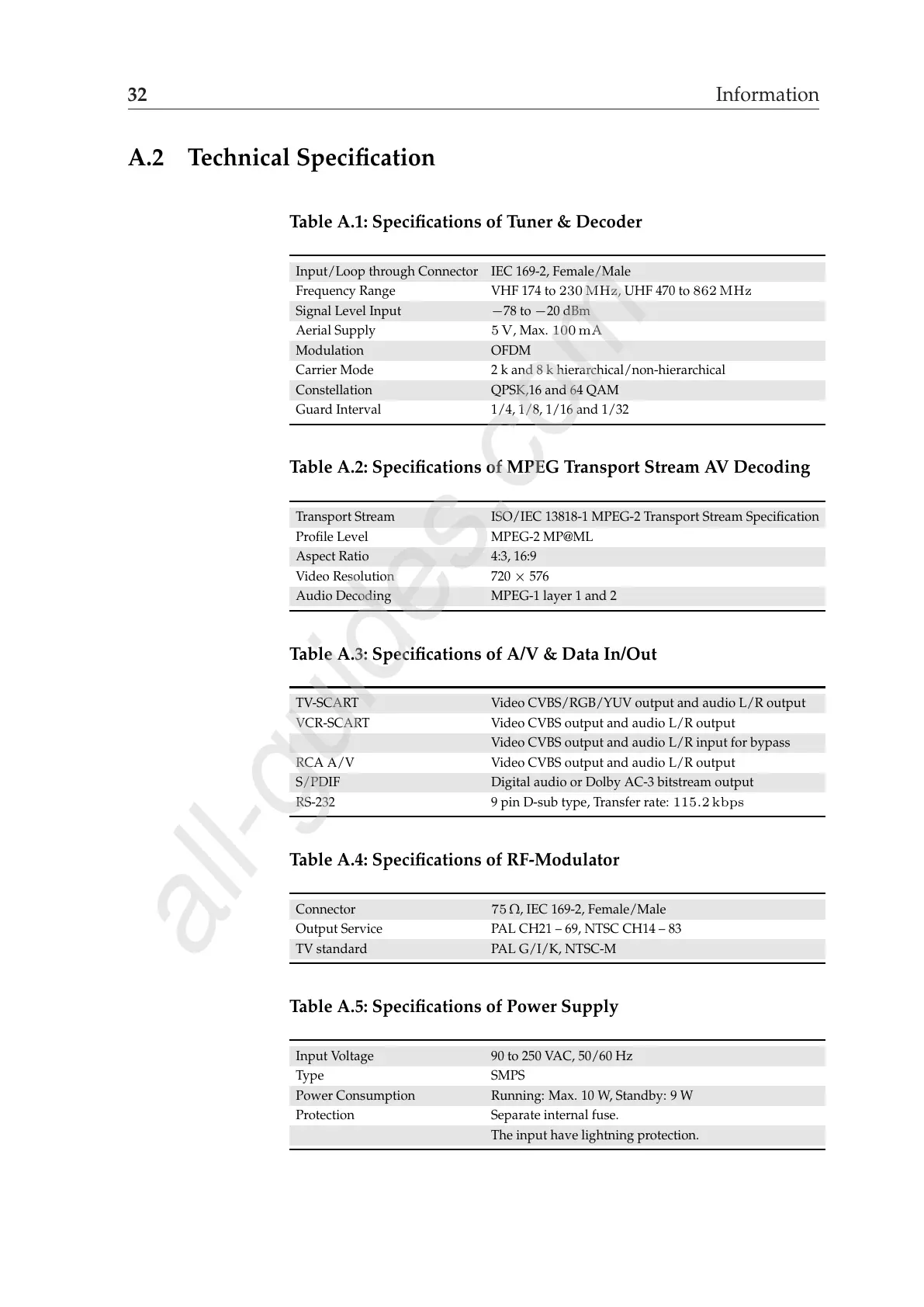

A.2 Technical Specification
Table A.1: Specifications of Tuner & Decoder
Input/Loop through Connector IEC 169-2, Female/Male
Frequency Range VHF 174 to 230 MHz, UHF 470 to 862 MHz
Signal Level Input −78 to −20 dBm
Aerial Supply 5 V, Max. 100 mA
Modulation OFDM
Carrier Mode 2 k and 8 k hierarchical/non-hierarchical
Constellation QPSK,16 and 64 QAM
Guard Interval 1/4, 1/8, 1/16 and 1/32
Table A.2: Specifications of MPEG Transport Stream AV Decoding
Transport Stream ISO/IEC 13818-1 MPEG-2 Transport Stream Specification
Profile Level MPEG-2 MP@ML
Aspect Ratio 4:3, 16:9
Video Resolution 720 × 576
Audio Decoding MPEG-1 layer 1 and 2
Table A.3: Specifications of A/V & Data In/Out
TV-SCART Video CVBS/RGB/YUV output and audio L/R output
VCR-SCART Video CVBS output and audio L/R output
Video CVBS output and audio L/R input for bypass
RCA A/V Video CVBS output and audio L/R output
S/PDIF Digital audio or Dolby AC-3 bitstream output
RS-232 9 pin D-sub type, Transfer rate: 115.2 kbps
Table A.4: Specifications of RF-Modulator
Connector 75 Ω, IEC 169-2, Female/Male
Output Service PAL CH21 – 69, NTSC CH14 – 83
TV standard PAL G/I/K, NTSC-M
Table A.5: Specifications of Power Supply
Input Voltage 90 to 250 VAC, 50/60 Hz
Type SMPS
Power Consumption Running: Max. 10 W, Standby: 9 W
Protection Separate internal fuse.
The input have lightning protection.
