TorcUP AP1000 - TECHNICAL SPECIFICATIONS; WORKING PRESSURE

WARNING: Wear proper personal protective gear when operating hydraulic equipment.
DANGER: To avoid personal injury, keep hands and feet away from work-piece during operation.
WARNING: Do not exceed equipment ratings. Overloading causes equipment failure and possible
personal injury. The pump tools are designed for a maximum pressure of 10,000 PSI (700kg/cm
2
).
Do not connect a jack or cylinder to a pump. Never set the relief valve to a higher pressure than the
maximum rated pressure of the pump. Higher settings may result in equipment damage and/or per-
sonal injury.
WARNING: The system operating pressure must not exceed the pressure rating of the lowest rated
component in the system. Install pressure gauges in the system to monitor operating pressure.
CAUTION: Avoid damaging hydraulic hose. Avoid sharp bends and kinks when routing hydraulic
hoses. Using a bent or kinked hose will cause severe back-pressure. Sharp bends and kinks will inter-
nally damage the hose, leading to premature hose failure. Do not drop heavy objects on hose. A
sharp
impact may cause internal damage to hose wire strands. Applying pressure to a damaged hose may
cause it to rupture.
IMPORTANT: Do not lift hydraulic equipment by the hose or swivel couplers. Use the carrying handle
or other means of safe transport.
CAUTION: Keep hydraulic equipment away from ames and heat. Excessive heat will soften seals,
resulting in uid leaks. Heat also weakens hose materials. For optimum performance do not expose
equipment to temperatures of 65° C (170° F) or higher. Protect hoses and cylinders from weld spatter.
SAFE AND CORRECT USE

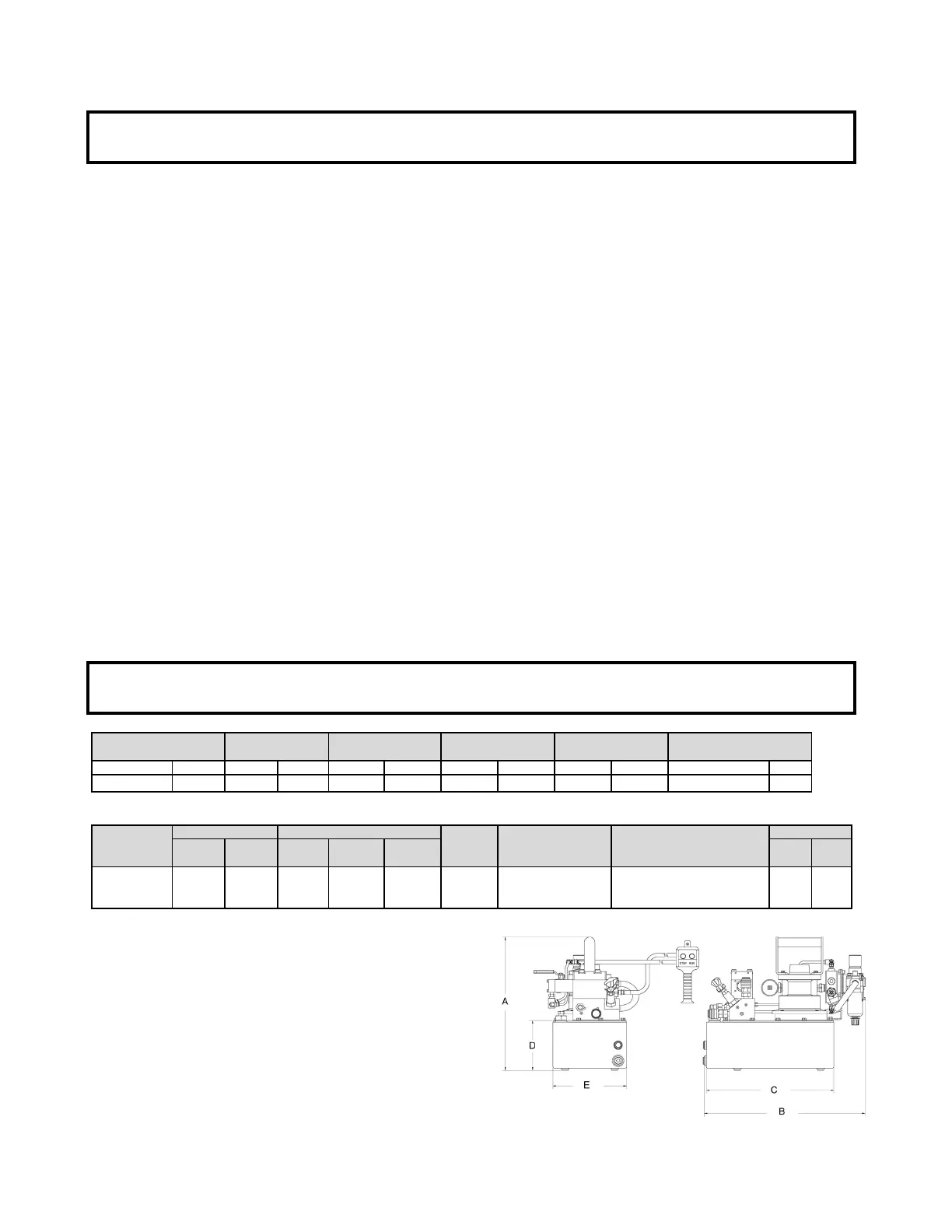

TECHNICAL SPECIFICATIONS
WORKING PRESSURE
The pump’s maximum working pressure is 10,000
PSI (700kg/cm
2
). Make sure that all hydraulic
equipment such as tools, hoses, etc. used with
this pump are rated at 10,000 PSI (700kg/cm
2
)
operating pressure.
(Gal.) (litre) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm)
1.5 5,7 15.13 384,3 19.09 484.88 15.89 406.48 5.94 150.88 8.75 222.25
Weight is without oil.
AP1000 1.5 5,7 Torque
Auto
Retract
Advance/
Retract
Motor/
Solenoid
Control
63.75 28,92
Usable Reservoir
Capacity
A B C E
Model
Number
Gal. Litre
Pendant
FunctionStyleModel
Reservoir Capacity
Valve
Kglbs.
Weight
D
700 cu. in./min. @1,100 psi
55 cu.in./min.@10,000 psi
4 HP @ 100 psi/
60cfm
Motor Specification Flow Rate
5
