TorcUP AP1000 - INSTALL VENT PLUG; ADDING OIL

LUBRICATION
TECHNICAL SPECIFICATIONS
*As a “rule of thumb” oil should be lled about an inch below the
top of the reservoir when the unit is powered down and all
connected tools or cylinders are retracted.

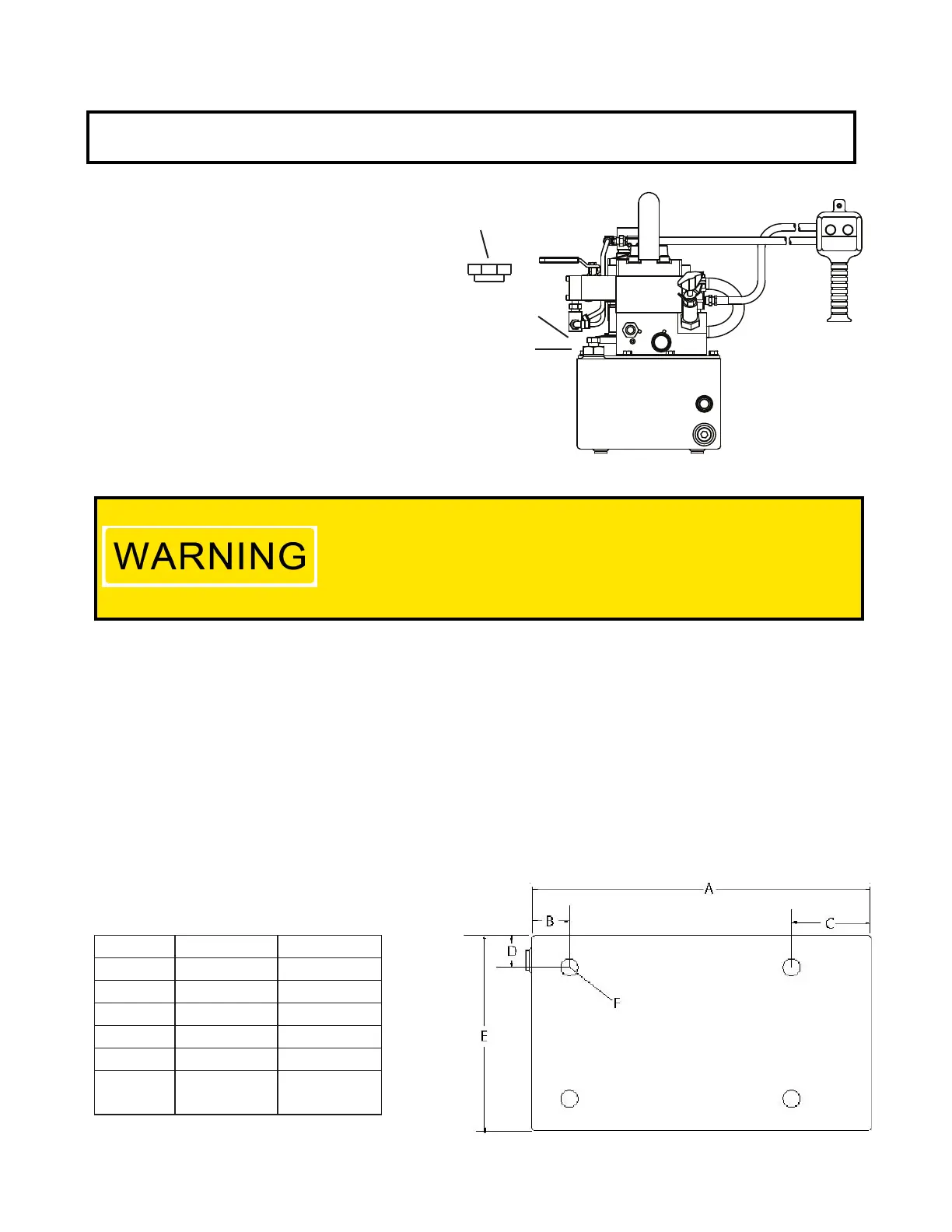

INSTALL VENT PLUG
Remove SHIPPING PLUG (A) and install
VENT PLUG (B) into cover plate.
ADDING OIL
Remove OIL FILLER CAP (C) and add TorcUP Inc.
hydraulic oil into reservoir. Oil level should not
exceed 1” from the reservoir cover.
A
B
C
Loose or improperly threaded ttings can be potentially dangerous if pressurized;
however, severe over tightening can cause premature thread failure. Fittings need
to be tightened secure & leak free. Never hold or stand directly in line with any
hydraulic connections while pressurizing. Never grab, touch or in any way come in
contact with a hydraulic pressure leak. Escaping oil can penetrate the skin and a
serious injury can result.
CONNECTING HYDRAULIC TOOLS
Use only tools, hoses and accessories rated at 10,000 PSI (700kg/cm
2
). When making connections
with quick disconnect couplings, make sure the couplings are fully engaged. Threaded connections
such as ttings, gauges, etc. must be securely tightened and leak free. Use 1.5 wraps of Teon tape (or
suitable thread sealant) on all threads, leaving the rst complete thread free of tape to ensure no foreign
matter enters the hydraulic circuit.
CAUTION: Do not subject the hose to potential hazards such as sharp surfaces, extreme heat or heavy
impact. Do not allow the hose to kink or twist. Inspect each hose for wear before it is used.
PUMP MOUNTING
Refer to the chart for mounting dimensions to
secure the pump to a xed surface.
1.5 gal (6L) 2.5 gal. (10L)
A 15.13 17
B 3.68 4.75
C 1.57 2.37
D 1.43 1.93
E 8.75 9.75
F 1/4-20OUNC
(4 PLATES)
1/4-20OUNC
(4 PLATES)
6
