Tork EWZ201C User Manual

7
5.3 ADDITIONAL HOLIDAY ENTRIES.
Repeat steps 5.1 and 5.2 for all holidays. Press MODE when
holidays are complete.
6.0 SCHEDULE SET MODE.
Press MODE until display shows:
EWZ201C in optional 1 channel or momentary mode or
EWZ101C allows only 1 channel for programming. For
EWZ201C in 2 channel mode, press CH1/CH2 to select
channel 1 or 2 for programming.
6.1 SETTING HOURS, MINUTES AND DAYS.
a. Press HOUR and MIN to set desired time.
b. Press EVENT to set desired event (ON or OFF).

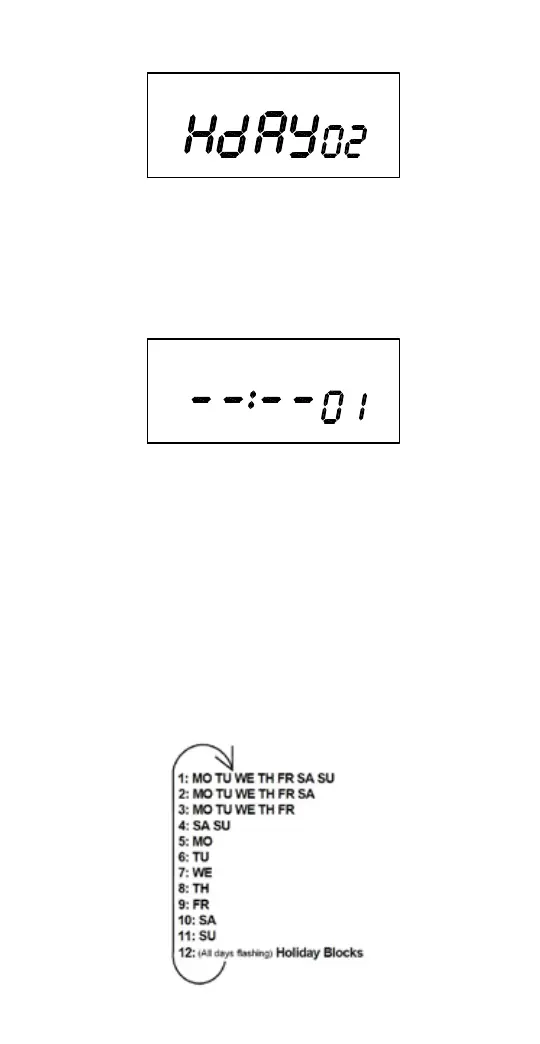

c. Press DAY to change the selected day groups from all
days MO to SU.
A schedule with day group 12 (all days flashing) will be
executed on the Holiday block dates selected in section 5.
ON
SCH

Tork EWZ201C Specifications

General

Type	Digital Timer
Voltage	120-277 VAC
Amperage	20A
Number of Channels	1
Backup	Battery backup
Contact Type	SPDT
Display	LCD
Programming	7-Day
Horsepower	1 HP
Mounting	Surface
Operating Modes	Automatic, Manual
Enclosure	NEMA 1
