Figure 11. manual oiler installed.

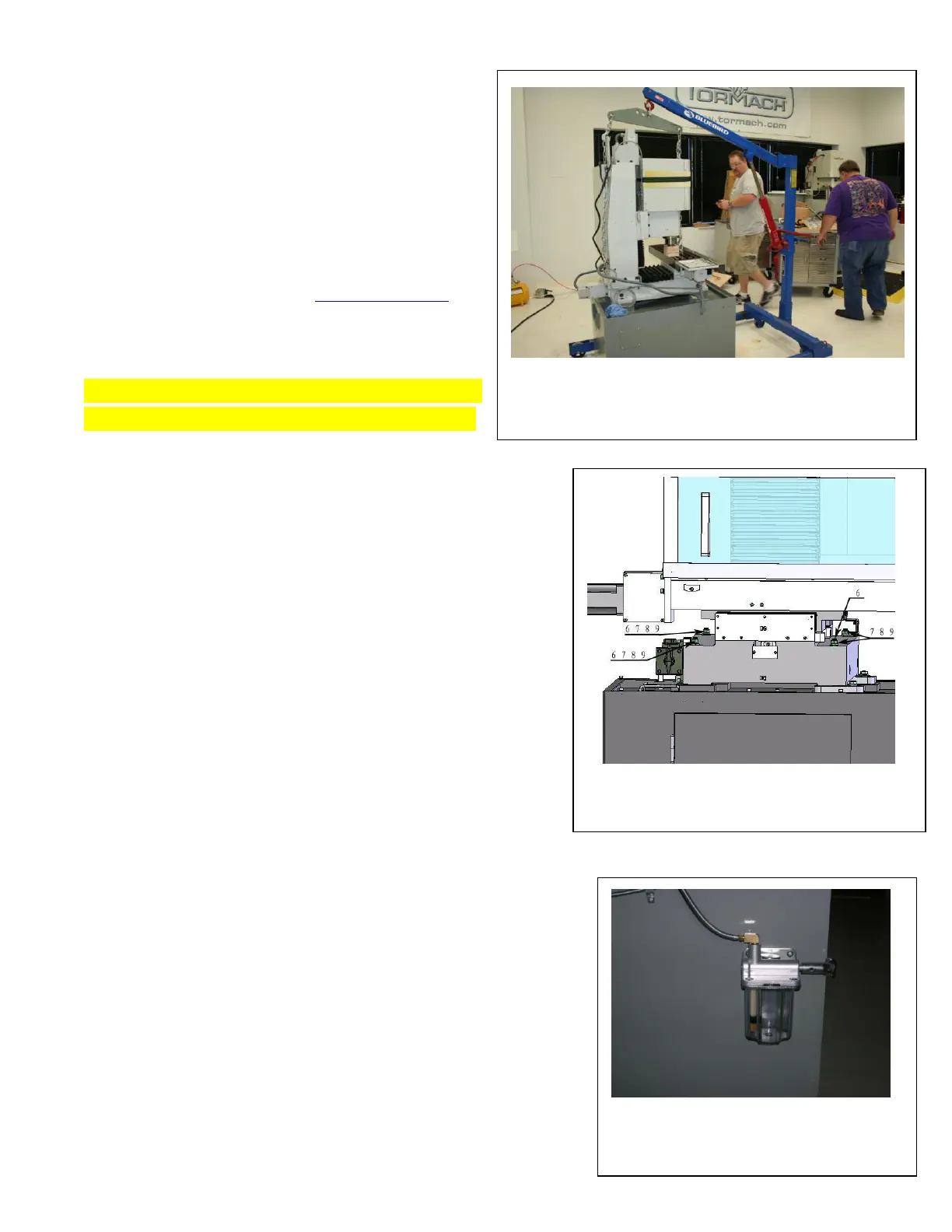

4. Lift the mill on to the stand
Prior to placing the mill on the stand apply a thin coat of
oil or grease to the 4 machine mounting pads to prevent
rust. Next carefully lift the mill onto the stand. Tormach
recommends using the Lifting Bar (PN 31446) or the
moving kit (PN 31333) with a crane, engine hoist or
forklift (Figure 9.) Please refer to www.tormach.com for
more information and video of proper use of the moving
kit.
CAUTION! The mill and stand are heavy. Use care and
proper procedures when lifting the mill onto the stand.
5. Bolt the PCNC on the stand
Once the mill has been safely placed on the landing pads of the
stand, attach the mill to the stand with the 4 mounting studs (#6
figure 10.) (M12 x 130), lock washers (#7), washers (#8) and nuts
(#9) as shown in figure 10. Do not tighten any of the nuts
completely until you have started each of them, as it may be
necessary to reposition the mill slightly to achieve alignment.
5. Installing oil pump
The holes for the manual oiler are drilled and taped for
easy mounting as shown in figure11. If you purchased
the automatic oiler (PN 31373) please refer to the
directions that came with it.
Figure 10. Machine mounting hardware.
