Next install the stainless steel wear guard across the front of the chip
tray as shown in Figure 14.
7. Installing the back splash
The guard with the back access panel goes behind the
machine control panel. Caulking is recommended for the
splash guard bolts, but not for the joint between the splash
guards and the coolant tray.
8. Coolant System Installation
Coolant tank is placed behind PCNC 770 with the exit trough
directing coolant into tank as shown in figure 16.
Make sure to check alignment to avoid coolant spills.

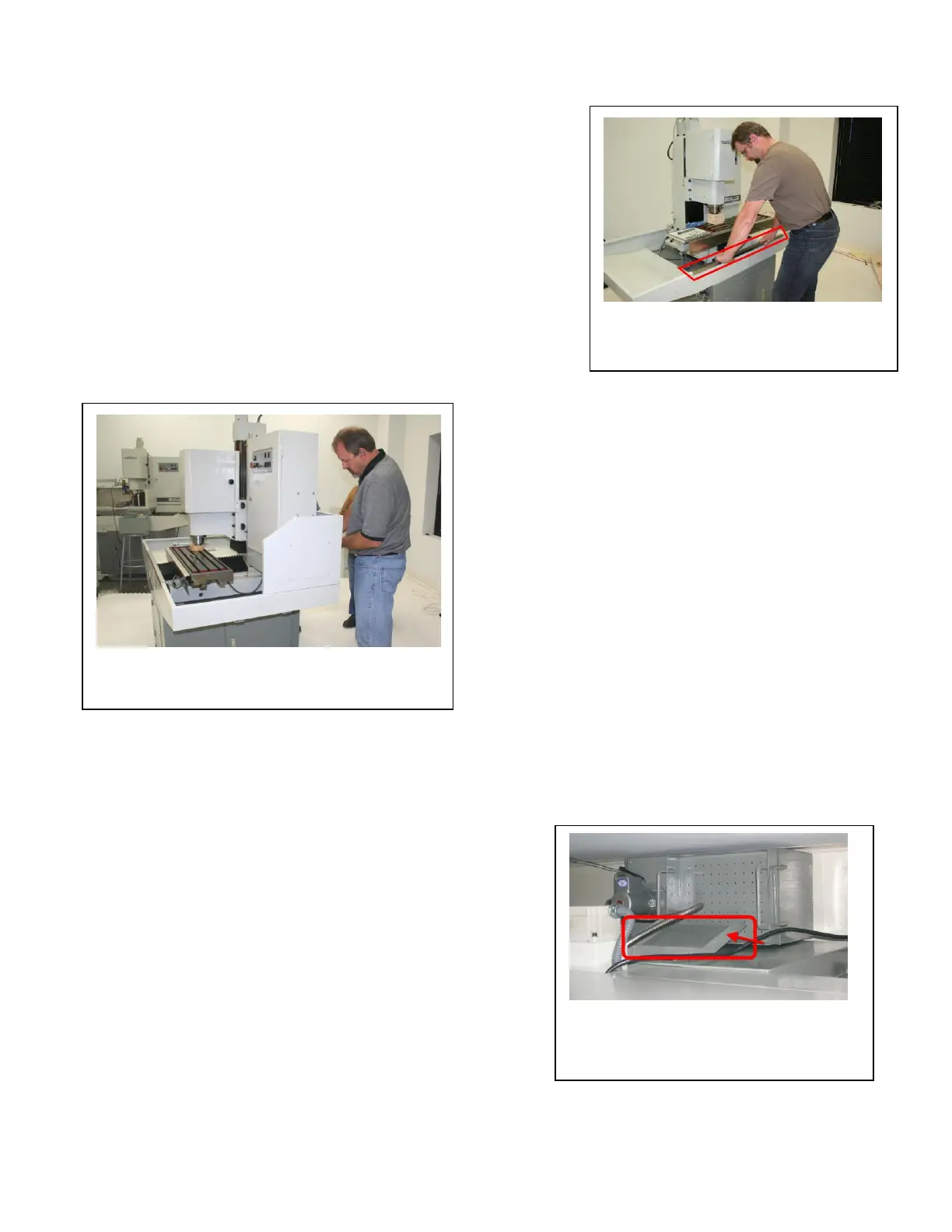

Figure 14. Stainless steel wear guard.
Figure 15. Back splash guard installation.
Figure 16.Coolant tank and exit trough
