8 Instructions for Use iMotion 1302.KI T-1737 e
3 Product Description

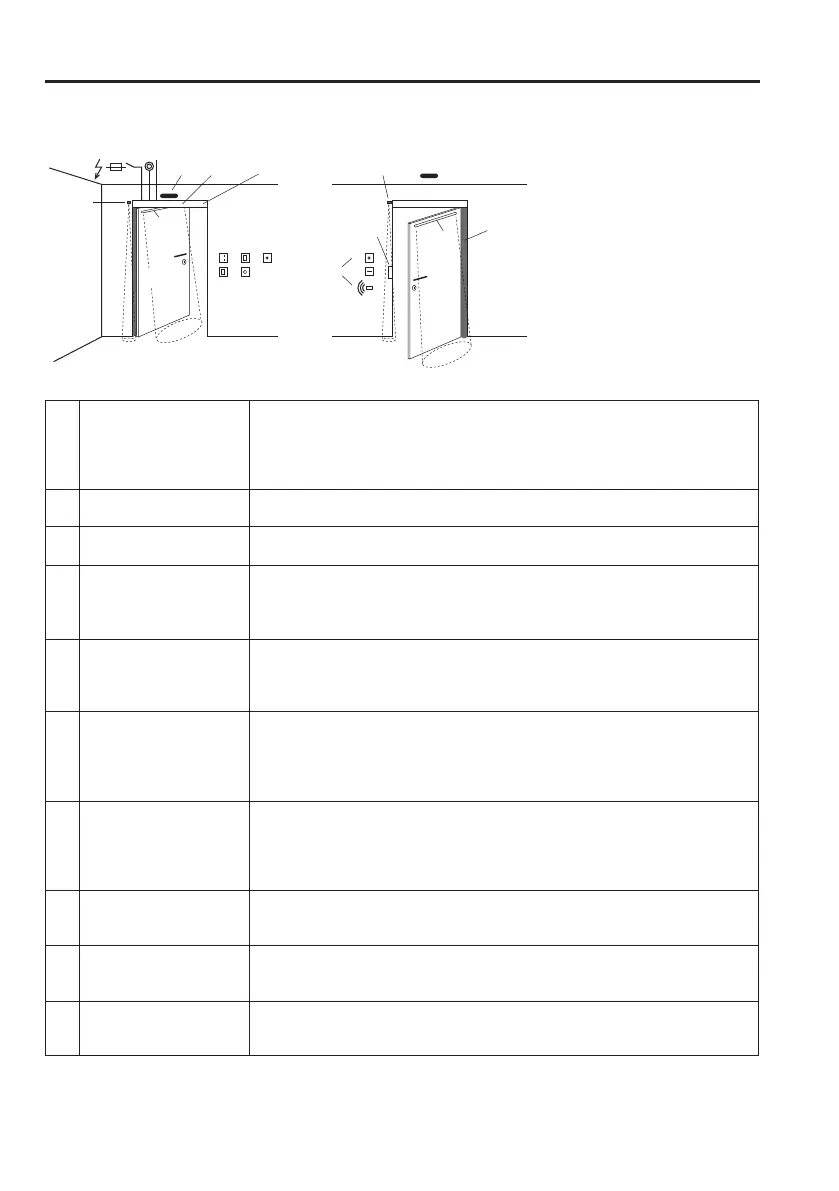

3.1 System Overview
1 Drive
a) Motor and spring unit
b) MCU32 control system with monitoring system, power limitation and
permanent diagnosis.
£
Controlled closing function of the door in power-off condition
£ Controlled opening function in power-off condition
2 Drive accessories u
a) £ Emergency power supply via the battery unit
£ …
3 Door leaves
a) Swing leaf with main closing edge (HK) and secondary closing edge (NK)
b) £ Finger protection to enhance the safety of the secondary closing edge.
4 Operating controls
a) £ iMotion user interface with 6 operating modes and fault display
b) £ Operating mode switch with 3 positions.
c) £ Lock for the user interface
d) £ Remote control of operating modes
5 Internal activators
a) With automatic activation b) With manual activation
£ Radar with/without direction recognition £ Push button
£ IR motion detector £ Contact-free button
£ Contact mat £ …
6 External activators
a) With automatic activation b) With manual activation
£ Radar with/without direction recognition £ Key switch
£ IR motion detector £ Card reader
£ Contact mat £ Remote control
£ … £ …
7 Safety sensors
a) £ Presence sensor safeguarding the swing area when closing
b) £ Presence sensor safeguarding the swing area when opening
c) £ Presence
sensor safeguarding the opposing closing edge (GK)
d) £ Presence sensor: secondary closing edge protection
£ …
8 Emergency systems
a) £ Power switch / fuse
b) £ Emergency on/off switch
c) £ Fire alarm system
9 Output message
£ Bell / gong
£ Light
£ Door status
10 Lock u
a) £ Electrical door opener
b) £ Door handle
c) £ Mechanical door lock
£ Depending on the system’s equipment
HK
HK
NK
GK
GK
5a
7b
6a
6b
3a
10b,c
4a 4b 4c
5b 8b
10a
7a
7d
7c
3b
T1737_1e
1a,b 2a
8a 8c 9
inside
outside
