GB GB

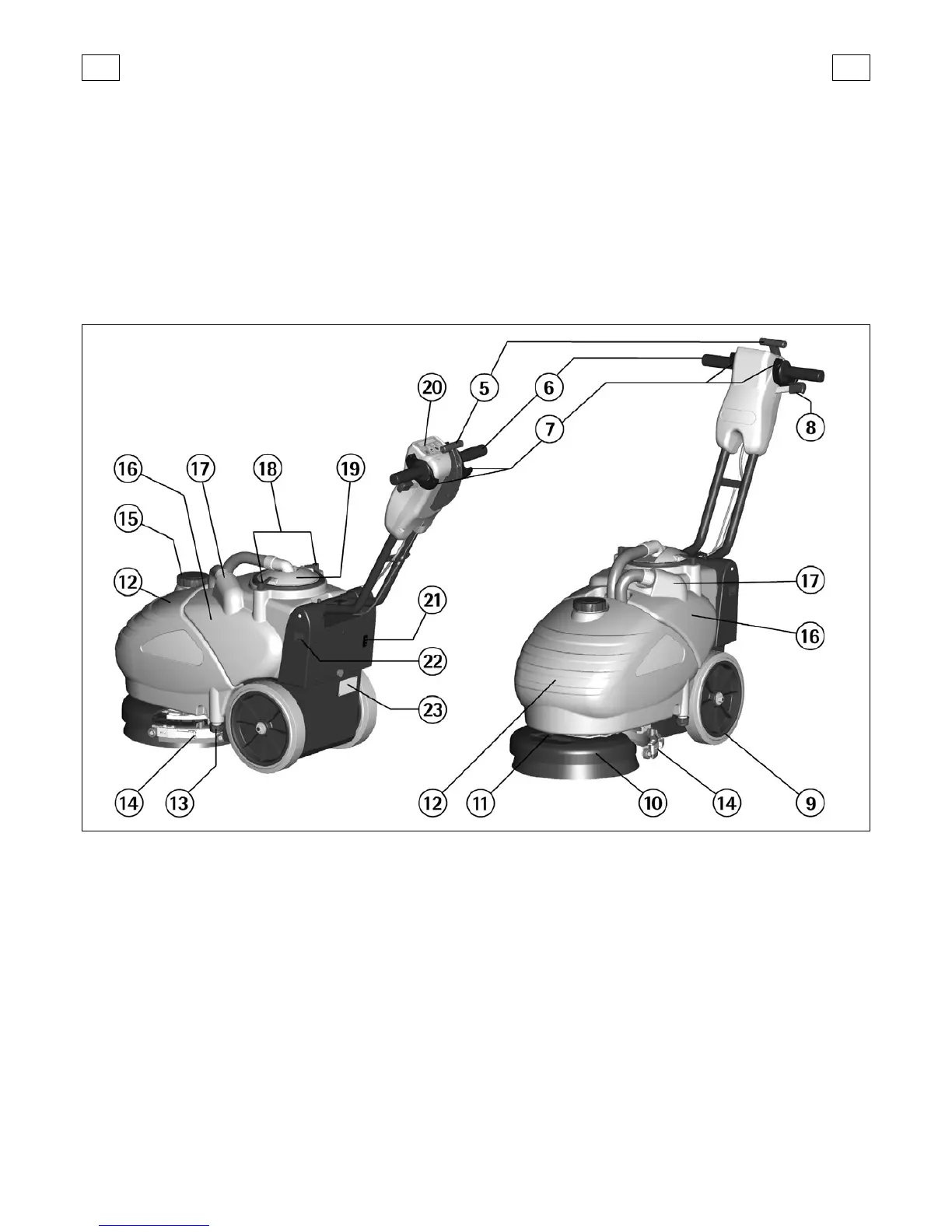

LEGEND MACHINE
9. WHEELS
10. BRUSH BASE ASSEMBLY
11. SOLUTION FLOW ADJUSTMENT
12. SOLUTION TANK
13. SOLUTION TANK DRAIN
14. SQUEEGEE ASSEMBLY
15. SOLUTION TANK CAP
16. RECOVERY TANK
17. INLET OPENING SQUEEGEE HOSE
18. BLOCKING LEVERS SUCTION COVER
19. SUCTION COVER
2
0. INSTRUMENT BOARD
2
1. CHARGE LEVEL INDICATOR
2
2. POWER CABLE RECEPTACALE FOR
BATTERY CHARGER
2
3. SERIAL NUMBER PLATE
4
