15
ASSEMBLY

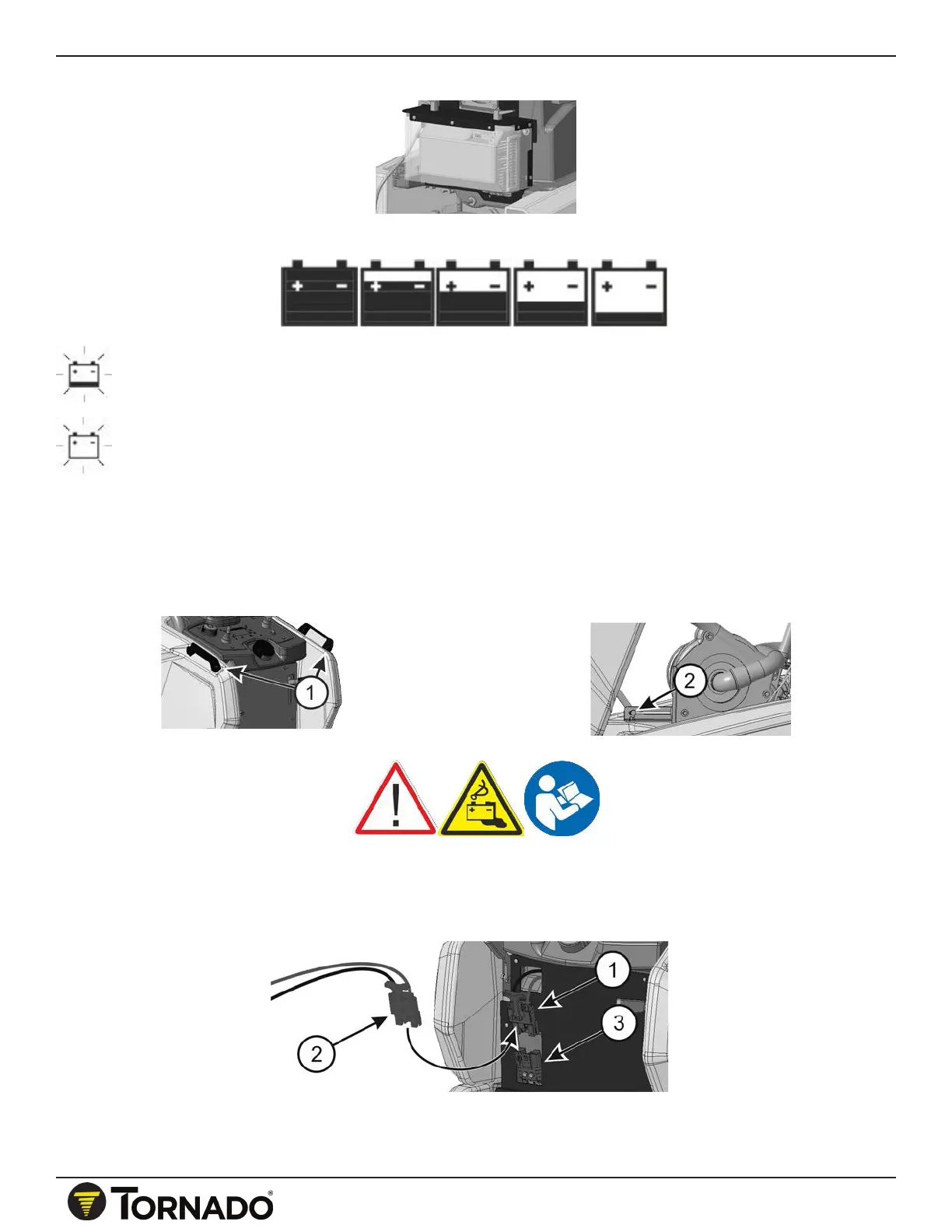

BATTERY CHARGE LEVEL INDICATOR
The battery charge level is displayed with its related symbol (see “CONTROLS DISPLAY”).
When the last segment of charge starts blinking, the battery is almost discharged and the
suction and brushes functions are disabled.
When even the last segment of charge turns off, the battery is discharged completely and
the machine stops.
LIFTING THE RECOVERY TANK
For some ordinary maintenance operations, like battery charging, it could be necessary to open
the recovery tank.
Grab the handles (1) and lift it.
Open it to its maximum extension in order to lock the opening system..
Move the lever (2) to unlock it, then close the tank keeping a hand on the handle (1).
BATTERY CHARGING
1. Plug the connector (2) of the battery charger into the battery connector (1).
2. Proceed with the charge, keeping the recovery tank open
Once the battery recharging is completed:
3. Disconnect the connector of the battery charger from the battery connector (1).
4. Connect the machine connector (3).
