Tornado CK LW 13/1 Roam User Manual

MAINTENANCE AND CARE
Replacing the Vacuum Belt
WARNING! To Reduce the Risk of Electrical Shock
or Injury from Moving Parts, Turn the Vacuum Off and
Remove the Battery Before Servicing or Cleaning the
Vacuum.
NOTE: To ensure maximum cleaning efciency, the
belt should be checked regularly to be sure it is in good
condition. Check to see if the belt is stretched, cracked,
or if excessive slipping is occurring. Replace if needed.
• Turn the vacuum off and unplug the charger from
the Charge Point.
• Remove the battery (see see Removing and Rein-
stalling the Battery, page 10).
• Remove the bottom plate (see Removing and Rein-
stalling the Bottom Plate, page 11).
• Remove the brushroll and the worn or broken belt
from the brushroll pulley and the motor drive shaft.
• Loop the new belt around the motor drive shaft and
the brushroll (Fig. 1).
• Reinstall the brushroll into the nozzle. Turn the
brushroll by hand, making sure the belt is not twist-
ed and all rotating parts move smoothly (Fig. 2).
• Reinstall the bottom plate (see Removing and Rein-
stalling the Bottom Plate, page 11).
• Replace the battery (see see Removing and Rein-
stalling the Battery, page 10).
Replacing the Squeegee
WARNING! To Reduce the Risk of Electrical Shock
or Injury from Moving Parts, Turn the Vacuum Off and
Remove the Battery Before Servicing or Cleaning the
Vacuum.
If your squeegee splits or begins to look worn, simply
slide the worn squeegee from its track and slide a new
one into the track. If you have trouble installing the new
squeegee, please contact an Authorized Tornado Service
Center.

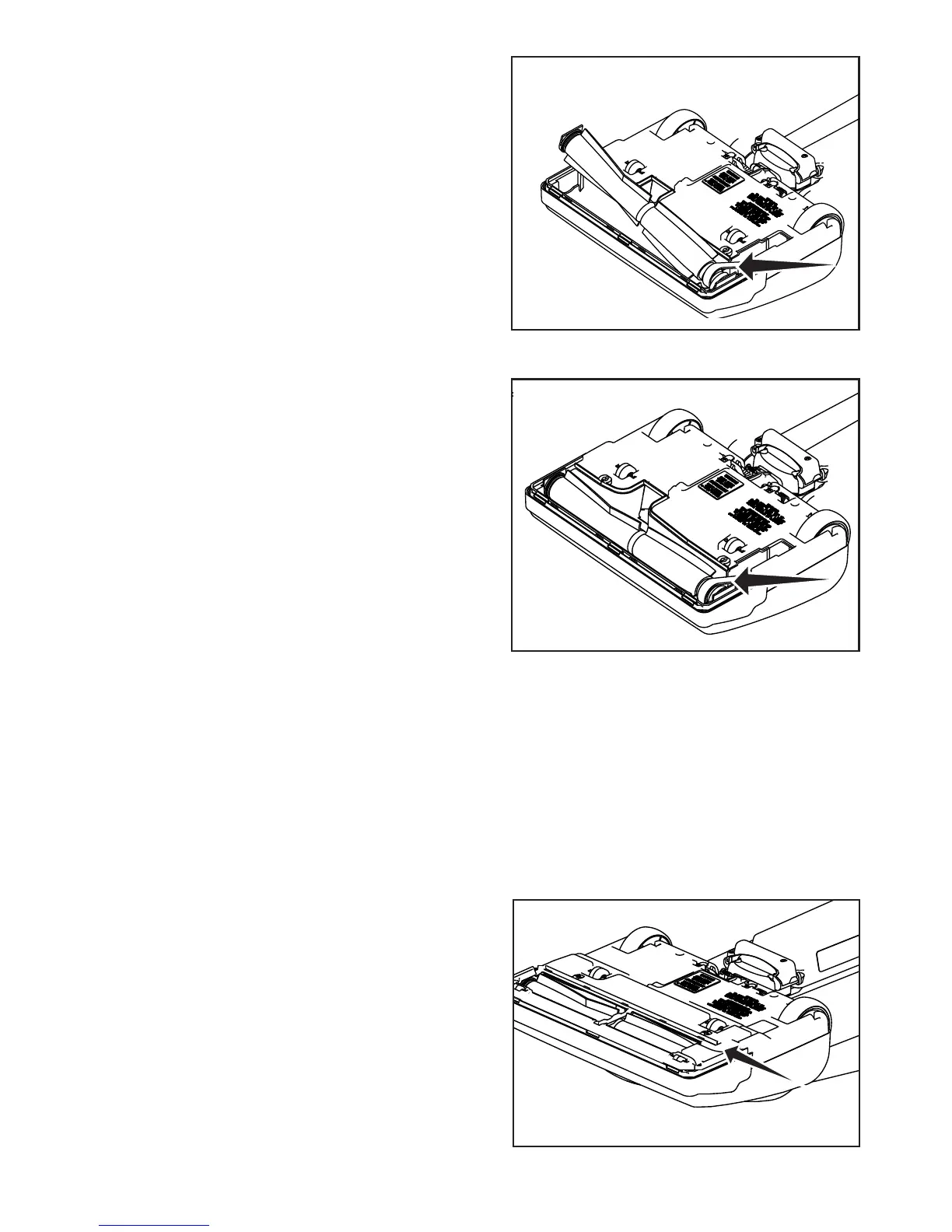

Fig. 1
Fig. 2
