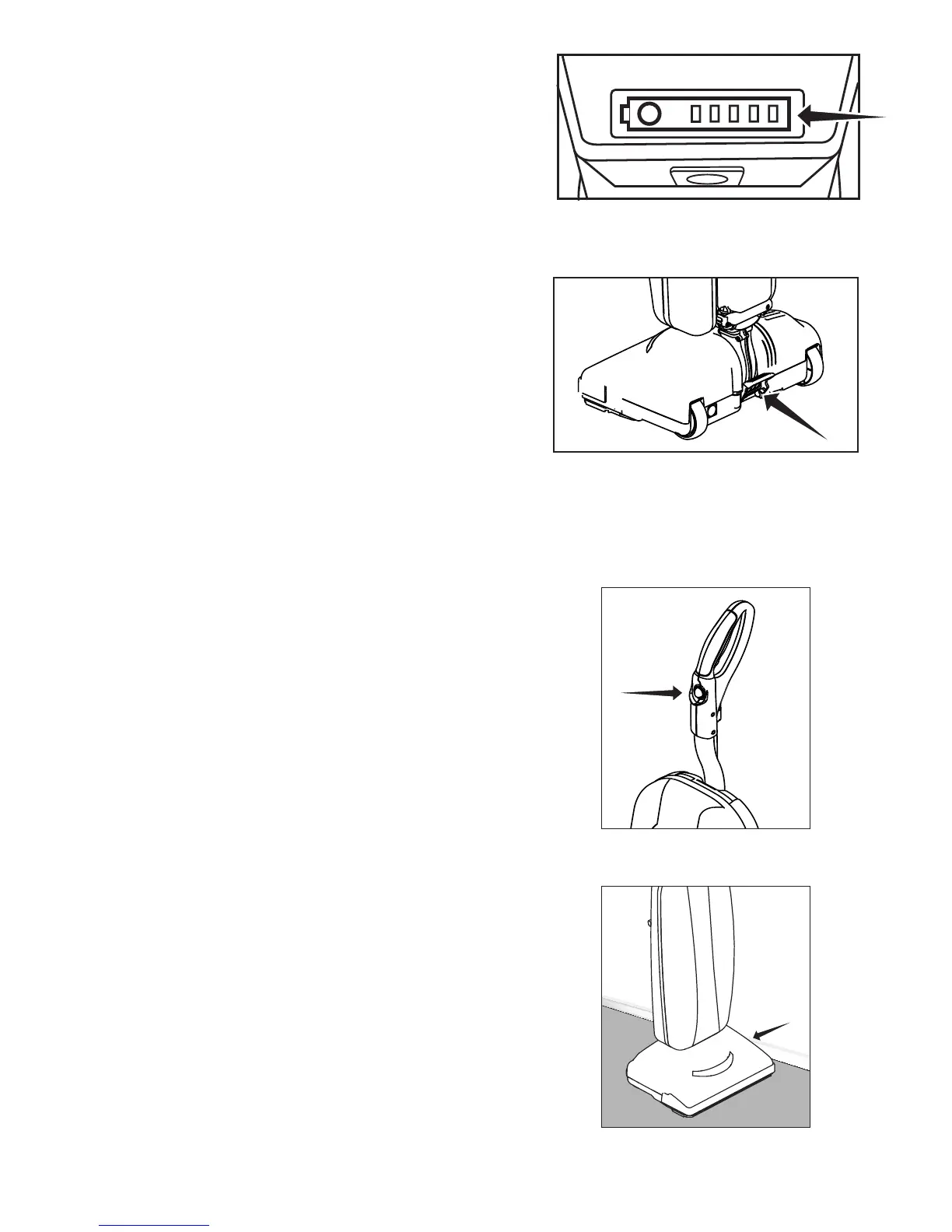

Battery Life Display
• Press the button on the battery to illuminate the
LED lights.
• When the battery is fully charged there will be four
(4) green lights and one (1) red light showing (Fig.
3).
• As the battery is discharged, during use, the number
of green lights showing will reduce from four (4) to
none (0).
• When all of the green lights are off and only the red
light is showing, there is a small amount of time re-
maining before the battery will be fully discharged
and will require recharging.
Reclining the Handle
• Press the Handle Release Pedal located on the back
of the vacuum with your foot to recline the handle
(Fig. 4).
OPERATION
On/Off Switch
• Turn the switch On to use the vacuum. If the vacu-
um doesn’t turn on, check that the battery is charged
(see page 10).
• Always unplug the charger from the Charge Point
before use.
Edge Cleaning
The edge cleaning feature provides improved clean-
ing near walls and stationary furniture. For maximum
edge cleaning, place the left side of the nozzle, from the
user’s perspective, against the wall or stationary furni-
ture (Fig. 2).
Automatic Carpet Height Adjustment
Your vacuum is designed with an automatic self-
adjusting nozzle. No manual adjustments are required.
The height of the nozzle automatically adjusts to the
ooring surface. This self-adjusting feature allows the
nozzle to oat evenly over all ooring surfaces.
Fig. 4
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:C
PART NUMBER
SHEET 3 OF 8
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
0.250
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
3 OF 8
X.X .5 mm RADII X.X .5mm
X.XX .25mm X.XX .25mm
X.XXX .12mm MACHINE SURFACE
X.XXXX .012mm BREAK SHARP CORNERS TO .25mm MAX
0 30" COMMON TO BE CONCETRIC TO .05mm
BYECN NODATEREV
Fig. 3
Fig. 1
Fig. 2
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:C
PART NUMBER
SHEET 2 OF 8
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
0.250
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
2 OF 8
X.X .5 mm RADII X.X .5mm
X.XX
.25mm X.XX .25mm
X.XXX
.12mm MACHINE SURFACE
X.XXXX
.012mm BREAK SHARP CORNERS TO .25mm MAX
0 30" COMMON TO BE CONCETRIC TO .05mm
BYECN NODATEREV
SEE DETAIL A
SCALE 0.500
DETAIL A
7
