Tornado CK LW 13/1 Roam User Manual

DESCRIPTION OF THE VACUUM
Key Replacement Parts
• Cleanbreeze disposable collection bags: 90039
• Belt: B014-0814B
• Battery: 98311
• Battery Charger: 99131

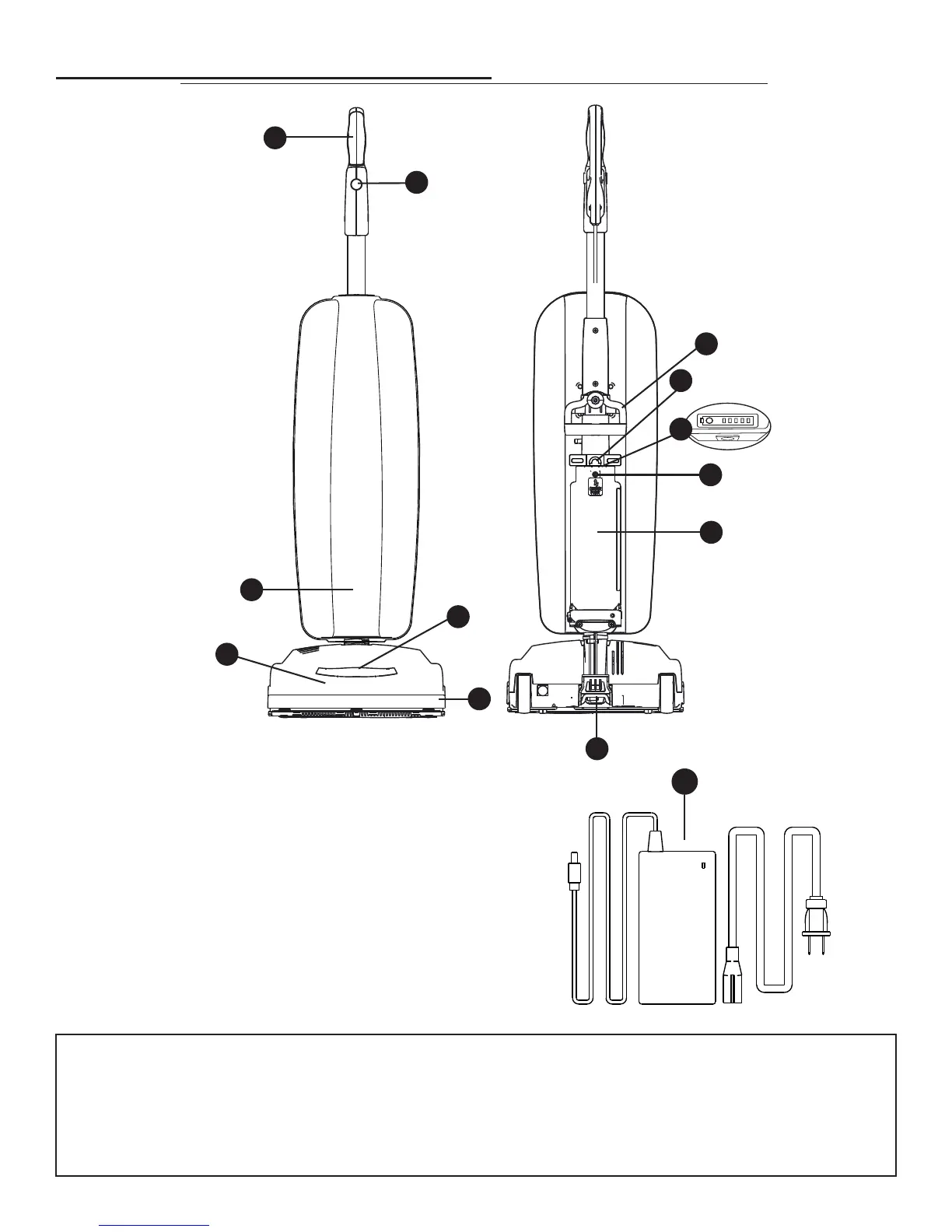

1 Ergonomic Handle
2 On/Off Power Switch
3 Bag Compartment
4 Vacuum Nozzle
5 Headlight
6 Furniture Guard
7 Handle Release Pedal
8 Battery Pack
9 Charge Point
10 Battery Life Display
11 Battery Release Button
12 Carry Handle
13 Charger
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:C
PART NUMBER
SHEET 1 OF 4
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
0.250
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
1 OF 4
X.X .5 mm RADII X.X .5mm
X.XX .25mm X.XX .25mm
X.XXX .12mm MACHINE SURFACE
X.XXXX .012mm BREAK SHARP CORNERS TO .25mm MAX
0 30" COMMON TO BE CONCETRIC TO .05mm
BYECN NODATEREV
4
3
1
2
5
6
8
9
7
12
11
10
13
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:C
PART NUMBER
SHEET 1 OF 1
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
1 OF 1
X.X .5 mm RADII X.X .5mm
X.XX .25mm X.XX .25mm
X.XXX .12mm MACHINE SURFACE
X.XXXX .012mm BREAK SHARP CORNERS TO .25mm MAX
0 30" COMMON TO BE CONCETRIC TO .05mm
BYECN NODATEREV
AS 20MAY15
SEE NOTES
SEE NOTES
C223-2000
C223-2000
BATTERY CHARGER 50.4V DC
NOTES:
1. OUTPUT 50.4V DC, 1.5A
2. DC POWER CONNECTOR PLUG 2.5MM AND CABLE 47" LONG.
3 INPUT = AC 100-240V, 50/60Hz, 100VA.
4. AC CABLE 71" LONG W/ 2 PIN POLARIZED AMERICAN PLUG
5. PLUGS AND CABLES UL CERTIFIED.
6. CHARGER - UL1310 CERTIFIED
5
