Tornado CK LW 13/1 Roam User Manual

OPERATION
Bare Floor Cleaning

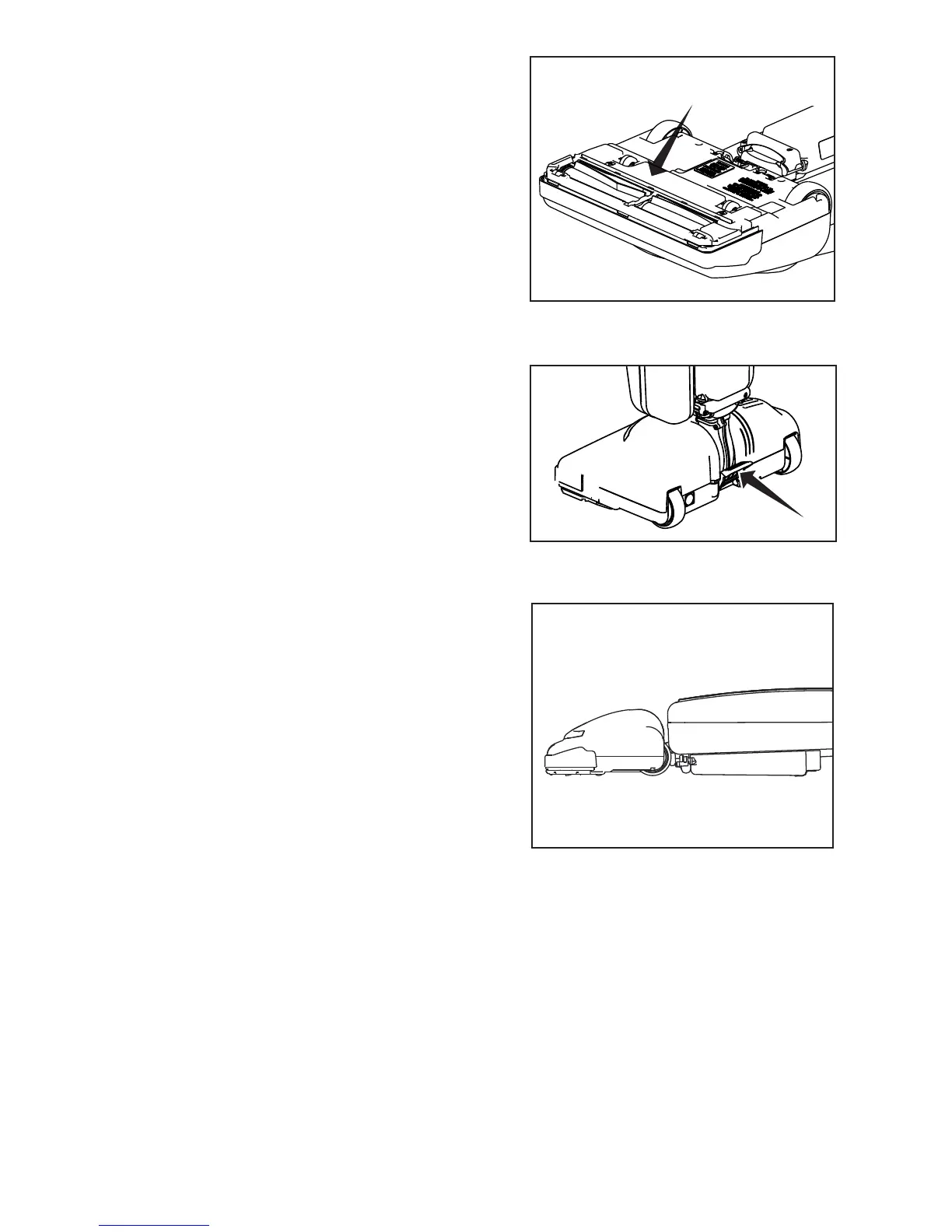

Your vacuum is equipped with a squeegee to improve
its effectiveness in cleaning bare oors (Fig. 1).
Vacuuming Under Furniture
Your vacuum will lay at on the oor for effective
cleaning under beds and tables.
• Press the Handle Release Pedal once for routine
vacuuming cleaning (Fig. 2).
• Continue to lower the handle to enable the vacuum
to lay at on the oor for cleaning under furniture
(Fig. 3).
Fig. 3
Fig. 1
Fig. 2
