Tornado CK LW 13/1 Roam User Manual

MAINTENANCE AND CARE

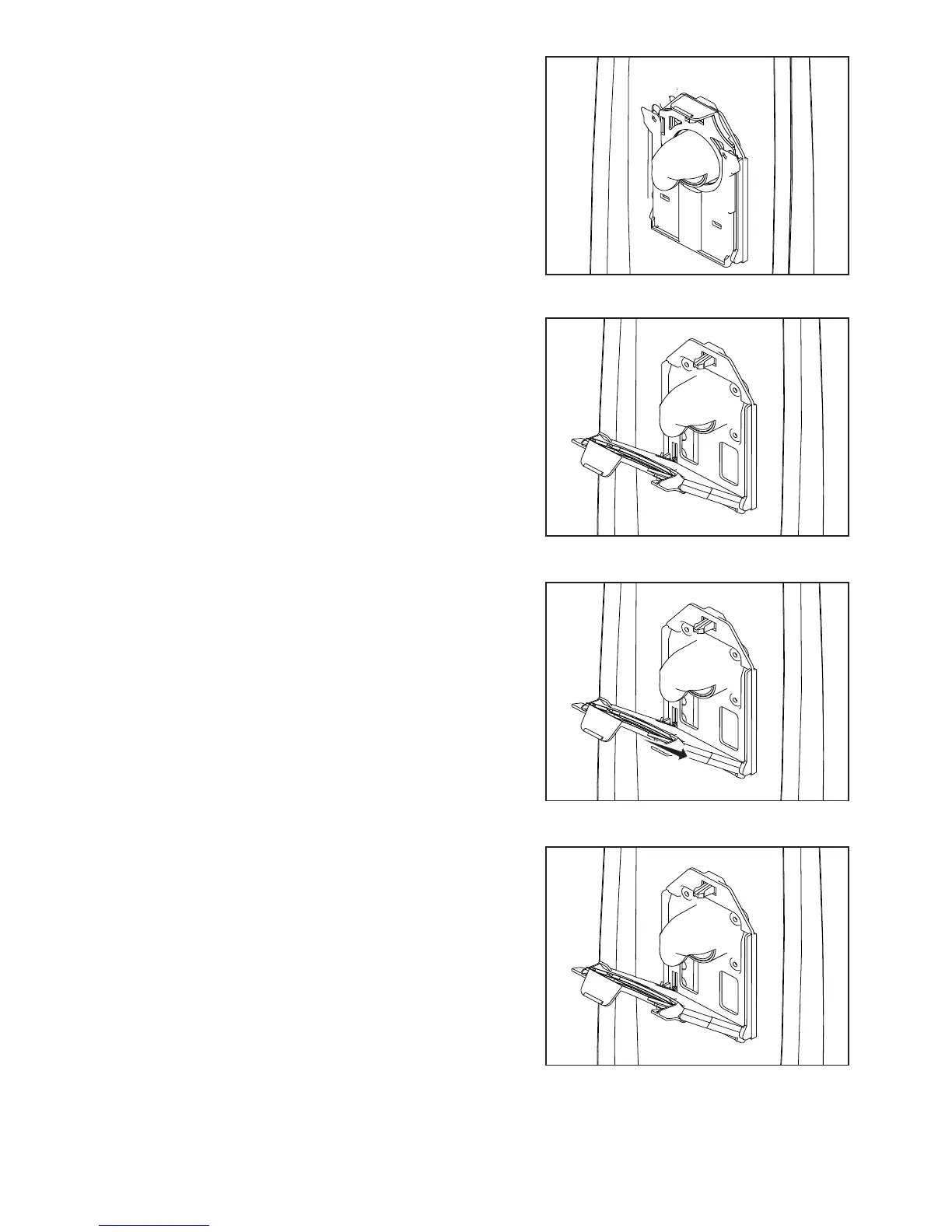

Replacing the Vacuum Bag
NOTE: Turn the vacuum off and remove the battery.
• Unzip the bag compartment.
• Remove the used vacuum bag by pulling the green
bag collar tab away from the vacuum (Fig. 1). Slide
the used bag out of the bag holder which automati-
cally seals the bag opening (Fig. 2). Discard the
used bag.
• To install a new bag, slide the bottom of the green
bag collar into the bag holder until it “snaps” into
place (Fig. 3).
• Push the top of the bag collar upward until the col-
lar “snaps” into place on the vacuum (Fig. 4).
• Tuck the bag corners into the bag compartment,
then zip the bag compartment closed.
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
.02 IN RADII X.X ± .02
.01 IN X,XX ± .01
.005 IN MACHINE SURFACE
.0005 IN BREAK SHARP CORNERS TO .010 MAX
0 ° 30" COMMON TO BE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
A
6
7
8
Fig. 1
Fig. 2
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
.02 IN RADII X.X ± .02
.01 IN X,XX ± .01
.005 IN MACHINE SURFACE
.0005 IN BREAK SHARP CORNERS TO .010 MAX
0 ° 30" COMMON TO BE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
A
6
7
8
Fig. 3
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
.02 IN RADII X.X ± .02
.01 IN X,XX ± .01
.005 IN MACHINE SURFACE
.0005 IN BREAK SHARP CORNERS TO .010 MAX
0 ° 30" COMMON TO BE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
A
6
7
8
Fig. 4
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
.02 IN RADII X.X ± .02
.01 IN X,XX ± .01
.005 IN MACHINE SURFACE
.0005 IN BREAK SHARP CORNERS TO .010 MAX
0 ° 30" COMMON TO BE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
A
6
7
8
9

Tornado CK LW 13/1 Roam Specifications

General

Brand	Tornado
Model	CK LW 13/1 Roam
Category	Vacuum Cleaner
Language	English
