BEFORE USE
HANDLING OF THE PACKED MACHINE
The machine is supplied with suitable packing
foreseen for fork lift truck handling.
The total weight is 205 lbs. (95 kg).
Packing dimensions:
Base: 46” x 26” (118 cm x 67 cm).
Height: 47” (119 cm).
Do not place more than 2 packings on top of
each other.

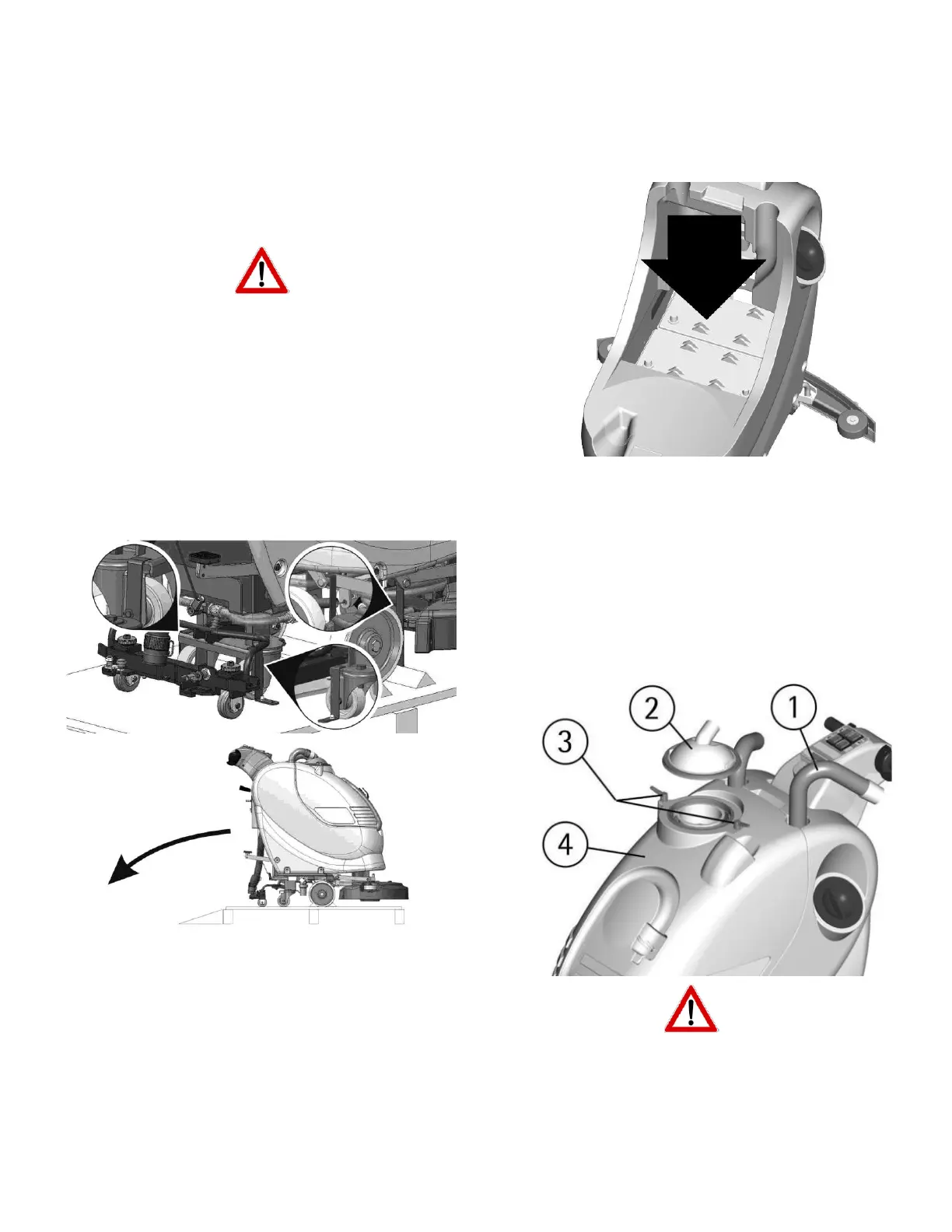

UNPACKING OF THE MACHINE
1. Remove the external packing.
2. Unscrew the brackets that secure the
machine to the pallet.
3. Move the machine backwards, as indicated
in figure, avoiding heavy contacts to
mechanical parts.
4. Keep the pallet for eventual transport.
BATTERY INSTALLATION AND SETTING OF
THE BATTERY TYPE
This machine is equipped with two batteries
at 12V in serial connection, placed in its
appropriate compartment under the recovery
tank and must be handled using suitable
lifting equipment (due to weight and coupling
system). The batteries must be in accordance
with CEI 21-5 Norms. The connection of the
batteries' cables has to be carried out by
specialized staff,
because the inversion of polarity causes the
damage of the electrical components. Before
the machine is supplied with power, check that
the red cable is connected to the + pole of the
battery.
For batteries installation proceed as follows:
1. Take off the squeegee hose (1).
2. Take off the suction cover (2) after turning
the blocking levers (3).
3. Take off the recovery tank (4).
4. Place the batteries in its compartment.
5. Connect the terminals, respecting the
polarities, avoiding contact with tools that
could create short circuit.
6. Reassemble all parts.
The machine and the signal lamp of the
battery charge level (1) foresee the use of
traditional lead batteries. In case of GEL
batteries installation, it is necessary to carry
out a specific adjustment. Please contact the
authorized technical assistance.
