INSTALLATION − DECO 20a / DEC0 26a / DECO 20e / DECO 26e
300561 en − 05/08 Chap. 3.2.1 /3
306009f2
240
220
040
. Caution !
Do not remove the transport locks until the lathe is properly located.

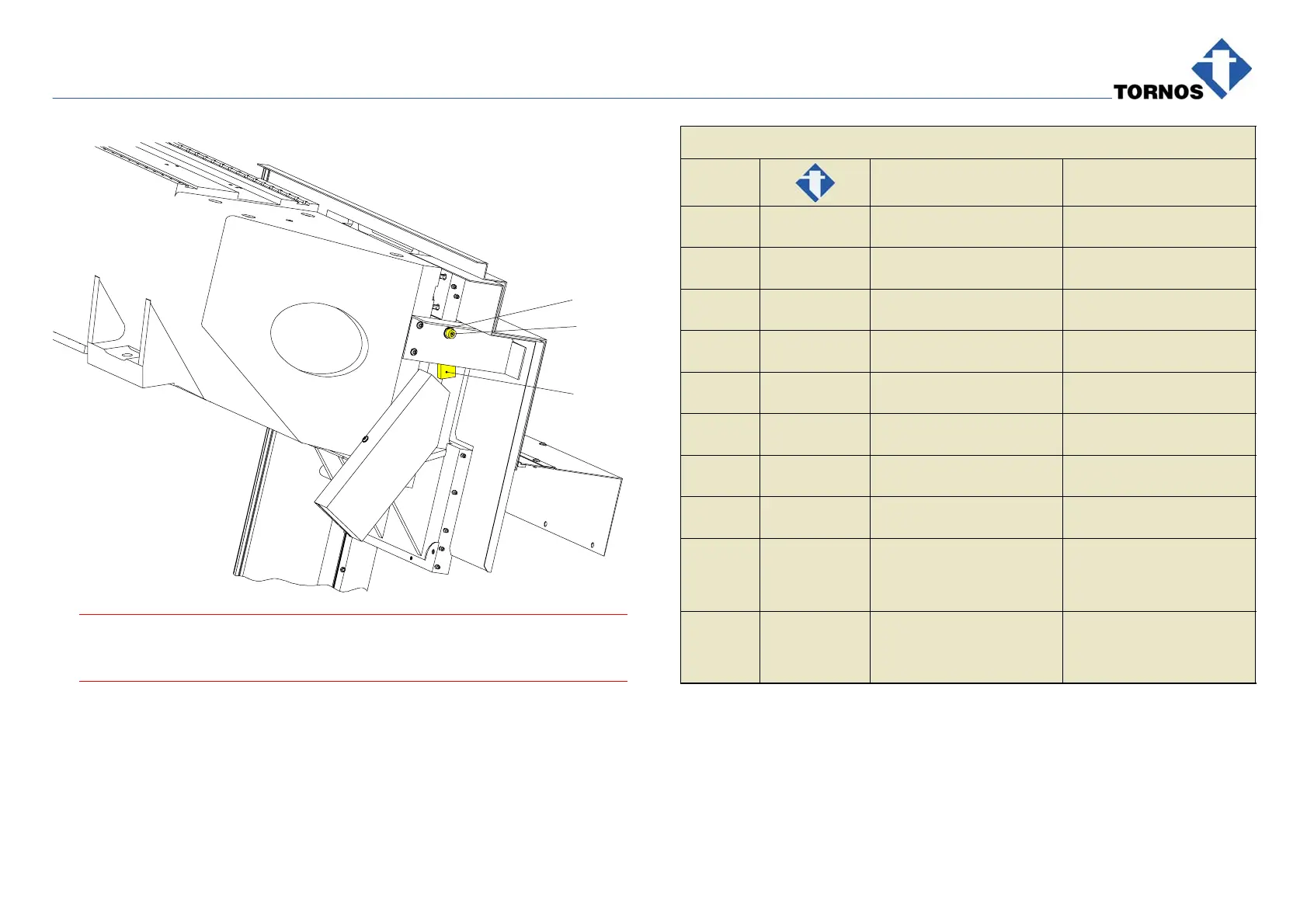

SPARE PARTS − TRANSPORT LOCKS
Item Designation
Axis / Item
to lock
030 562360 Yellow rod Z4
040 562361 Yellow piece Z3
210 020200 Screw M6x20 Z4
220 213031 Screw M10x35 Z3
230 501100 Nut M10 Z4
240 580076 Washer 10.5x20 Z3
250 580449 Screw M10x40 Z4
− 821953 Rod dia. 6 / 8 mm Spindle, etc.
090 565278 Yellow piece
Bridage Z3 for trans-
port of DECO VER-
SION 0018−0020
200 216989 Screw M6x12
Bridage Z3 for tran-
sport of DECO VER-
SION 0018−0020
