INSTALLATION − DECO 20a / DEC0 26a / DECO 20e / DECO 26e
300561 en − 05/08 Chap. 3.10.2 /26
3.10 PNEUMATICS INSTALLATION
3.10.1Air Quality Specification
. Caution !
The air supplied to the machine must be absolutely dry and oil-free.
Fit an air drier at the circuit input following the water/oil content in the
air system, to avoid malfunctioning or breakdowns of the machine.
Feature Notes Data
Air quality: according to: ISO 8573 − 1
Quality class: workshop standard: 4
Size grading: max.:
15
μm
Mass concentration: 8 mg/m
3
Pressure dew point: max.: + 3° C
Oil content: max.: 5 mg/m
3
For STANDARD PNEUMATICS and PICKOFF SPINDLE PNEUMATICS,
follow this note:
⇒ Note :
For more details, consult your operating instructions entitled :
OPERATION & MAINTENANCE.

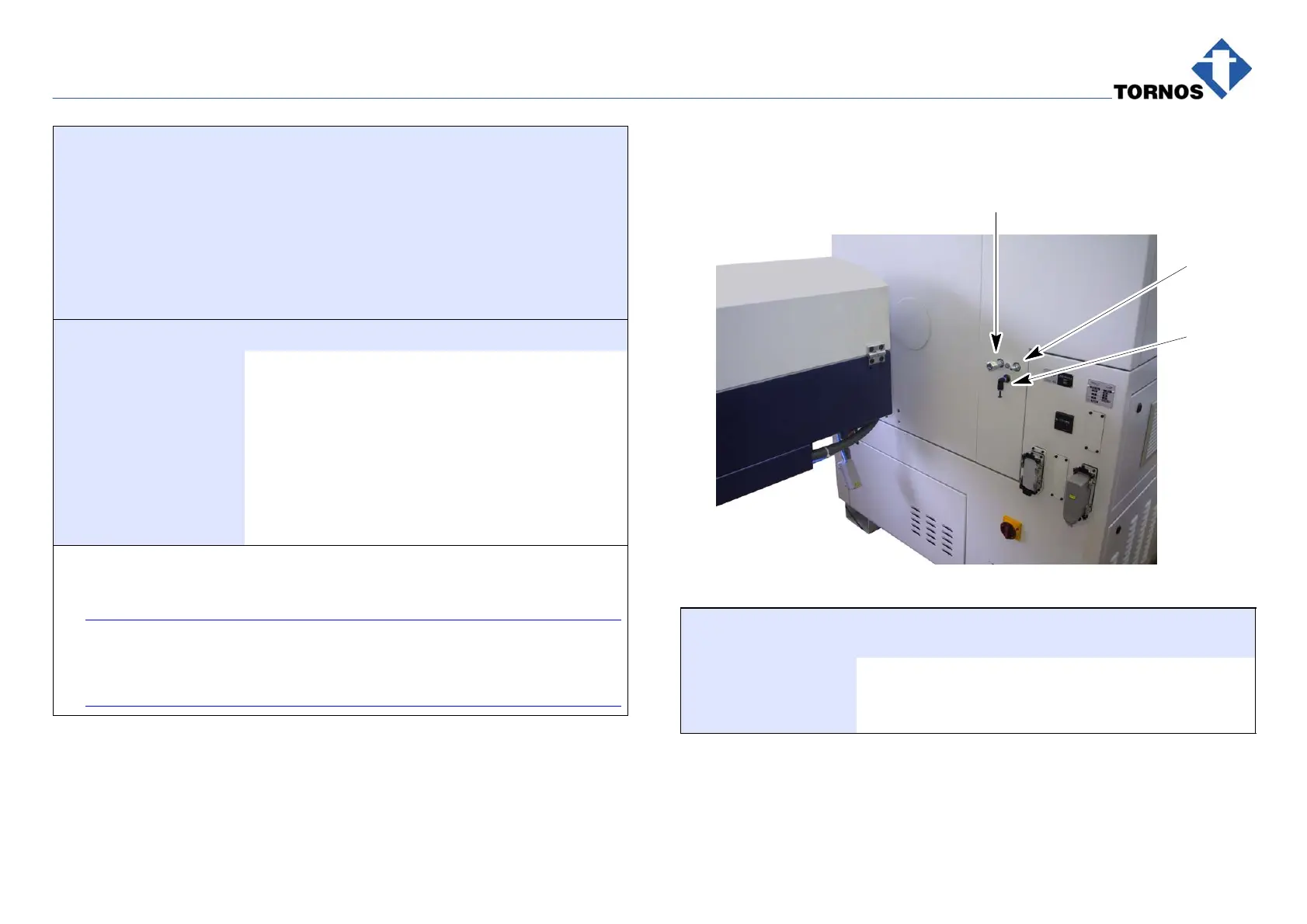

3.10.2Pneumatical connection
(1)
(2)
(3)
LOCATION
Item Description
1 Connector for blow−out gun
2 Pneumatic supply of the customer
3 Connector for bar loader
