AdjustingtheCut-OffBar
Adjustthecut-offbartoensurethattheclippingsarecleanly
dischargedfromthereelarea:
1.Loosenthescrewssecuringthetopbar(Figure11)to
thecuttingunit.
1
g014643

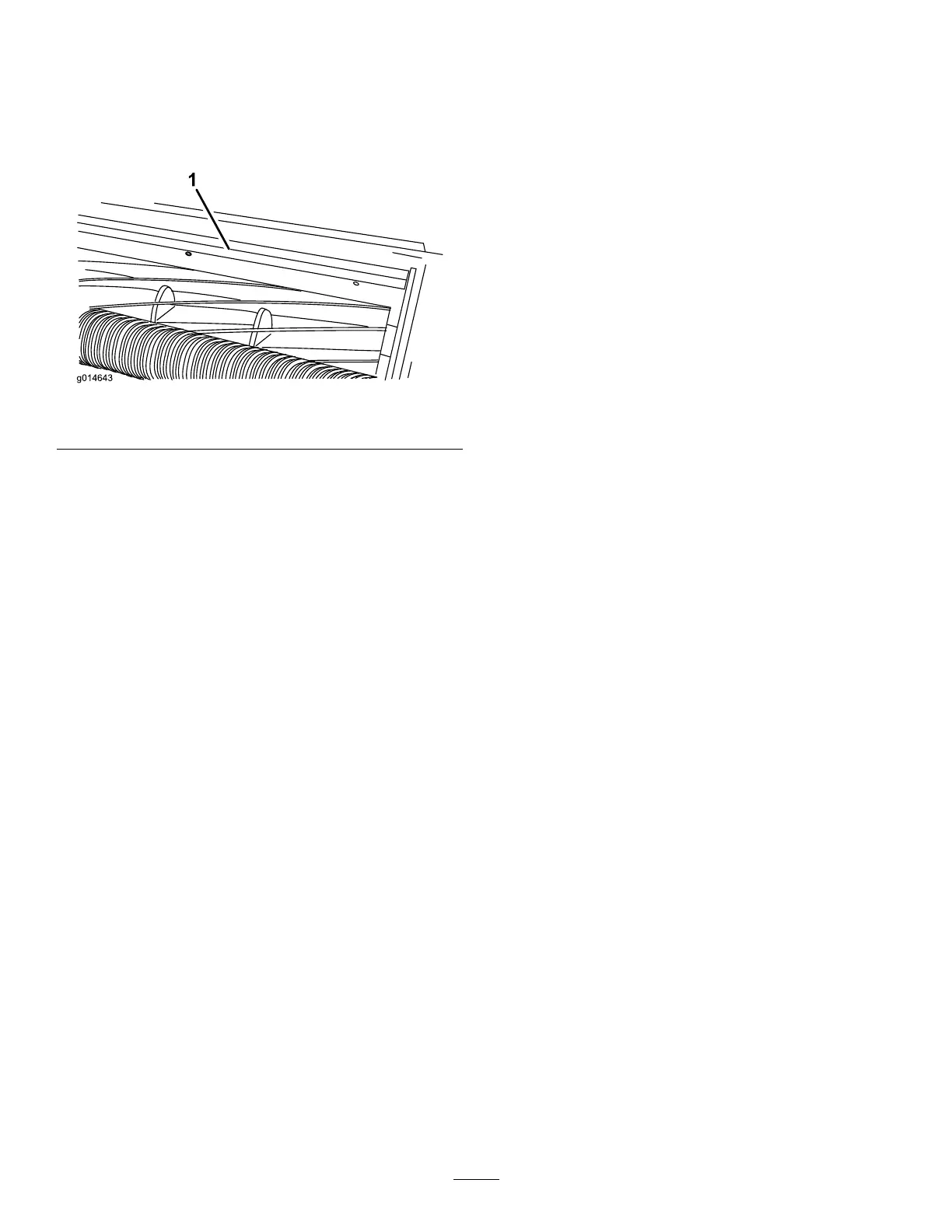

Figure11
1.Cut-offbar
2.Inserta0.060inchfeelergaugebetweenthetopofthe
reelandthebarandtightenthescrews.Ensurethebar
andreelareequaldistanceapartacrossthecomplete
reelforoptimumperformance.
Note:Thebarisadjustabletocompensateforchanges
inturfconditions.Adjustthebarclosertothereel
whentheturfisextremelydry.Bycontrast,adjustthe
barfurtherawayfromthereelwhentheturfconditions
arewet.Adjustthebarwheneveryousharpenthereel
onareelgrinder.
