Toro 2000 Series User Manual

ProductOverview

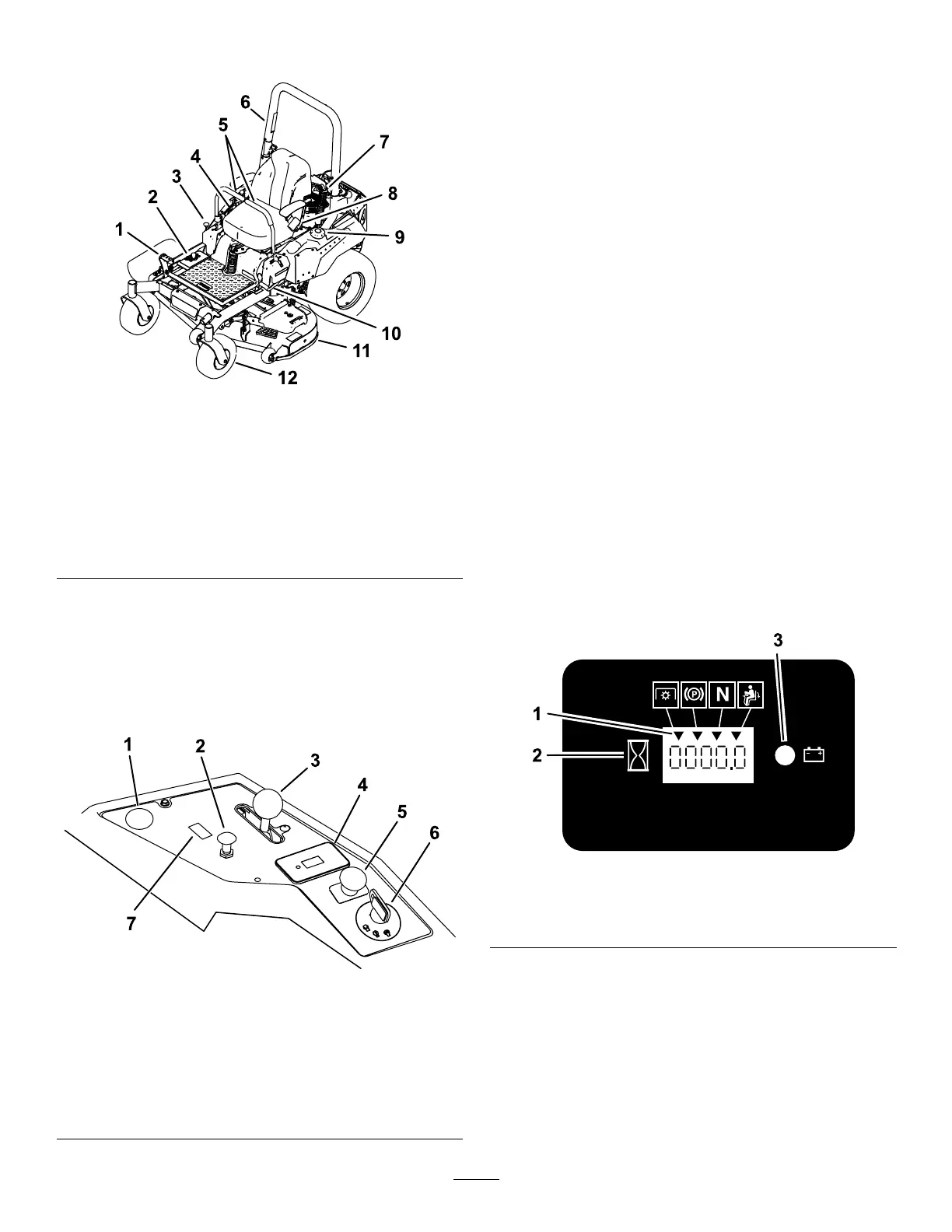

g227688
Figure4
1.Height-of-cutdeck-lift
pedal
7.Shockassembly
2.Height-of-cutpositions8.Seatbelt
3.Transportlock9.Fuelcap
4.Controls
10.Parking-brakelever
5.Motion-controllevers11.Mowerdeck
6.Rollbar
12.Casterwheel
Controls
Becomefamiliarwithallthecontrolsbeforeyoustart
theengineandoperatethemachine.
ControlPanel
g271171
Figure5
1.Positionforoptionalpower
point
5.Blade-controlswitch
(powertakeoff)
2.Chokecontrol
6.Keyswitch
3.Throttlecontrol
7.Switchpositionforoptional
lightkit
4.Hourmeter
KeySwitch
Thekeyswitch,usedtostartandshutofftheengine,
has3positions:OFF,RUN,andSTART.Referto
StartingtheEngine(page25).
ChokeControl
Usethechokecontroltostartacoldengine.
ThrottleControl
Thethrottlecontrolstheenginespeed,andithasa
continuous-variablesettingfromtheSLOWtoFAST
position(Figure5).
Blade-ControlSwitch(Power
Takeoff)
Theblade-controlswitch,representedbya
power-takeoff(PTO)symbol,engagesand
disengagespowertothemowerblades(Figure5).
HourMeter
Thehourmeterrecordsthenumberofhoursthe
enginehasoperated.Itoperateswhentheengine
isrunning.Usethesetimesforschedulingregular
maintenance(Figure6).
g187133
Figure6
1.Safety-interlocksymbols
3.Batterylight
2.Hourmeter
Safety-InterlockIndicators
Therearesymbolsonthehourmeterthatindicate
withablacktrianglethattheinterlockcomponentis
positionedcorrectly(Figure6).
12

Toro 2000 Series Specifications

General

Deck Material	Steel
Power Source	Gasoline
Engine Type	4-Cycle
Drive System	Rear-Wheel Drive
Speed Settings	Variable
Engine	Briggs & Stratton
Warranty	2 years limited
