Toro 20016 User Manual

3354-613 Rev A

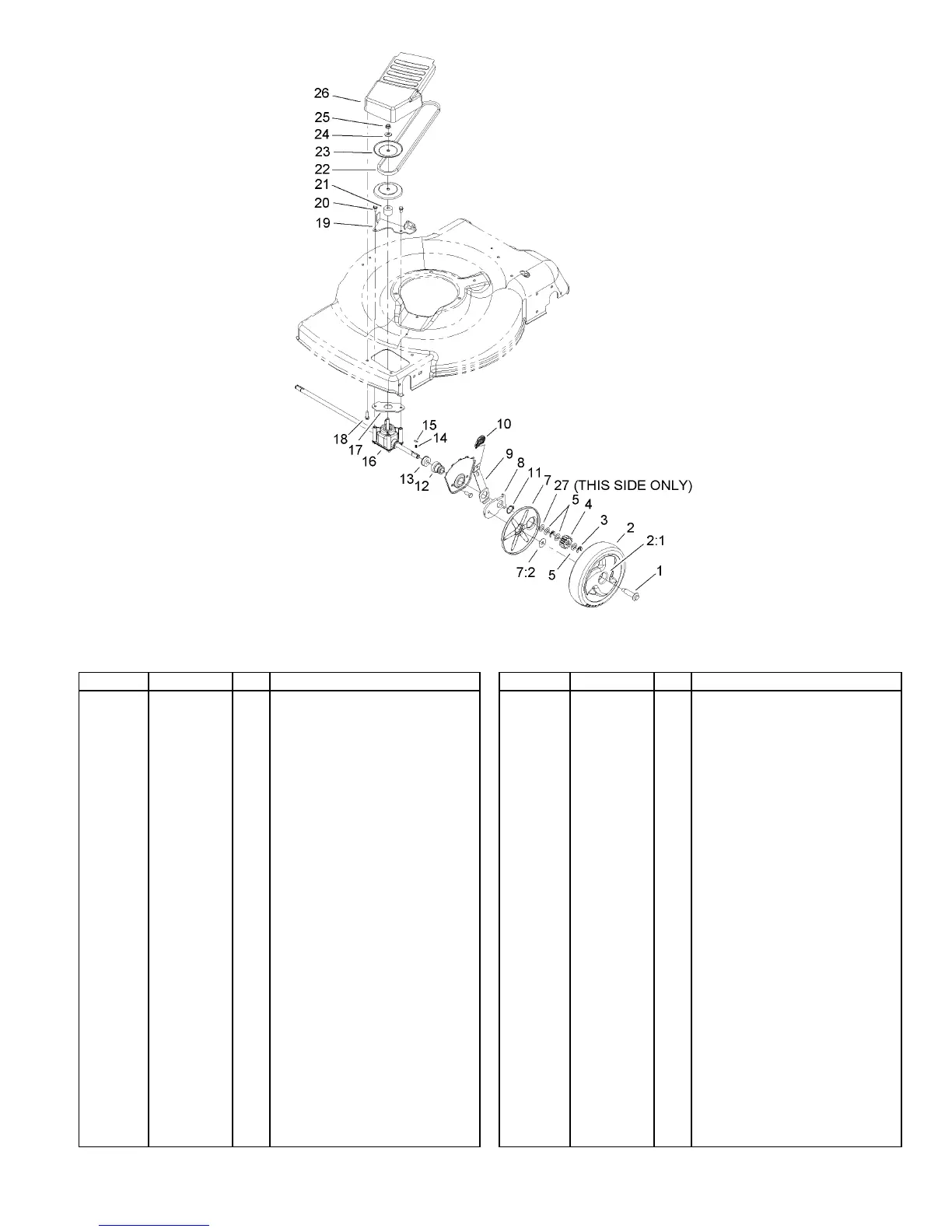

Front Axle and Transmission Assembly
5
Ref Part No. Qty. Description
Bolt-Shoulder1
614650
2
Wheel Gear ASM2
105-1815
2
Bushing2:1
27-6250
2
Klipring-Locking3
65-2720
4
Gear-Pinion, 13T4
104-8670
2
Washer-Thrust5
105-6840
6
Cover-Wheel7
108-3794
2
Cover7:1 1
no
Washer-Stepped7:2
614426
1
Arm-Pivot, Front8
105-1807
2
Arm-Spring9
105-1809
2
Knob-Lever, HOC10
105-3042
2
Ring-Retaining11
32151-36
2
Retainer-Bearing, HOC12
104-8698
2
Bearing-Ball13
104-8699
2
Spring-Compression14
39-9650
2
Key15
612066
2
Transmission ASM16
106-3955
1
Gasket-Gearbox17
108-9756
1
Screw-HWH18
46-8091
2
Bracket-Pivot, Fwd19
105-1833-03
1
Screw-HWH20
32144-4
2
Spacer21
92-5791
1
V-Belt22
91-2258
1
Ref Part No. Qty. Description
Pulley-Half, Front23
104-8691
2
Washer-Flat24
3256-24
1
Nut-Lock25
3296-5
1
Cover-Belt, Front26
105-1839
1
Washer27
36-4780
1
5

Toro 20016 Specifications

General

Engine	Briggs & Stratton
Deck Material	Steel
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge	Yes
Engine Type	4-Cycle
Cutting Width	22 inches
Cutting Height	1 - 4 in (2.5 - 10 cm)
Power Source	Gas
Wheel Size	7 in (front)
