Toro 23210 - Product Overview; Controls

ProductOverview
Figure5
1.Reverse
safety
plate
3.Engine
5.Tie-down/
liftpoint
7.Chip
shield
2.Control
panel
4.Battery6.Track
8.Grinder
Controls
Becomefamiliarwithallthecontrols(Figure6)before
youstarttheengineandoperatethemachine.
Figure6
1.Keyswitch5.Tractioncontrol
2.Throttlelever
6.Referencebar
3.Chokelever7.Grindercontrollever
4.Hourmeter
KeySwitch
Thekeyswitchhasthreepositions:off,run,andstart.
Tostarttheengine,rotatethekeytothestartposition.
Releasethekeywhenenginestartsanditwillmove
automaticallytotherunposition.
Tostoptheengine,rotatethekeytotheoffposition.
ThrottleLever
Movethecontrolforwardtoincreasetheenginespeed
andrearwardtodecreasespeed.
ChokeLever
Beforestartingacoldengine,movethechokelever
forward.Aftertheenginestarts,regulatethechoketo
keeptheenginerunningsmoothly.Assoonaspossible,
movethechokeleverallthewayrearward.
Note:Awarmenginerequireslittleornochoking.
HourMeter
Whentheengineisoff,thehourmeterdisplaysthe
numberofhoursofoperationthathavebeenlogged
onthemachine.
ReferenceBar
Whendrivingthemachine,usethereferencebarasa
handleandaleveragepointforcontrollingthetraction
control.Toensuresmooth,controlledoperation,donot
takebothhandsoffofthereferencebarwhileoperating
themachine.

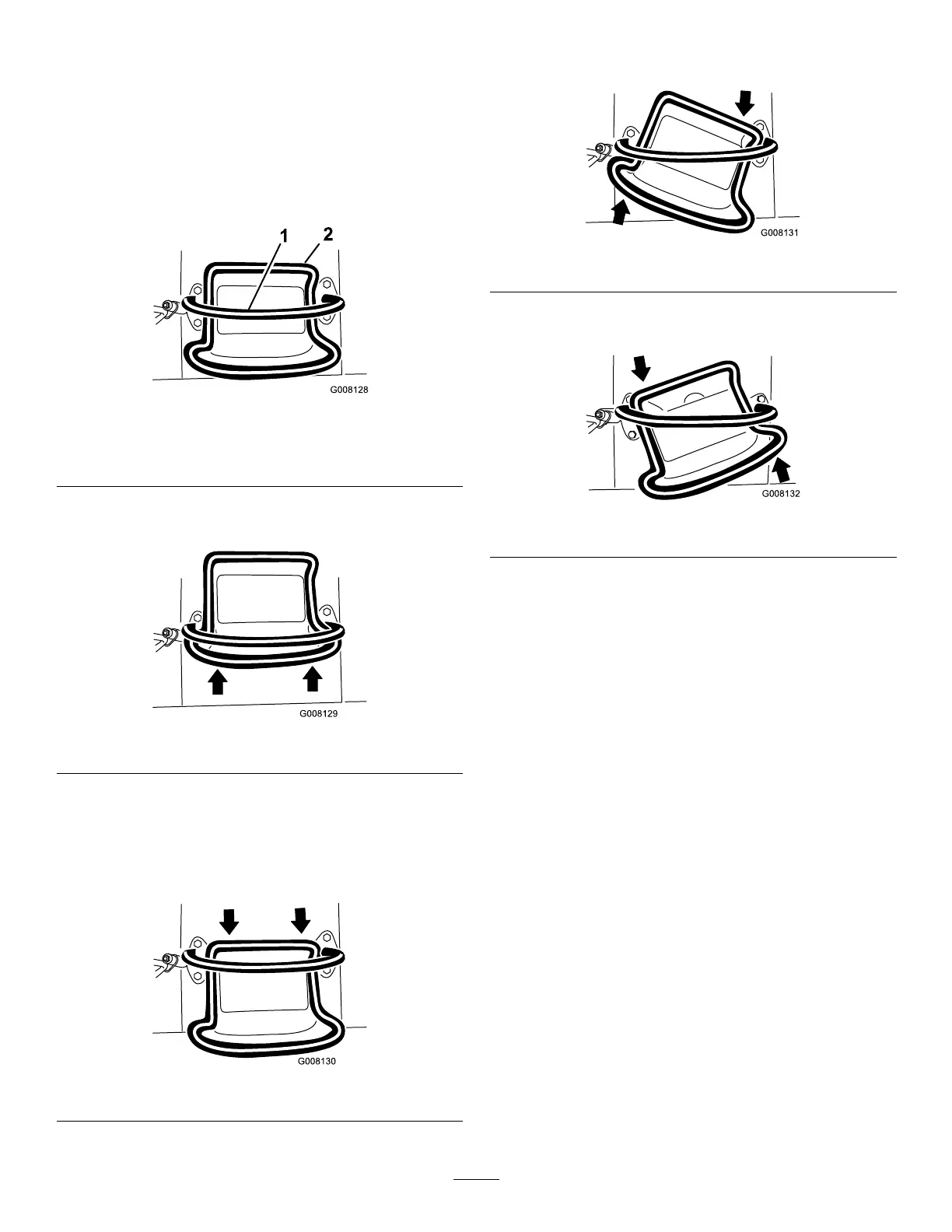

TractionControl
Figure7
1.Referencebar(doesnotmovetogiveyouareferencepoint
andaxedhandletoholdwhileoperatingthetractionunit)
2.Tractioncontrol(movestocontrolthemachine)
•Tomoveforward,movethetractioncontrolforward
(
Figure8).
Figure8
•Tomoverearward,movethetractioncontrol
rearward(Figure9).Whenreversing,lookbehind
forobstructionsandkeepyourhandsonthe
referencebar(Figure7).
