Toro 23518 Service Manual

GROUND DRIVE & TINE SYSTEMS
5-7
Toro 30” Aerator Service Manual
5
Coring Tine Removal & Replacement
1. Remove the bolt holding the tine to the shaft (Fig.
191).
Tine Shaft Installation
1. Slide the tine axle assemblies into the trailing arm
(Fig. 192).
Note: Chains on in picture for orientation purposes
only.

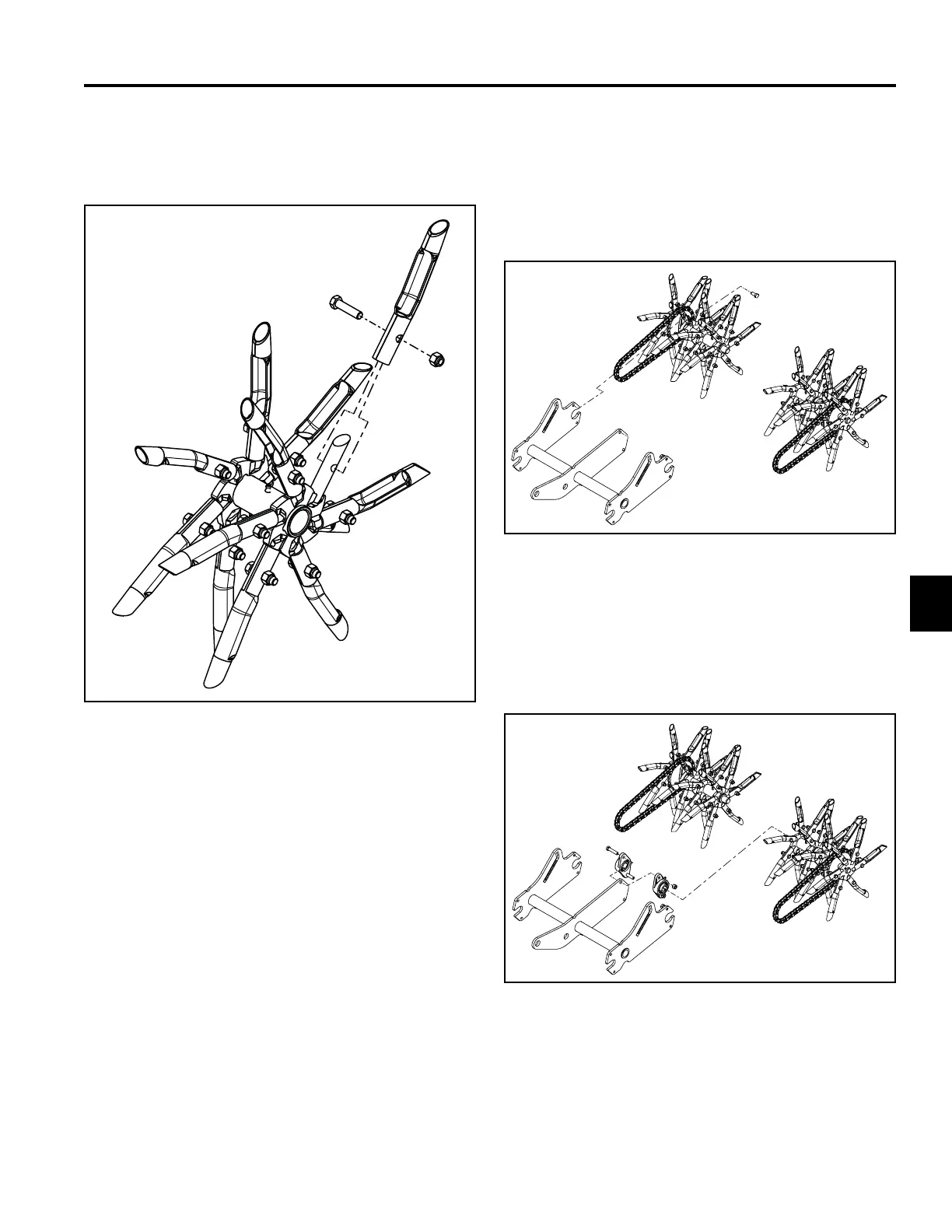

Fig. 191 tine R&R
2. Replace tine. Torque bolt to 20 ft-lbs. (27 Nm)
Fig. 192 trainling arm
2. Apply Loctite
®
242 to the inner ange bearing bolts
and install the bolts through the inner ange bear-
ings. Make sure the grease ttings on the bearings
face the rear of the unit. Torque bolts to 27 ft-lbs.
(37 Nm) (Fig. 193).
Fig. 193 inner ange brg bolt install

Toro 23518 Specifications

General

Engine Type	4-cycle
Engine	Briggs & Stratton
Engine Displacement	127 cc
Tilling Depth	5 in
Start Type	Recoil
Warranty	2 years
