Toro 30605TE - Drive System Maintenance; Adjusting the Traction-Pedal Angle; Changing the Planetary-Gear-Drive Oil

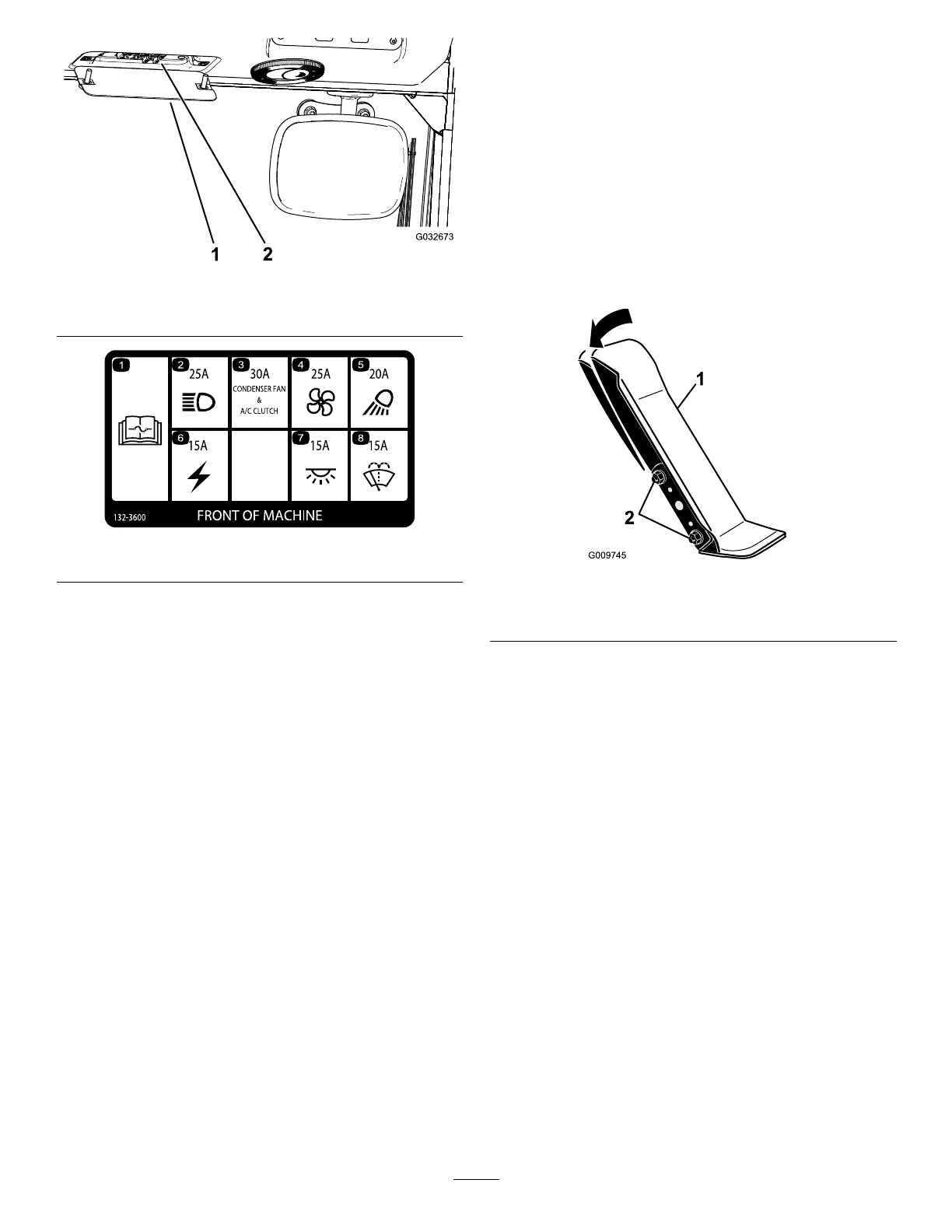

g032673
Figure65
1.Cabfusebox
2.Fuses
decal132-3600
Figure66
DriveSystem
Maintenance
Adjustingthe
Traction-PedalAngle
Youcanadjusttheoperatingangleofthetraction
pedalforyourcomfort.
1.Loosenthe2nutsandboltssecuringtheleftside
ofthetractionpedaltothebracket(Figure67).
g009745
Figure67
1.Tractionpedal2.Mountingnutsandbolts
2.Pivotthepedaltothedesiredoperatingangle
andtightenthenuts(Figure67).
Changingthe
Planetary-Gear-DriveOil
ServiceInterval:Aftertherst50hours
Every800hours/Yearly(whichevercomesrst)
oryearly,whichevercomesrst.
Useahigh-quality,SAE85W-140gearlube.
1.Withthemachineonalevelsurface,positiona
wheelsoacheckplugisatthelowest(6o'clock)
position(Figure68).
