AddingFuel
1.Parkthemachineonalevelsurface.
2.Usingacleanrag,cleanareaaroundfueltank
cap.
3.Removecapfromthefueltank(Figure13).

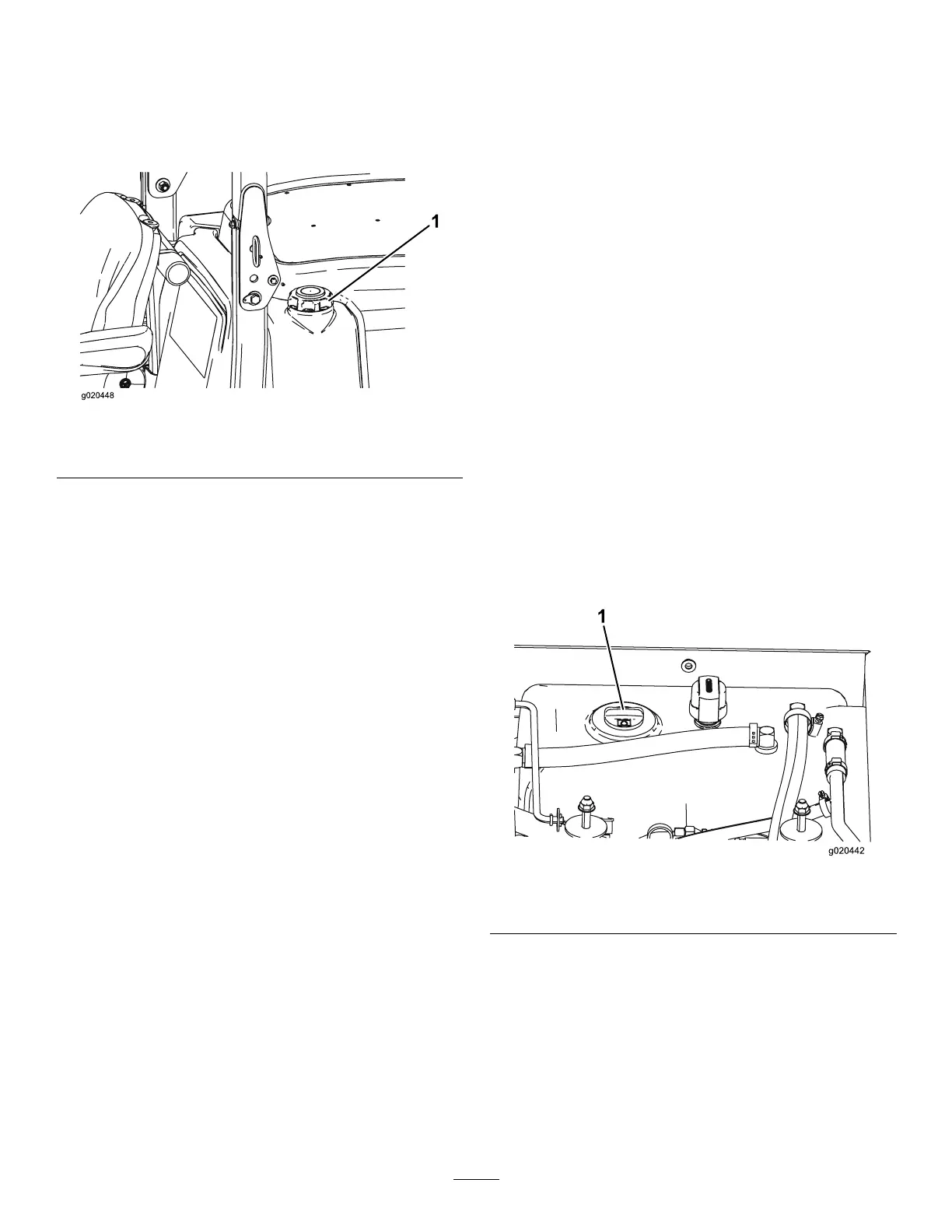

g020448
Figure13
1.Fueltankcap
4.Fillthetankuntilthelevelistothebottomofthe
llerneckwithdieselfuel.
5.Installfueltankcaptightlyafterllingtank.
Note:Ifpossible,llthefueltankaftereach
use.Thiswillminimizepossiblebuildupof
condensationinsidethefueltank.
CheckingtheHydraulicFluid
ServiceInterval:Beforeeachuseordaily
Themachinesreservoirislledatthefactorywith
approximately29L(7.75U.S.gallons)ofhighquality
hydraulicuid.Checkthelevelofthehydraulic
uidbeforetheengineisrststartedanddaily
thereafter.Therecommendedreplacementuidis:
ToroPremiumAllSeasonHydraulicFluid
(Availablein18.9L(5gallon)pailsor208L(55
gallon)drums.SeepartscatalogorT orodistributorfor
partnumbers.)
Alternateuids:IftheTorouidisnotavailable,other
uidsmaybeusedprovidedtheymeetallthefollowing
materialpropertiesandindustryspecications.We
donotrecommendtheuseofsyntheticuid.Consult
withyourlubricantdistributortoidentifyasatisfactory
product.
Note:T orowillnotassumeresponsibilityfordamage
causedbyimpropersubstitutions,souseonly
productsfromreputablemanufacturerswhowillstand
behindtheirrecommendation.
HighViscosityIndex/LowPourPoint
Anti-wearHydraulicFluid,ISOVG46
MaterialProperties:
St@40°C44to50 Viscosity,ASTMD445
St@100°C7.9to8.5
ViscosityIndexASTMD2270
140to160
PourPoint,ASTMD97-34°Fto-49°F
IndustrySpecications:VickersI-286-S(Quality
Level),VickersM-2950-S
(QualityLevel),Denison
HF-0
Note:Manyhydraulicuidsarealmostcolorless,
makingitdifculttospotleaks.Areddyeadditivefor
thehydraulicsystemoilisavailablein20ml(2/3oz)
bottles.Onebottleissufcientfor15to22L(4to6
USgallons)ofhydraulicoil.Orderpartno.44-2500
fromyourauthorizedTorodistributor.
1.Positionthemachineonalevelsurface,lower
thecuttingunits,stoptheengine,andremove
thekey.
2.Unlatchtheseat,raiseit,andengagetheprop
rod.
3.Cleantheareaaroundthellerneckandcapof
thehydraulictank(Figure14).Removethecap
fromthellerneck.
g020442
Figure14
1.Hydraulictankcap
4.Removethedipstickfromthellerneckand
wipeitwithacleanrag.Insertthedipstickinto
thellerneck;thenremoveitandchecktheuid
level.Theuidlevelshouldbebetweenthe2
marksonthedipstick.
5.Ifthelevelislow,addtheappropriateuidto
raisetheleveltotheuppermark.
6.Installthedipstickandcapontothellerneck.
