20
1. Mounts weights to rear of traction unit with 2 capscrews
(1/2 x 2-3/4 in.), lock washers, flat washers, and spacers
(Fig. 14). Position the flat washer and spacer between
weight and chassis with flat washer against weight.

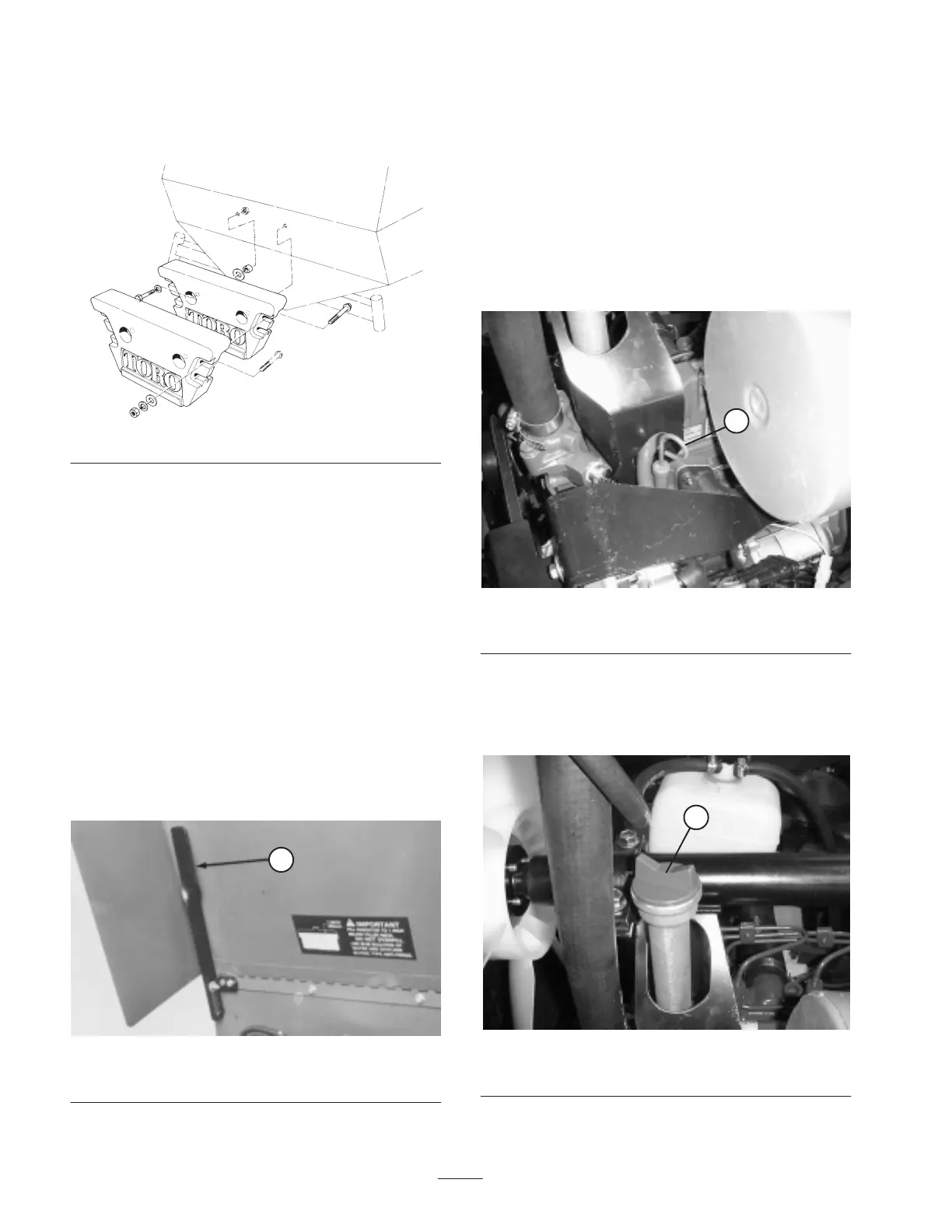

Figure 14
2. Mount remaining weight to mounted weight with 2
capscrews (1/2 x 3-1/2 in.), lock washers, nuts, and 4
flat washers.
Before Operating
Hood Prop
(Model 30626 only)
1. Position the machine on a level surface.
2. Disengage hood latch and open the hood.
3. Slide bottom of hood prop (Fig. 15) out of retaining
bracket. Lower hood prop, pivot upward, then
downward to prop up hood.
1
Figure 15
1. Hood prop
Check Engine Oil
The engine is shipped with 4 qt (3.8 l) of oil in the
crankcase; however, level of oil must be checked before
and after the engine is first started.
1. Park machine on a level surface, stop engine and
remove key from ignition switch. Open hood and install
hood prop.
2. Remove dipstick (Fig. 16), wipe clean and reinstall
dipstick. Remove dipstick and check oil level. Oil level
should be up to FULL mark on dipstick
1
Figure 16
1. Dipstick
3. If oil is below FULL mark, remove fill cap and add
SAE 10W–30 CD, CE, CF, CF–4 or CG–4
classification oil until level reaches FULL mark on
dipstick. DO NOT OVERFILL.
1
Figure 17
1. Oil fill
4. Install oil fill cap and close hood.
