Toro 38614 - Product Overview; Operation; Filling the Fuel Tank

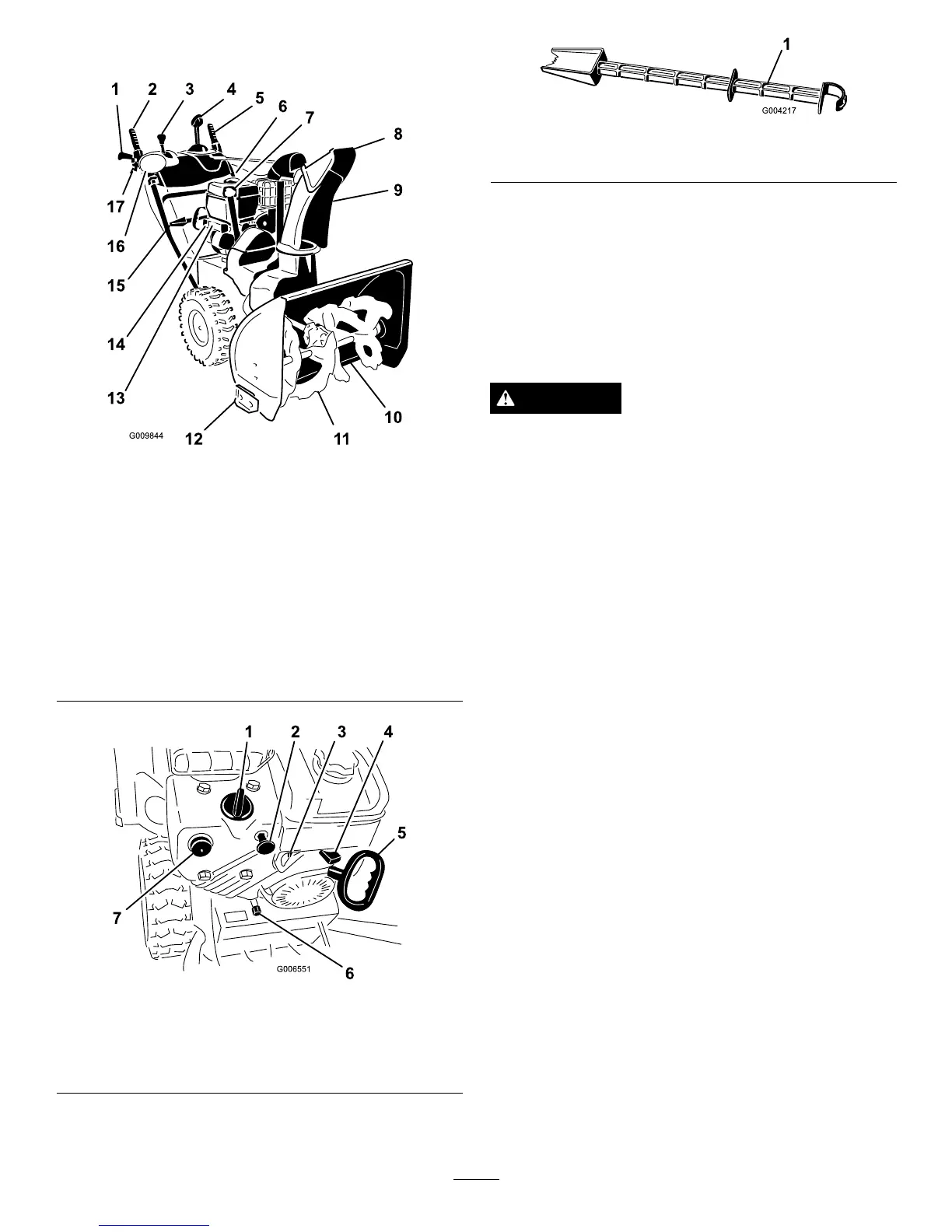

ProductOverview
Figure21
1.Hand-grip(2)10.Scraper
2.Auger/impellerlever
11.Auger
3.Speedselectorlever12.Skid(2)
4.QuickStick™discharge
chutecontrol
13.Electricstarterbutton
5.Tractionlever14.Electricstarterplug-in
6.Fueltankcap
15.Snowcleanouttool
7.Engineoillltube/dipstick
16.Headlight
8.Chutedeector17.Wheelclutchlever(2;
models38634,38644,and
38654only)
9.Dischargechute
Figure22
1.Choke
5.Recoilstarter
2.Ignitionswitch
6.Oildrainplug
3.Fuelshutoffvalve
7.Primer
4.Throttle
Figure23
1.Snowcleanouttool(attachedtothehandle)
Operation
Note:Determinetheleftandrightsidesofthemachine
fromthenormaloperatingposition.
FillingtheFuelTank
DANGER
Gasolineisextremelyammableandexplosive.A
reorexplosionfromgasolinecanburnyouand
others.
•Topreventastaticchargefromignitingthe
gasoline,placethecontainerand/ormachine
onthegroundbeforelling,notinavehicleor
onanobject.
•Fillthetankoutdoorswhentheengineiscold.
Wipeupspills.
•Donothandlegasolinewhensmokingoraround
anopenameorsparks.
•Storegasolineinanapprovedfuelcontainer,out
ofthereachofchildren.
Fillthefueltankwithfreshunleadedregulargasoline
fromamajorname-brandservicestation(Figure24).
Important:Toreducestartingproblems,add
fuelstabilizertothefuelallseason,mixingitwith
gasolinelessthan30daysold.
Do not add oil to
the gasoline.
14
