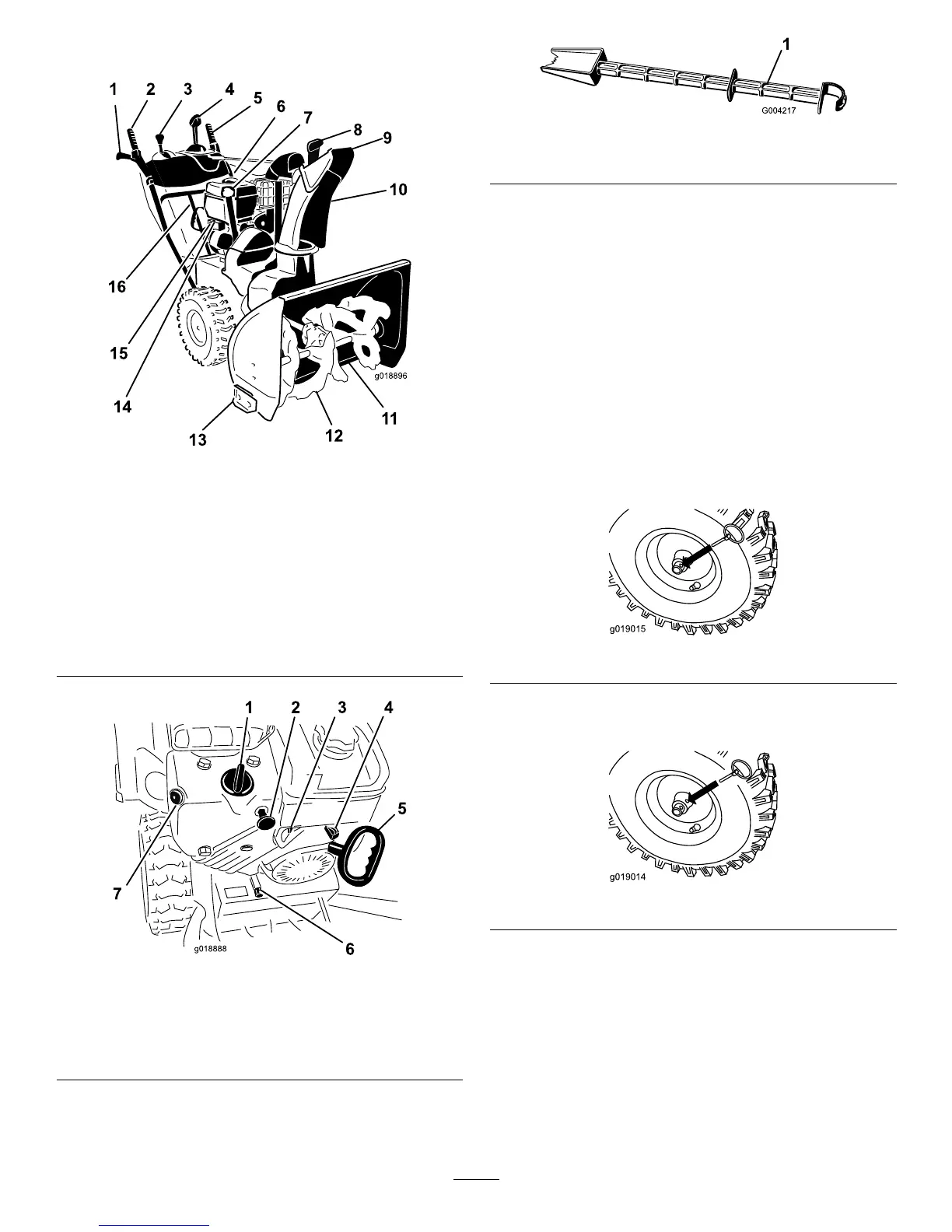

ProductOverview
g018896
Figure14
1.Hand-grip(2)9.Chutedeector
2.Auger/impellerlever
10.Dischargechute
3.Speedselectorlever11.Scraper
4.Quickleverdischarge
chutecontrol
12.Auger
5.Tractionlever
13.Skid(2)
6.Fueltankcap14.Electricstarterbutton
7.Engineoillltube/dipstick
15.Electricstarterplug
8.Chutedeectortrigger16.Snowcleanouttool
g018888
Figure15
1.Choke
5.Recoilstarter
2.Ignitionswitch
6.Oildrainplug
3.Fuelshutoffvalve
7.Primer
4.Throttle
Figure16
1.Snowcleanouttool(attachedtothehandle)
Operation
Note:Determinetheleftandrightsidesofthemachine
fromthenormaloperatingposition.
FreewheelingorUsingthe
Self-propelDrive
Youcanoperatethesnowthrowerwiththeself-propelfeature
engagedordisengaged(freewheeling).
Tofreewheel,inserttheaxlepinsthroughtheaxleholes,but
notthroughthewheelhubs(Figure17).
g019015
Figure17
Toself-propel,inserttheaxlepinsthroughtheholesinthe
wheelhubsandtheinneraxleholes(Figure18).
g019014
Figure18
