Toro 38810 - Checking and Adjusting the Auger;Impeller Cable; Checking the Auger Gearbox Oil Level

Figure35
3.Loosenortightentheturnbuckletoadjustthespring
lengthto2.18inches(5.5cm).
3
g019016
Figure36
1.Jamnut
3.Spring
2.Turnbuckle
4.2.18inches(5.5cm)
4.Tightenthejamnut(Figure36),ensuringthereisslight
tensiononthecable.
5.Ifthetractioncableisproperlyadjustedbutaproblem
remains,contactanAuthorizedServiceDealer.
CheckingandAdjustingthe
Auger/ImpellerCable
ServiceInterval:Aftertherst2hours—Inspectthe
auger/impellercableandadjustitif
necessary.
Yearly—Inspecttheauger/impellercableandadjust
orreplaceitifnecessary.
1.Loosenthejamnut.

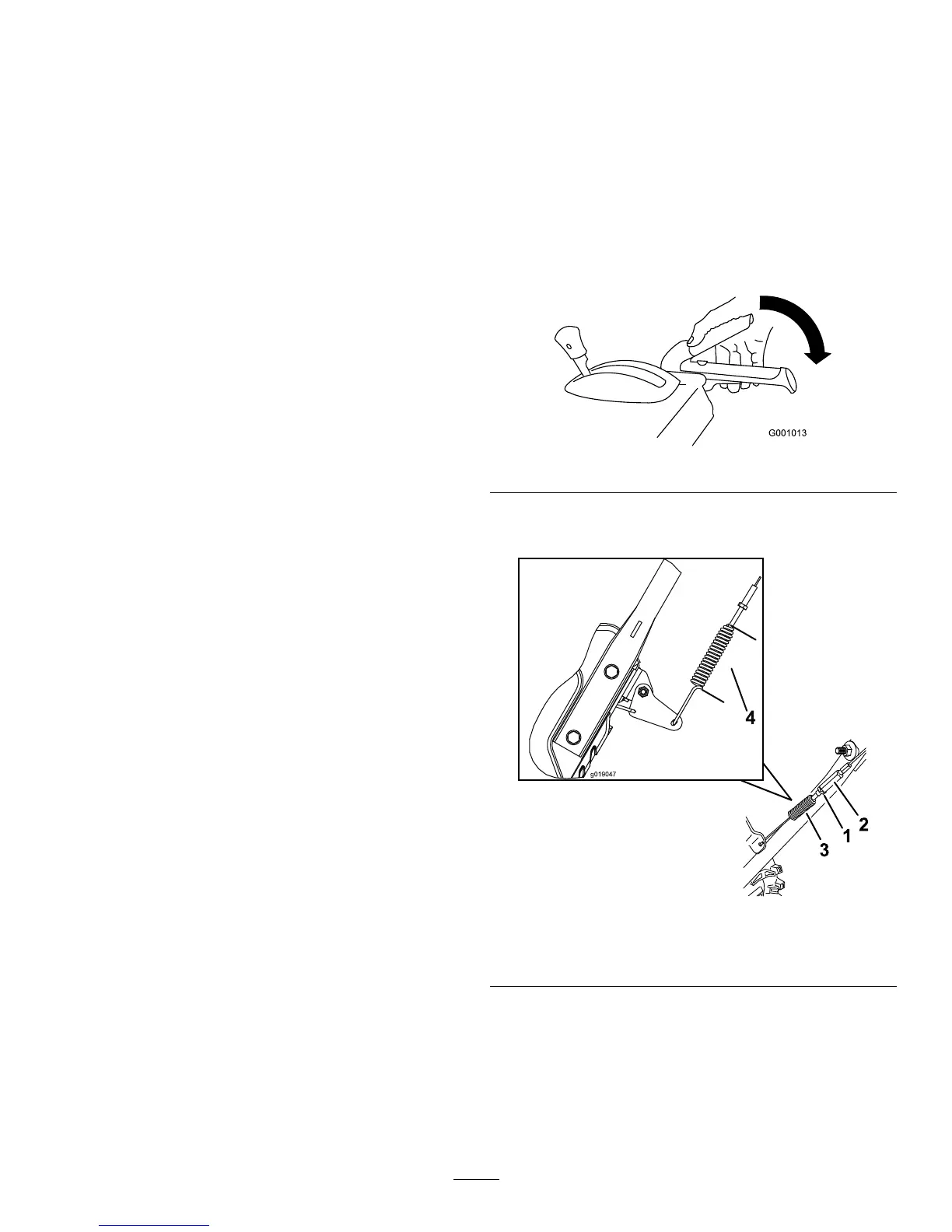

2.Engagetheauger/impellerleverandholditinplace
(
Figure37).
Figure37
3.Loosenortightentheturnbuckletoadjustthespring
lengthto2.75inches(7cm)(Figure38).
g019017
2
1
3
Figure38
1.Jamnut
3.Spring
2.Turnbuckle
4.2.75inches(7cm)
4.Tightenthejamnut(Figure38),ensuringthereisslight
tensiononthecable.
5.Iftheauger/impellercableisproperlyadjustedbut
aproblemremains,contactanAuthorizedService
Dealer.
CheckingtheAugerGearbox
OilLevel
ServiceInterval:Yearly—Checktheaugergearboxoiland
addoilifnecessary.
1.Movethemachinetoalevelsurface.
2.Cleantheareaaroundthepipeplug(
Figure39).
22
