Toro 74143 - Product Overview; Controls

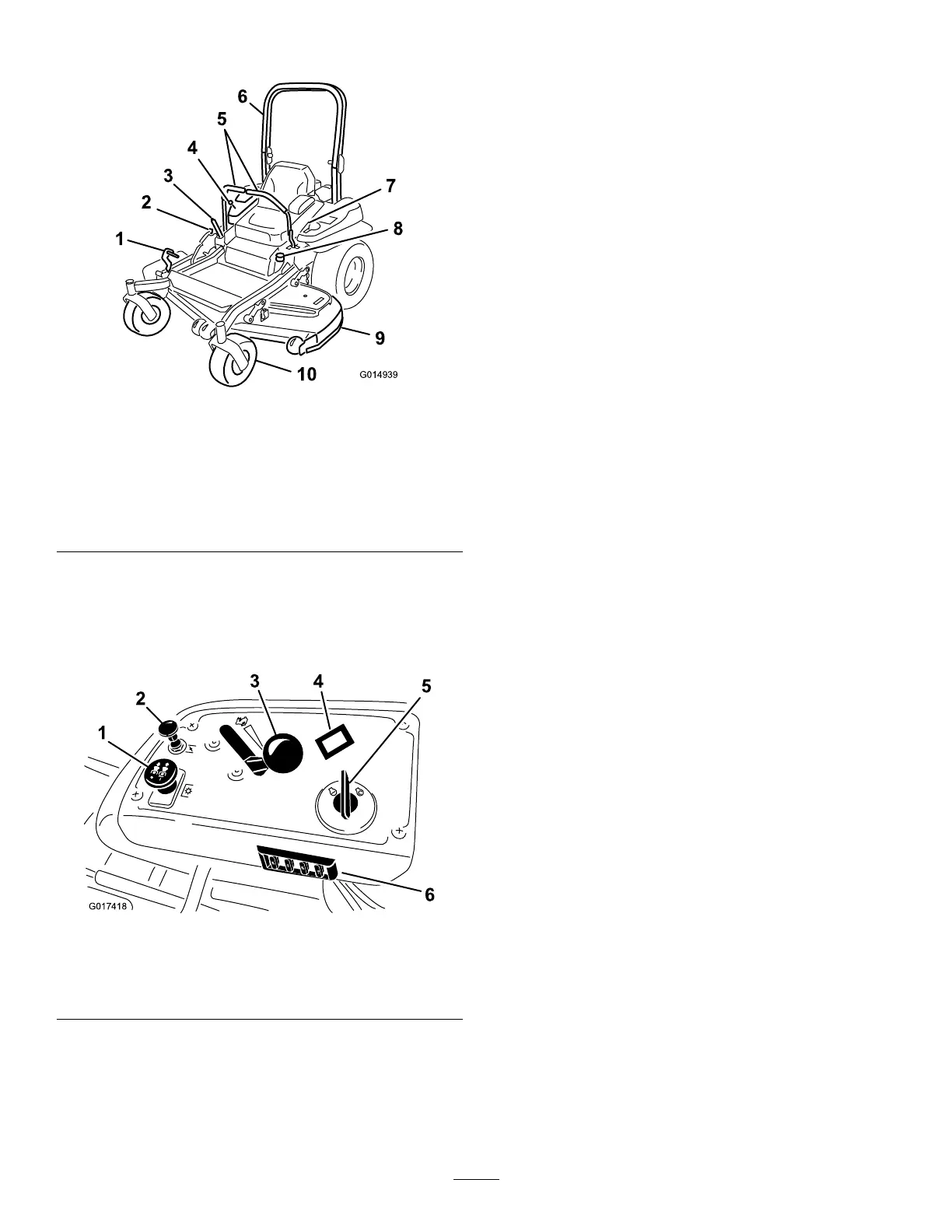

ProductOverview
G014939
Figure4
1.Height-of-cutdeck-lift
pedal
6.Rollbar
2.Transportlock
7.Seatbelt
3.Parking-brakelever8.Fuelcap
4.Controls
9.Mowerdeck
5.Motion-controllevers
10.Casterwheel
Controls
Becomefamiliarwithallthecontrolsbeforeyoustartthe
engineandoperatethemachine(Figure4andFigure5).
G017418
25
25
10
15
1
2
3
4
5
6
Figure5
1.PTOSwitch
4.Hourmeter
2.Choke
5.Ignitionswitch
3.Throttlecontrol6.Fuses
HourMeter
Thehourmeterrecordsthenumberofhourstheenginehas
operated.Itoperateswhentheengineisrunning.Usethese
timesforschedulingregularmaintenance(Figure5).
ThrottleControl
ThethrottlecontrolisvariablebetweenFastandSlow.
Choke
Usethechoketostartacoldengine.Pullthechokeknobup
toengageit.
Blade-ControlSwitch(PTO)
Theblade-controlswitch(PTO)isusedtoengagetheelectric
clutchanddrivethemowerblades.Pulltheswitchupto
engagethebladesandrelease.Todisengagetheblades,
pushtheblade-controlswitch(PTO)downormovea
motion-controlleverintotheneutral-lockposition.
IgnitionSwitch
Thisswitchisusedtostartthemowerengineandhas3
positions:Start,RunandOff.
Motion-ControlLevers
Themotion-controlleversareusedtodrivethemachine
forward,reverse,andturneitherdirection.
Neutral-LockPosition
Theneutral-lockpositionisusedwiththesafety-interlock
systemtoengageandtodeterminetheneutralposition.
FuelShutoffValve
Closethefuelshutoffvalve(undertheseat)whentransporting
orstoringthemower.
Attachments/Accessories
AselectionofToroapprovedattachmentsandaccessoriesis
availableforusewiththemachinetoenhanceandexpand
itscapabilities.ContactyourAuthorizedServiceDealeror
Distributororgotowww .Toro.comforalistofallapproved
attachmentsandaccessories.
