Toro 74538 - Operating the Ignition Switch; Using the Fuel Shut-Off Valve; Starting and Stopping the Engine

G008959
1
2

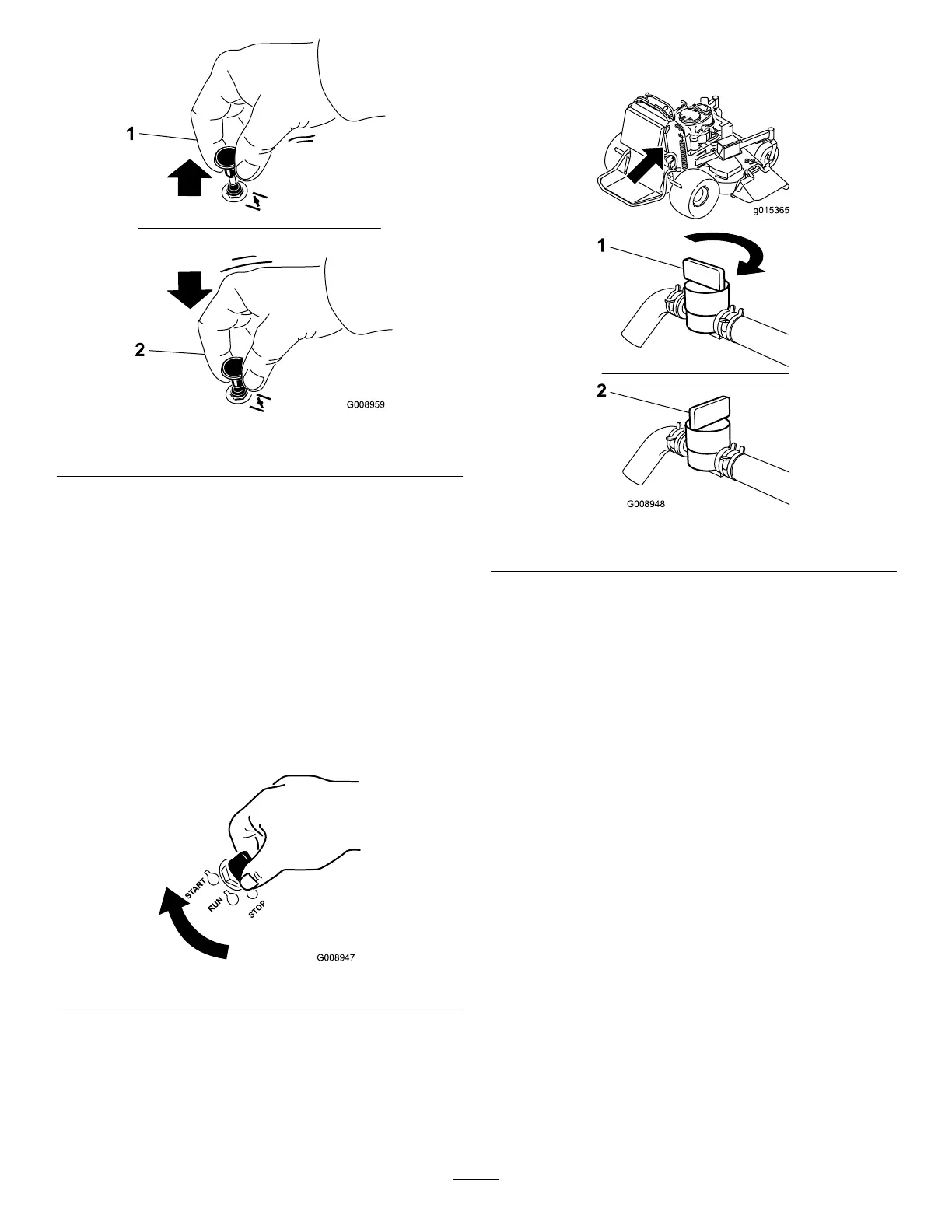

Figure13
1.On2.Off
OperatingtheIgnitionSwitch
1.TurntheignitionkeytotheStartposition
(Figure14).Whentheenginesstarts,releasethekey.
Important:Donotengagestarterformore
than5secondsatatime.Iftheenginefails
tostartallowa15secondcool-downperiod
betweenattempts.Failuretofollowthese
instructionscanburnoutthestartermotor.
Note:Additionalstartingcyclesmayberequired
whenstartingtheengineforthersttimeafterthe
fuelsystemhasbeenwithoutfuelcompletely.
START
RUN
ST OP
G008947
Figure14
2.Turntheignitionkeytostoptostoptheengine.
UsingtheFuelShut-OffValve
Closethefuelshut-offvalvefortransport,maintenance,
andstorage(Figure15).
Ensurethefuelshut-offvalveisopenwhenstarting
theengine.
g015365
G008948
1
2
Figure15
1.On2.Off
StartingandStoppingthe
Engine
StartingtheEngine
1.Connectthewirestothesparkplugs.
2.Openthefuelvalve.
3.Movetherightmotioncontrollevertoneutral
lockedposition.
4.Settheparkingbrake;refertoSettingtheParking
Brake.
5.Movethebladecontrolswitch(PTO)totheOff
position.
6.MovethethrottlelevermidwaybetweentheSlow
andFastpositions.
Note:Awarmorhotenginemaynotrequire
choking.
