Lubrication
GreasewithNo.2generalpurposelithiumbaseor
molybdenumbasegrease.
HowtoGrease
1.DisengagethePTOandsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Cleanthegreasettingswitharag.Makesureto
scrapeanypaintoffthefrontofthetting(s).
4.Connectagreaseguntothetting.Pumpgrease
intothettingsuntilgreasebeginstooozeoutof
thebearings.
5.Wipeupanyexcessgrease.
LubricatingtheMachine
ServiceInterval:Every50hours—Greasethelift
linkage(moreoftenindirtyordusty
conditions).
Every50hours—Greasethemower
deckspindles(moreoftenindirtyor
dustyconditions).
Every800hours/Yearly(whichever
comesrst)—Greasethefrontwheel
bearings(moreoftenindirtyordusty
conditions).
Every800hours/Yearly(whichever
comesrst)—Greasethefrontcaster
pivots(moreoftenindirtyordusty
conditions).

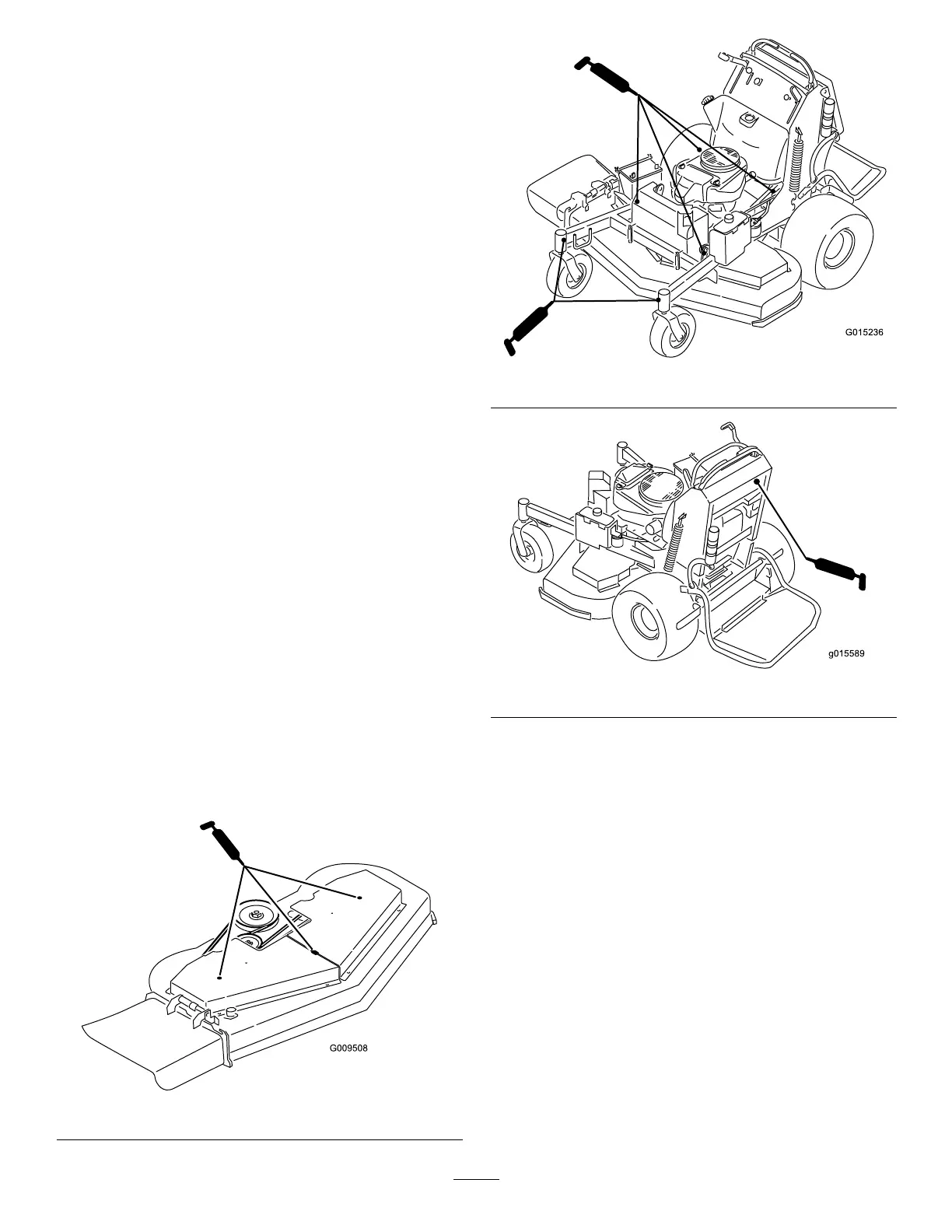

Usethefollowinggraphicsforlocatingthegreasepoints.
Figure38
G015236
Figure39
g015589
Figure40
GreasingtheFrontCaster
Pivots
ServiceInterval:Yearly
Lubricatethefrontcasterpivotsonceayear.
1.Removethedustcapandadjustthecasterpivots.
Keepthedustcapoffuntilgreasingisdone.Referto
AdjustingtheCasterPivotBearinginMaintenance
Section.
2.Removethehexplug.Threadagreasezerkintothe
hole.
3.Pumpgreaseintothezerkuntilitoozesoutaround
thetopbearing.
4.Removethegreasezerkinthehole.Installthehex
plugandcap.
