1.Removethelocknut,bolt,springandspacerholding
thedeectortothepivotbrackets(Figure92).
Removedamagedorworngrassdeector.

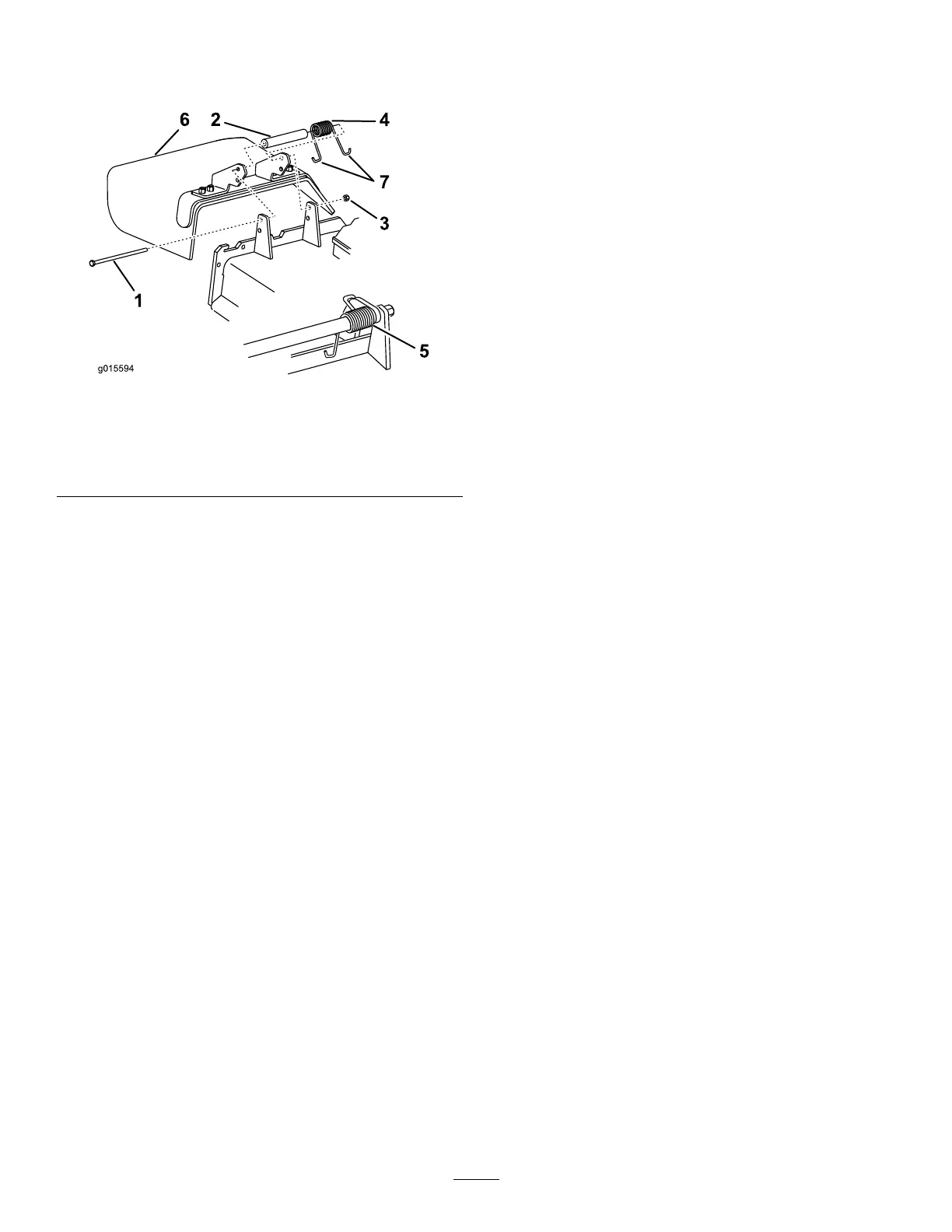

g015594
1
6 2
4
7
3
5
Figure92
1.Bolt
5.Springinstalled
2.Spacer6.GrassDeector
3.Locknut
7.Jhookendofspring
4.Spring
2.Placespacerandspringontograssdeector.Place
oneJendofspringbehinddeckedge.
Note:MakesureoneJendofspringisinstalled
behinddeckedgebeforeinstallingtheboltasshown
in
Figure92.
3.Installboltandnut.PlaceoneJhookendofspring
aroundgrassdeector(Figure92).
Important:Thegrassdeectormustbeable
torotate.Liftthedeectoruptothefullopen
positionandensurethatitrotatesintothefull
downposition.
Cleaning
CleaningUndertheMower
ServiceInterval:Beforeeachuseordaily
Removethegrassbuildupunderthemowerdaily.
1.DisengagethePTO,movethemotioncontrollevers
totheneutrallockedpositionandsettheparking
brake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Raisethefrontofthemachineandusejackstandsto
supportthemower.
WasteDisposal
Engineoil,batteries,hydraulicoil,andenginecoolant
arepollutantstotheenvironment.Disposeofthese
accordingtoyourstateandlocalregulations.
