CheckingtheEngine-OilLevel
ServiceInterval:Beforeeachuseordaily—Check
theengine-oillevel.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,shutofftheengine,and
removethekeyfromthekeyswitch.
2.Makesurethattheengineisstopped,level,
andcoolsothattheoilhastimetodraininto
thesump.

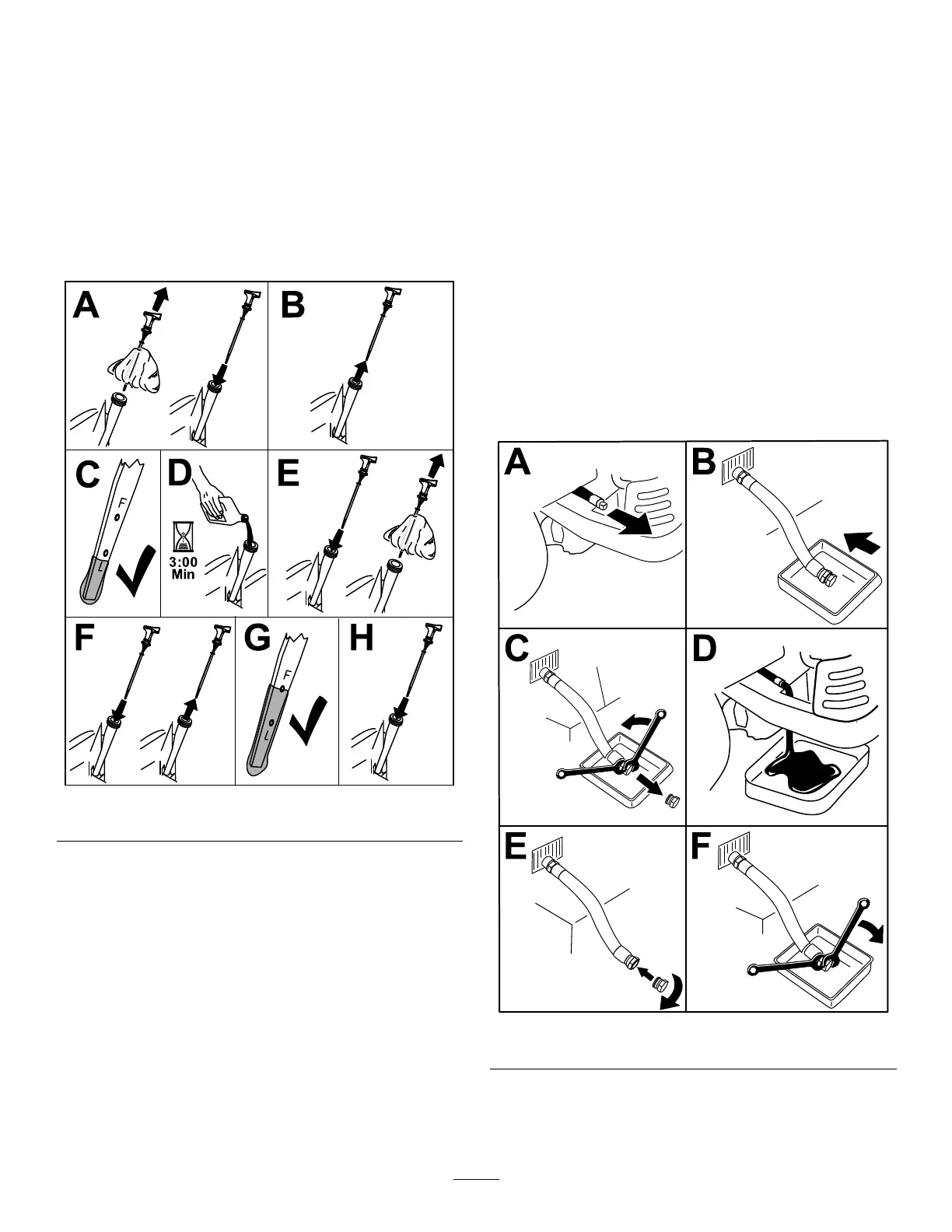

3.Checktheengine-oillevel(Figure30).
g201307
Figure30
ChangingtheEngineOilandthe
Engine-OilFilter
ServiceInterval:Every100hours—Changethe
engineoilandtheengine-oillter.
Note:Thedrainplugisattachedtothedrainhose.
Note:Disposetheusedoilatarecyclingcenter.
Fillwithoilasspeciedinthetable(Figure29).
1.Parkthemachinesothatthedrainsideisslightly
lowerthantheoppositesidetoensurethatthe
oildrainscompletely.
2.Disengagetheblade-controlswitchandmove
themotion-controlleversoutwardtothePARK
position.
3.Shutofftheengine,removethekeyfromthe
keyswitch,andwaitforallmovingpartstostop
beforeleavingtheoperatingposition.
g027934
Figure31
4.T orquetheplugto14N·m(125in-lb).
