E.Usinga0.010inchthick-feelergauge,verifythat
agapispresentbetweentherotorandarmature
faceonbothsidesofthebrakepoleasshownin
Figure74andFigure75.
Note:Duetothewaytherotorandarmature
faceswear(peaksandvalleys),itissometimes
difculttomeasurethetruegap.

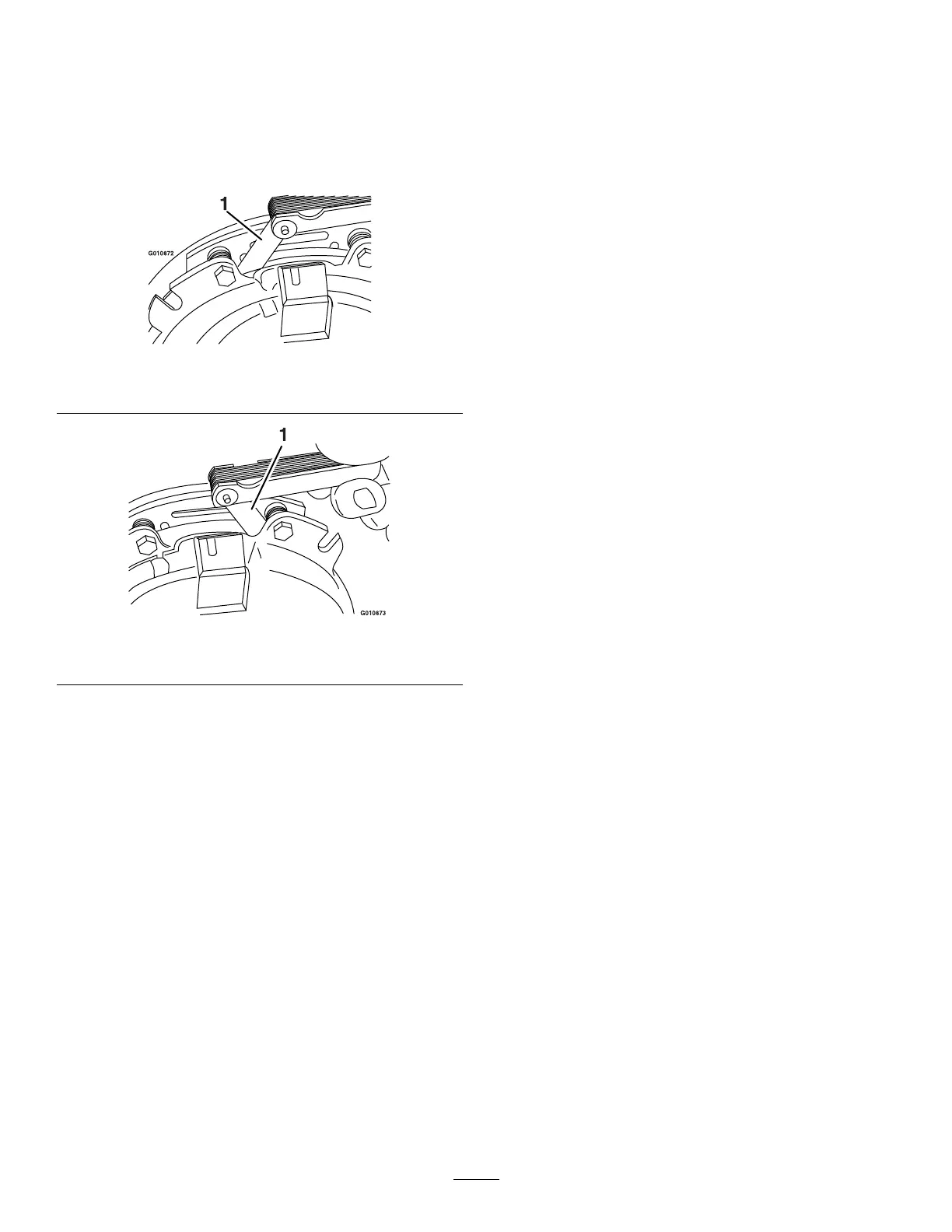

Figure74
1.Feelergauge
Figure75
1.Feelergauge
•Ifthegapislessthan0.010inch,theninstall
theshimandrefertoTroubleshooting(page
67).
•Ifthegapissufcient,proceedtothesafety
checkinstepF.
F.Performthefollowingsafetycheck:
i.Sitontheseatandstarttheengine.
ii.Makesurethatthebladesdonotengage
whentheblade-controlswitch(PTO)
isintheOFFpositionandtheclutchis
disengaged.
Note:Iftheclutchdoesnot
disengage,installtheshim,andreferto
Troubleshooting(page67).
iii.Engageanddisengagetheblade-control
switch(PTO)10consecutivetimesto
ensurethattheclutchisfunctioning
properly.
Note:Iftheclutchdoesnotengage
properly,refertoTroubleshooting(page
67).
