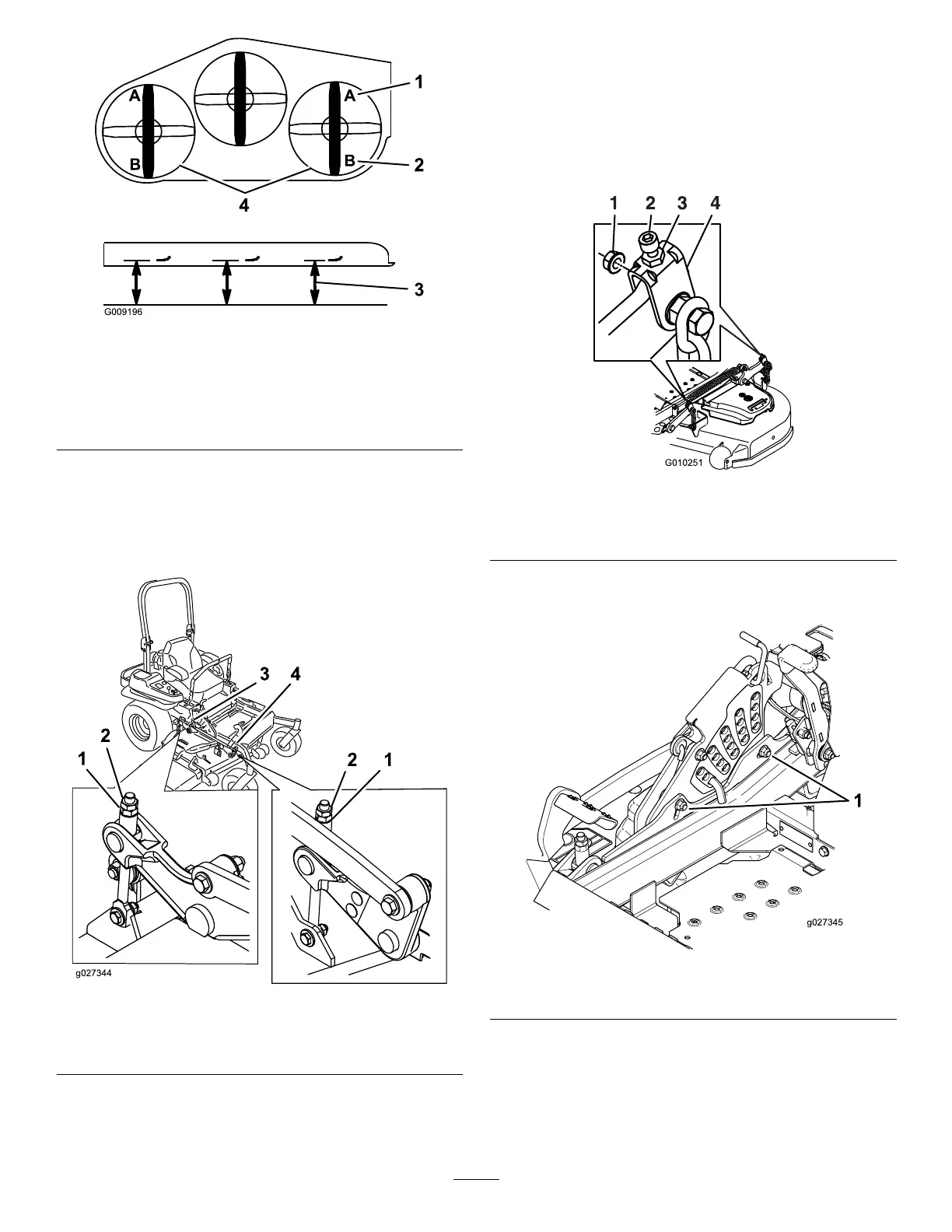

Figure94
1.7.6cm(3inches)at
positionAiscorrect
3.Measureherefromthe
bladetiptothehard
surface
2.8.3cm(3-1/4inches)at
positionBiscorrect
4.MeasureatpositionAand
Bonbothsides
10.Fine-tunetheadjustmentnutonthefrontdeck-lift
assemblybyturningit(Figure95).
Note:Toincreasetheheight,turntheadjustment
nutclockwise;todecreasetheheight,turnthenut
counterclockwise.
g027344
1
2
2 1
3 4
Figure95
1.Adjustmentnut3.Reardeckadjustment
2.Jamnut4.Frontdeckadjustment
11.FormowerdecksshowninFigure96,ne-tunethe
adjustmentnutonthefrontdeck-liftassemblyby
turningit(Figure96).
Note:Toincreasetheheight,turntheadjustment
nutclockwise;todecreasetheheight,turnthenut
counterclockwise.
Note:Ifthefrontdecklinksdonothaveenough
adjustmenttoachieveaccuratecutheight,youcan
utilizethesingle-pointadjustmenttogainmore
adjustment.
Figure96
1.Adjustmentnut3.Reardeckadjustment
2.Jamnut4.Frontdeckadjustment
12.Toadjustthesingle-pointsystem,loosenthe2boltsat
thebottomoftheheight-of-cutplate(Figure97).
Figure97
1.Boltsatthebottomoftheheight-of-cutplate
