Note:T oincreasetheheight,turnthe
adjustmentnutclockwise;todecrease,turnit
counterclockwise.
Note:Ifthefrontdecklinksdonothaveenough
adjustmenttoachieveaccuratecutheight,you
canusethesingle-pointadjustmenttogain
moreadjustment.
g027344

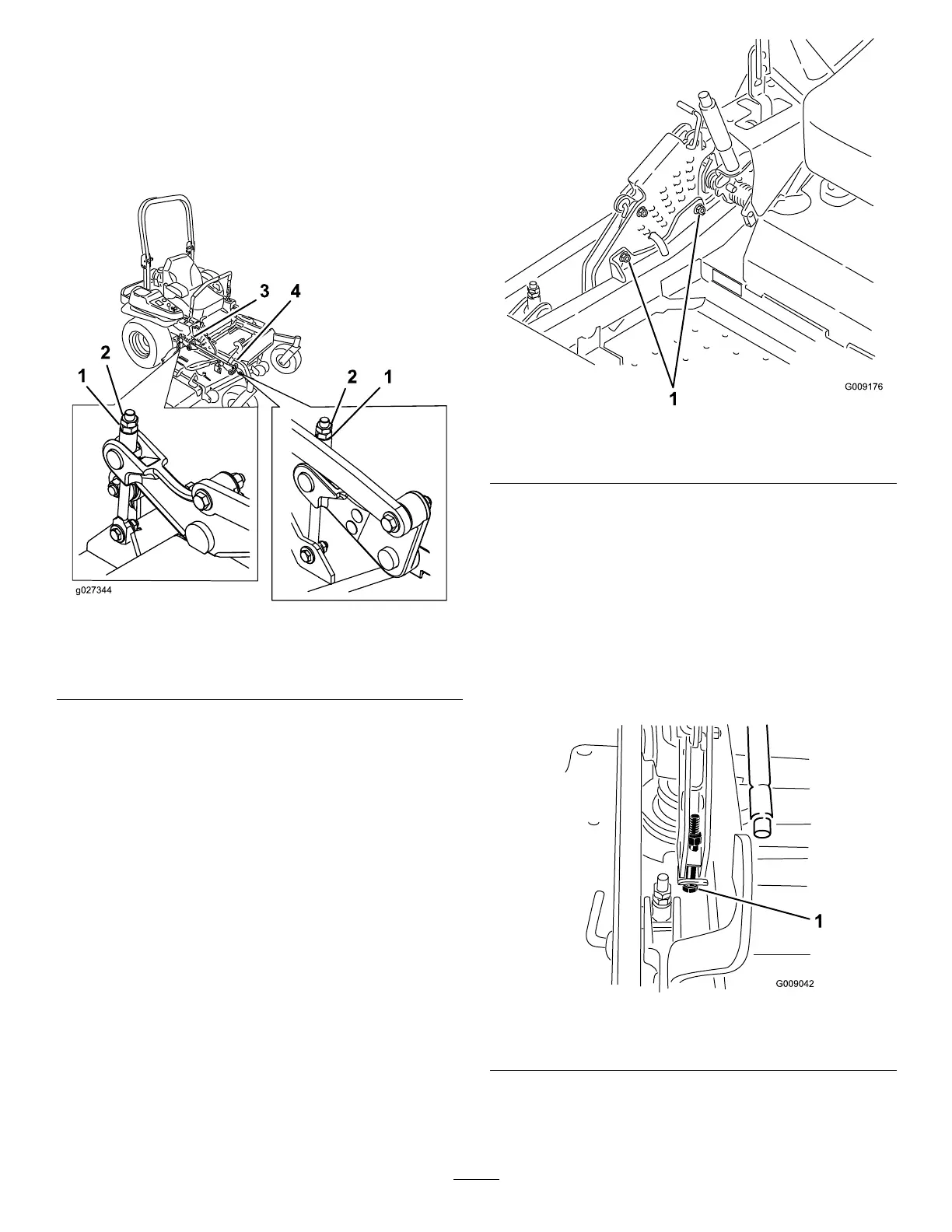

Figure92
1.Adjustmentnut3.Reardeckadjustment
2.Jamnut4.Frontdeckadjustment
11.Toadjustthesingle-pointsystem,loosenthe
2boltsatthebottomoftheheight-of-cutplate
(Figure93).
g009176
Figure93
1.Boltsatthebottomoftheheight-of-cutplate
12.Ifthedeckistoolow,tightenthesingle-point
adjustmentboltbyrotatingitclockwise.If
thedeckistoohigh,loosenthesingle-point
adjustmentboltbyrotatingitcounterclockwise
(Figure94).
Note:Loosenortightenthesingle-point
adjustmentboltenoughtomovethe
height-of-cutplatemountingboltsatleast1/3
thelengthoftheavailabletravelintheirslots.
Thisregainssomeupanddownadjustmenton
eachofthe4decklinks.
g009042
Figure94
1.Single-pointadjustmentbolt
13.Tightenthe2boltsatthebottomofthe
height-of-cutplate(Figure93).
