8. After the two J–pins are seated through the
mower’s mounting brackets, using the
attachment lift and your hand on the right front
adjustable mower wheel bracket (Fig. 7),
position the mower so its attachment bar fits into
the mid Attach–A–Matic mount.
POTENTIAL HAZARD
• The “scissor” formed by the mower
mounting brackets and the attachment lift
arm is dangerous.
WHAT CAN HAPPEN
• Hands and fingers can get caught between
the mower parts and the tractor and be
injured.
HOW TO AV
OID THE HAZARD
• Keep hands away from moving parts while
operating the attachment lift.
• Always position the mower with your hand
on the right front mower wheel bracket.
• Never try to position the mower with your
hands on the mower mounting brackets or
below the mower housing.
m–35211

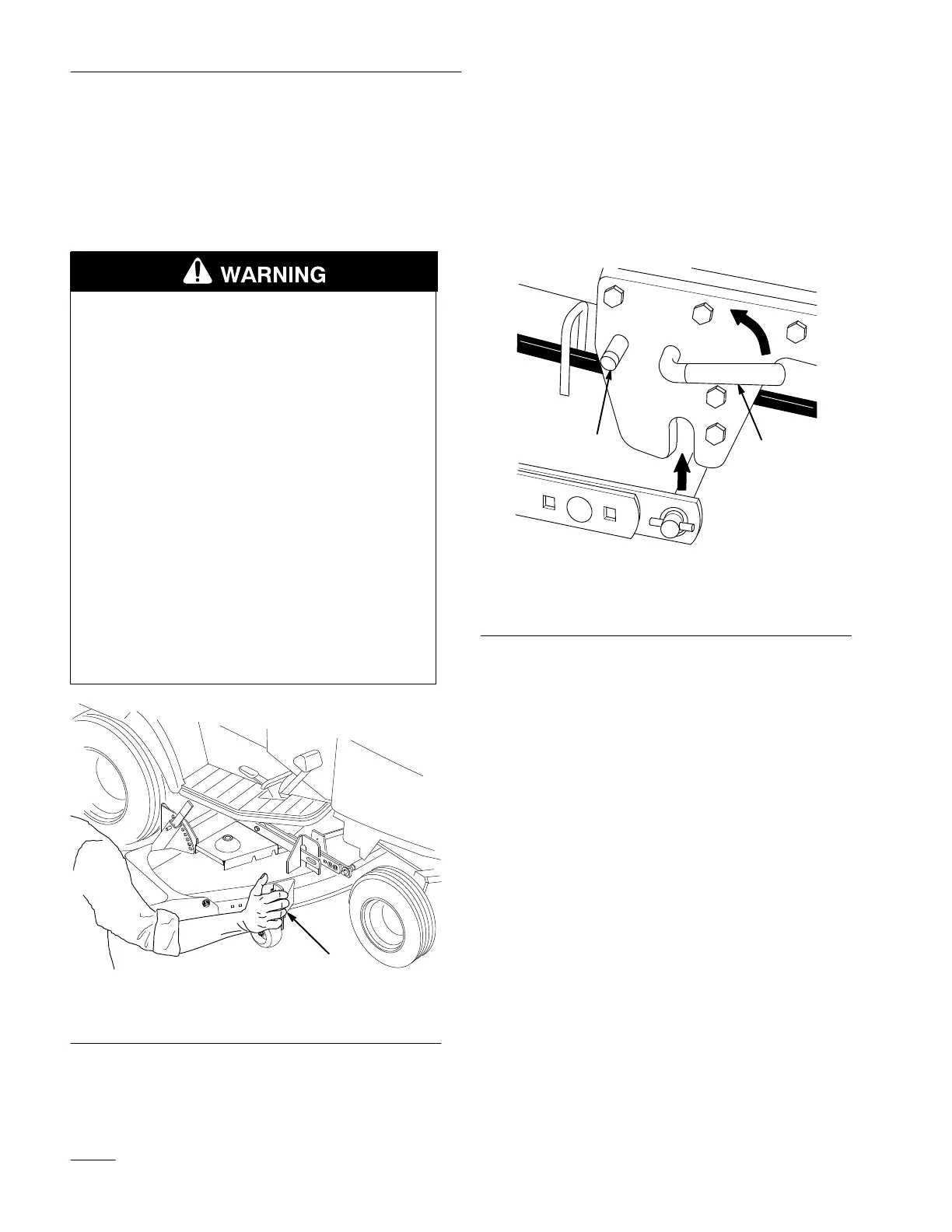

Figure 7
1. Place
hand here
9. Turn the lever of the Attach–A–Matic
counterclockwise to lock the mower to the
tractor (Fig. 8).
10. Set the parking brake, lower the attachment lift,
and turn the ignition key to “STOP” to stop the
engine. Then remove the ignition key.
m–3611
1
2
3
Figure 8
1. Attach–A–Matic
button
2. Attach–A–Matic
lever
3. Lock
