Installation
12
7. Loosen the cam nuts and equally rotate the
left–hand and right–hand cams down to raise the
front of the deck, or up to lower the front of the
deck. Tighten the nuts.
8. Repeat steps 4–7 until the slope of the blade is
approximately 1/4” (7 mm) lower in the front
than it is in the rear.
Removing
the Mower
1. Apply the parking brake, start the tractor, and
raise the attachment lift.
2. Get off the tractor. Place the mower
height–of–cut lever in the lowest cut position.
3. Lower the deck until its weight is completely on
its wheels, not on the tractor.
4. Turn the ignition key to “STOP” to stop the
engine. Remove the ignition key.
5. Remove the grille.
POTENTIAL HAZARD
• Components under the hood will be hot if
the tractor has been running.
WHAT CAN HAPPEN
• Touching hot components can cause burns.
HOW TO AV
OID THE HAZARD
• Allow the tractor to cool before performing
maintenance or touching components
under the hood.

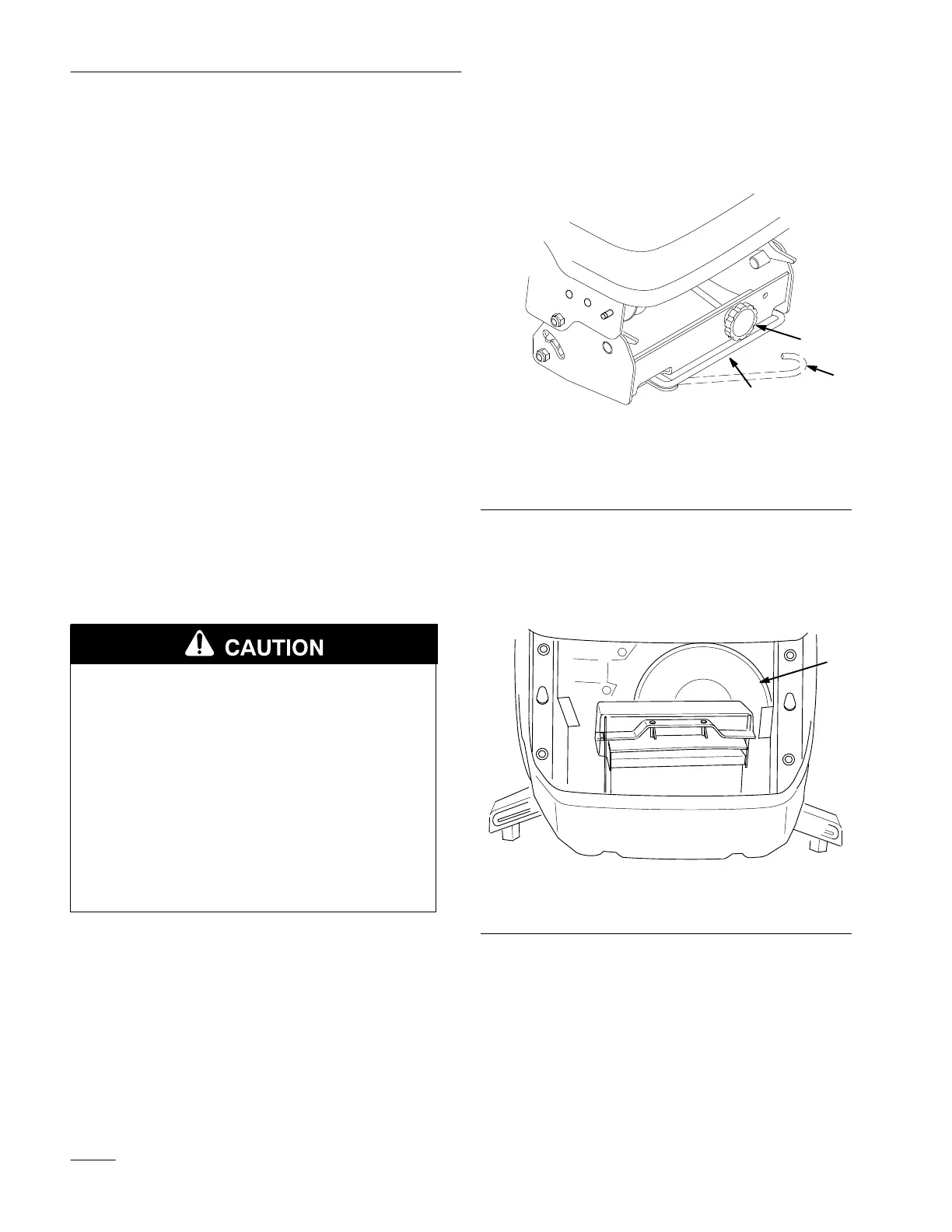

6. Release the belt tension release arm on the
pulley box to release the tension on the drive belt
(Fig. 19).
m–34581
2
3
Figure 19
1. Belt
tension release arm
2.
Belt tension adjustment
knob
3.
Belt tension released
7. Remove the belt from around the PTO pulley
(Fig. 20). Additional belt slack can be obtained
(if needed) by turning the belt tension
adjustment knob.
m–3454
1
Figure 20
1. PTO
pulley
