Leveling the Mower Deck (continued)
G448684

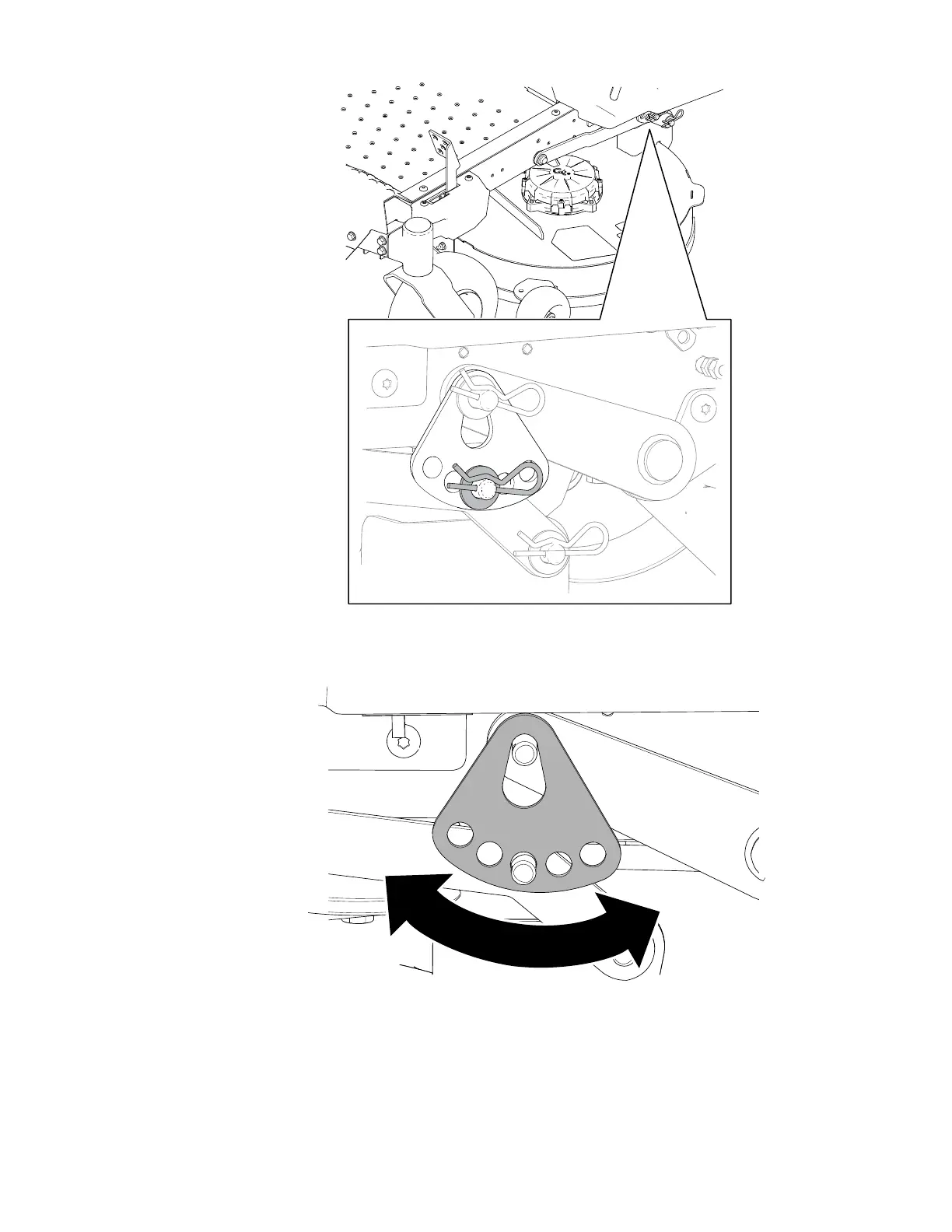

B. Rotate the height-of-cut plate to a different hole so that it supports the weight of the
mower deck after you install the plate.
G448681
C. Install the washer and hairpin cotter.
D. Repeat the adjustment for the other side of the machine.
E. Check the side-to-side level and adjust it again until the measurements are correct.
6. Adjust the front-to-rear level as necessary:
Maintenance: Mower-Deck Maintenance Page 5–12 3463-565 A
