Leveling the Mower Deck (continued)
Leveling the Mower Deck
1. Set the anti-scalp rollers to the top holes or remove them completely for this procedure.
2. Set the height-of-cut lever to the 76 mm (3 inch) position.
3. Place 2 blocks, each having a thickness of 6.6 cm (2-5/8 inches), under each side of the
front edge of the deck.
IMPORTANT
Do not place the blocks under the anti-scalp roller brackets.

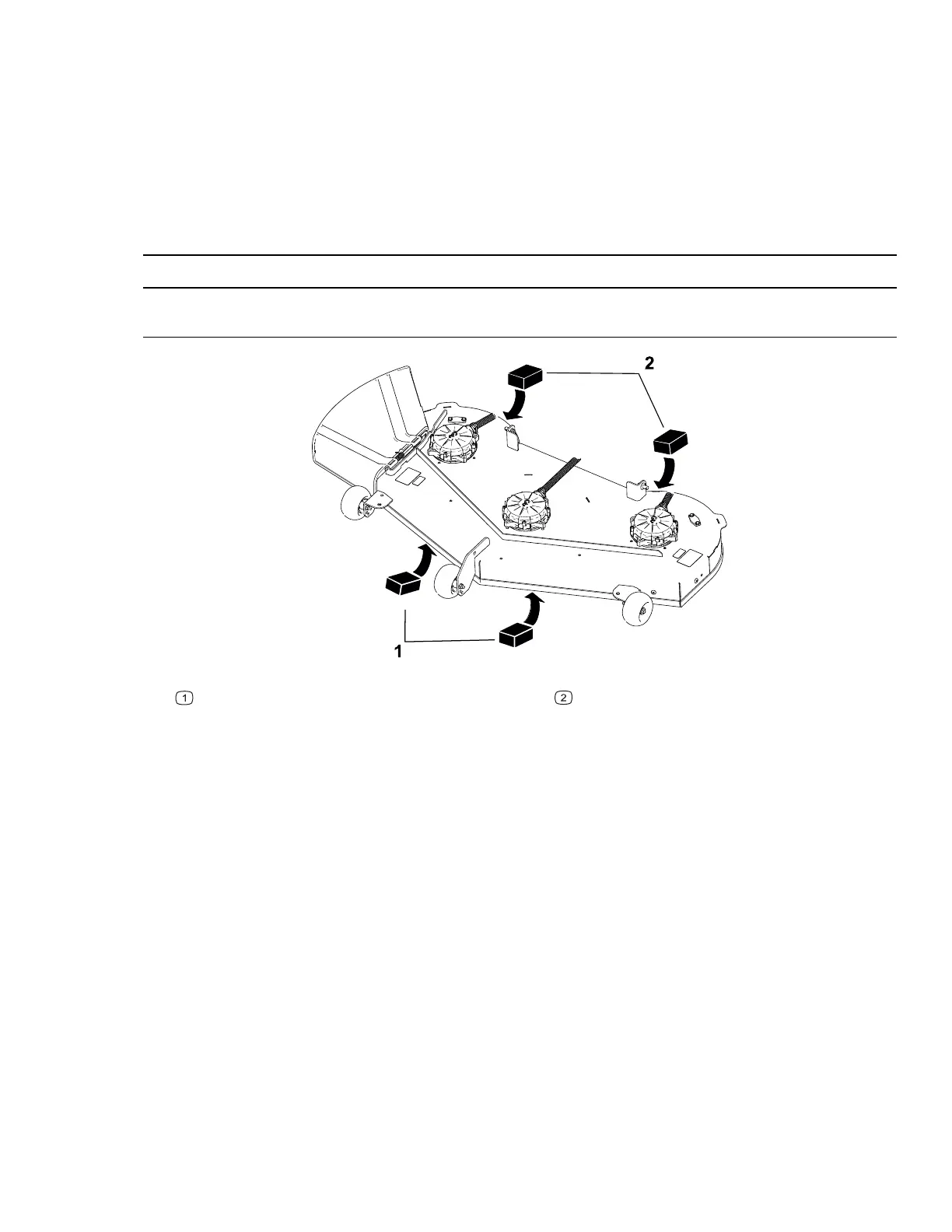

G455311
Block—6.6 cm (2-5/8 inches)
Block—7.3 cm (2-7/8 inches)
4. Place 2 blocks, each having a thickness of 7.3 cm (2-7/8 inches), under each side of the
rear edge of the cutting deck skirt.
5. Adjust the side-to-side level as necessary:
A. Remove the hairpin cotter and washer from the left lower lift-arm pin.
